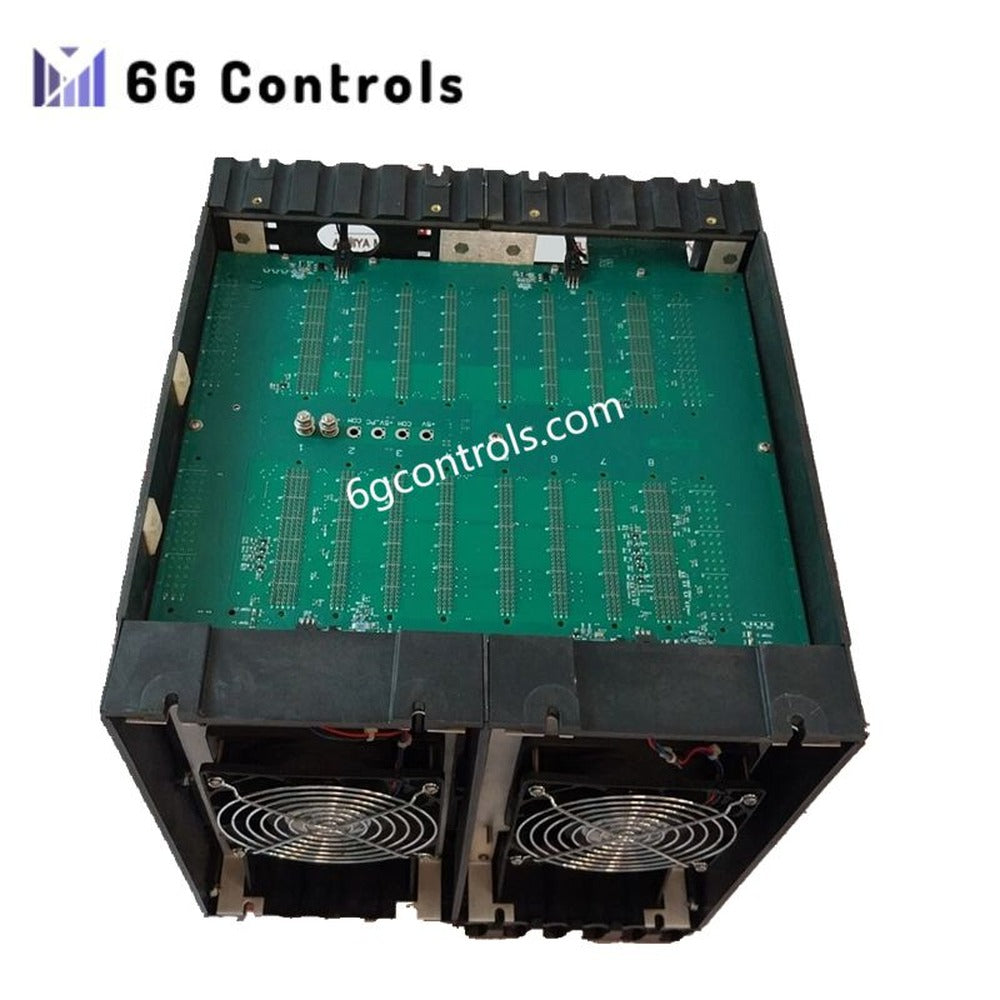

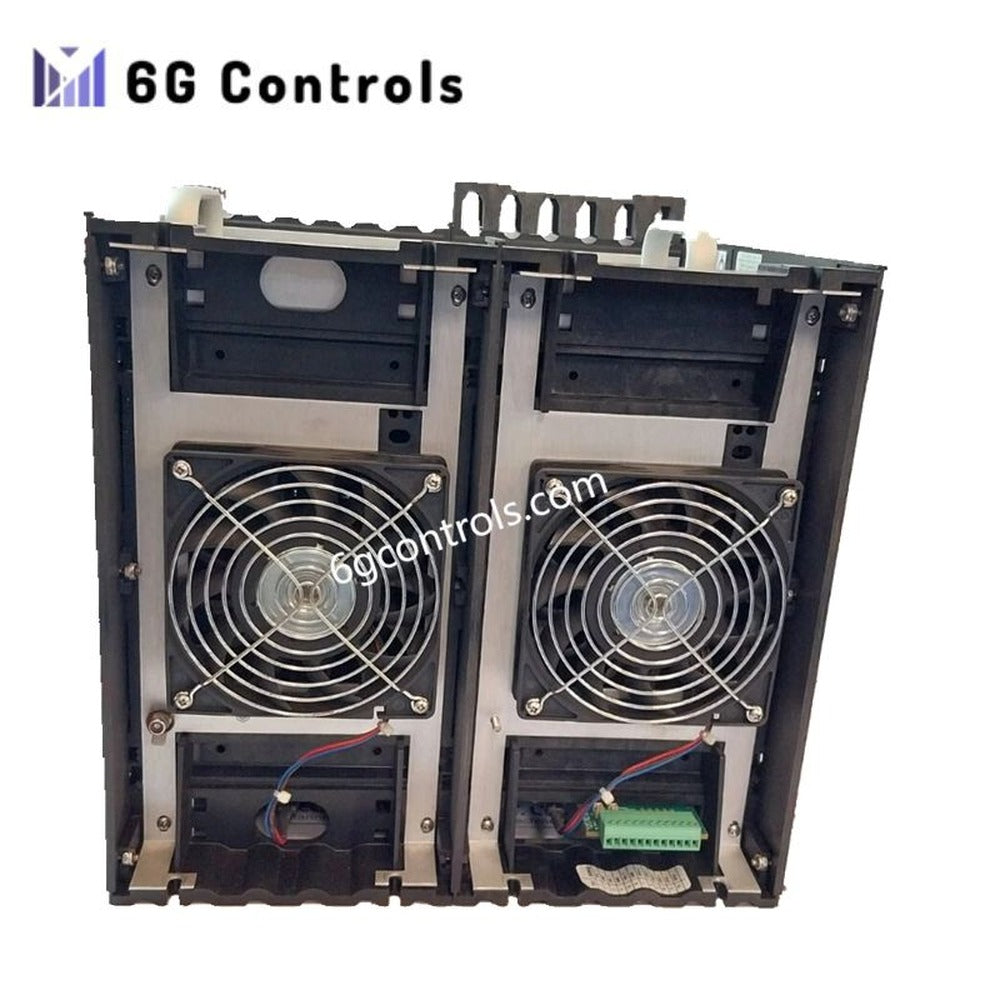

Woodward 5466-1002 MicroNet-Plus Power Supply Module

Product Overview

The Woodward 5466-1002 MicroNet Power Supply Module delivers stable, regulated power for mission-critical MicroNet-Plus control systems. It supports continuous operation of controllers and I/O modules in demanding turbine, engine, and generator environments. Moreover, this module integrates seamlessly into MicroNet chassis architectures, supporting both simplex and redundant system designs. Engineers rely on this power supply to maintain predictable performance, even during electrical disturbances or harsh ambient conditions.

Key Features and Benefits

The 5466-1002 provides consistent DC output, ensuring reliable communication between MicroNet CPUs and distributed I/O modules. In addition, the two-slot design optimizes chassis space while simplifying system layout and maintenance planning. The industrial-grade construction withstands vibration, temperature variation, and electrical noise common in power generation facilities. Therefore, operators gain higher system availability and reduced risk of unplanned shutdowns.

Technical Specifications

Specification | Details Model Number | 5466-1002 Product Type | MicroNet-Plus Power Supply Module Slots | 2-slot design Input Voltage | 88–132 VAC, 50/60 Hz; 100–150 VDC Output Function | Regulated DC power for MicroNet controllers and I/O Operating Temperature | 32 to 131 °F (0 to 55 °C) Storage Temperature | −20 °C to +70 °C Humidity | Up to 95% RH, non-condensing Dimensions | 180 × 120 × 60 mm Weight | 48 lbs Chassis Type | Metal, full-size or narrow MicroNet chassis Documentation | Manuals 26728 and 26166v2

Typical Applications and System Integration

This power supply is widely used in steam, gas, and hydro turbine control systems worldwide. For instance, it supports generator load control, synchronization, and protection within MicroNet-Plus architectures. Moreover, oil and gas facilities deploy this module in compressor and engine control panels requiring high reliability. The module integrates directly with MicroNet CPUs, I/O racks, and communication modules without additional converters.

Reliability, Support, and Service

Woodward designs the 5466-1002 for long service life in continuous-duty industrial automation systems. In addition, redundant power configurations improve fault tolerance in safety-critical or high-availability installations. Standard Woodward support resources and documentation simplify commissioning, troubleshooting, and lifecycle maintenance activities.

FAQ

Q1: Is the Woodward 5466-1002 a general-purpose industrial power supply? A1: No, it is specifically engineered for Woodward MicroNet and MicroNet-Plus control system architectures.

Q2: Can this module operate in redundant power configurations? A2: Yes, it supports redundant or simplex configurations depending on system design requirements.

Q3: What industries commonly use the 5466-1002 power supply? A3: It is commonly used in power generation, oil and gas, marine, and heavy industrial automation applications.

Q4: Does the module support both AC and DC input power? A4: Yes, it accepts defined AC and DC input ranges suitable for industrial control panels.
