Woodward 5466-258M Discrete I/O Module for MicroNet Systems

Product Overview

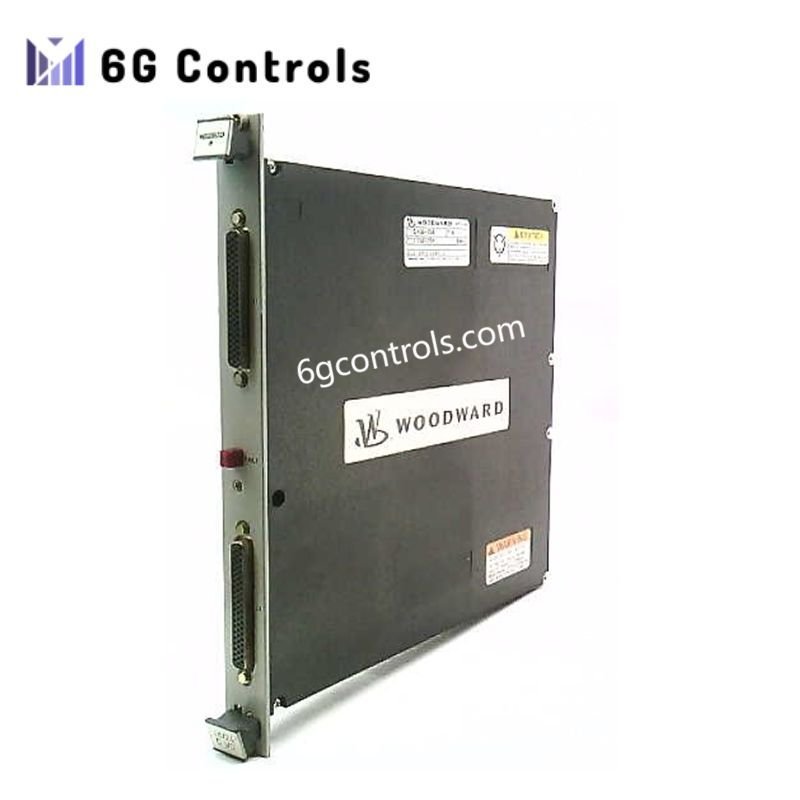

The 5466-258M discrete input/output module from Woodward is engineered to expand digital signal handling within MicroNet™ control platforms. Designed for continuous-duty industrial environments, this module delivers dependable discrete input monitoring and output actuation for turbine, governor, and process control systems.

The module supports both simplex and redundant MicroNet architectures and is suitable for installations where system uptime, electrical robustness, and serviceability are critical. With hot-swap support under live network conditions, the 5466-258M enables maintenance or replacement without forcing a system shutdown, provided network integrity is maintained.

Key Functional Characteristics

The 5466-258M provides high-density discrete I/O capacity within a compact hardware footprint. It is optimized for deterministic control logic and real-time signal processing, ensuring predictable response behavior in demanding control applications.

The design emphasizes long service life, stable operation across industrial voltage ranges, and seamless integration with existing MicroNet nodes. Addressing and configuration flexibility allow the module to be deployed in a wide range of system topologies without hardware modification.

Technical Specifications

General

• Manufacturer: Woodward
• Model: 5466-258M
• Product Category: Discrete I/O Module
• Control Platform Compatibility: Woodward MicroNet™ systems
• System Architecture Support: Simplex and redundant configurations

Power and Electrical

• External Supply Voltage: 18–32 VDC
• Power Input Range: 18–32 VDC
• Typical Power Consumption: 6.5 W at 24 VDC
• Electrical Design: Industrial-grade isolation and noise immunity

Discrete I/O Capacity

• Digital Inputs: 48 channels
• Digital Outputs: 24 channels
• Input/Output Type: Discrete (dry contact or logic-level, system-dependent)
• I/O Behavior: Deterministic response suitable for turbine and governor logic

Mechanical

• Form Factor: Modular MicroNet I/O node
• ​Dimensions: 265 × 120 × 45 mm
• Weight: 1.90 lb
• Installation: Rack-mounted within MicroNet system enclosures

Reliability and Maintenance

The 5466-258M is built for high-availability environments where unplanned downtime is unacceptable. Hot-swap capability allows replacement of a faulty module without powering down the control system, assuming network cabling remains intact. This feature is especially valuable in power generation and continuous-process facilities.

Typical Application Areas

This module is commonly deployed in control systems requiring reliable discrete signal handling, including turbine control panels, governor systems, and auxiliary equipment interfaces. Typical industries include power generation, oil and gas processing, chemical plants, and other energy-intensive facilities using MicroNet architectures.

Frequently Asked Questions

Can the 5466-258M be used in redundant MicroNet systems?

Yes. The module is designed to operate in both simplex and fully redundant MicroNet configurations.

Does the module support live replacement?

Yes. The 5466-258M supports hot-swap replacement when network connections remain intact and system conditions allow.

Are the I/O characteristics identical to other 5466-258 variants?

The 5466-258M is closely related to other 5466-258 series modules. While I/O counts are consistent, firmware and system configuration should always be verified for compatibility.
