Product Overview

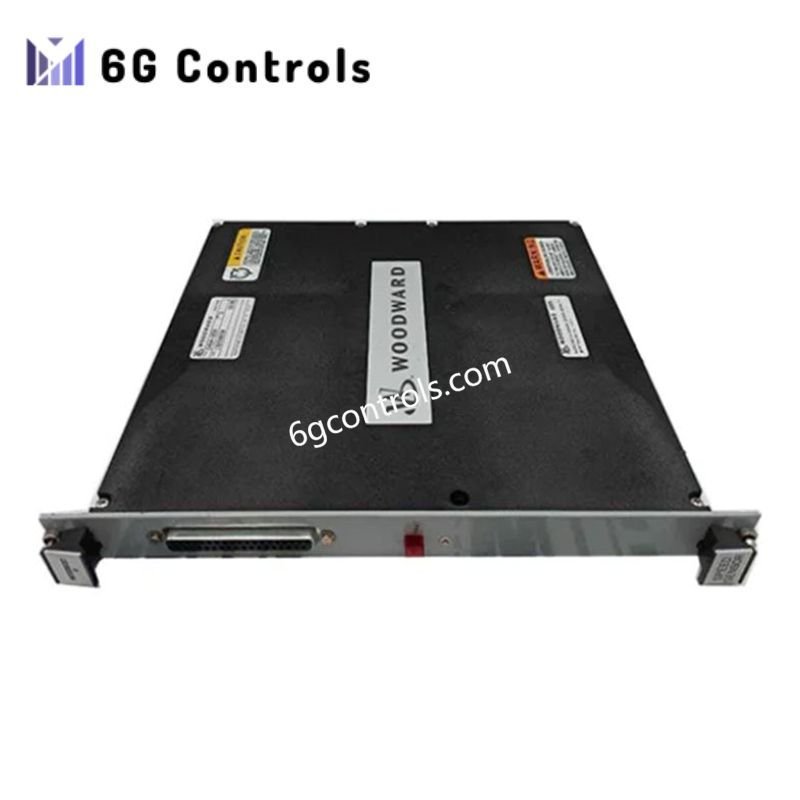

The 5466-328 module is a versatile control I/O component engineered for Woodward MicroNet™ and MicroNet Plus control platforms. Depending on firmware, backplane assignment, and system architecture, this unit can operate as an analog input solution, a mixed analog combination module, or a multi-channel digital output interface.
Designed specifically for mission-critical energy and turbomachinery systems, the 5466-328 supports precise signal acquisition and reliable actuator control under continuous industrial duty. Its flexibility allows system integrators to deploy the same hardware across multiple control strategies while maintaining platform consistency.
System Compatibility
The 5466-328 integrates directly with Woodward MicroNet™ and MicroNet Plus controllers, including redundant and TMR (Triple Modular Redundant) architectures. Dual-port communication support enables deterministic data exchange and fault-tolerant operation in high-availability control systems.
Functional Configurations
The operating role of 5466-328 is determined by system configuration and application requirements.
Analog Input / Analog Combination Configuration
In analog roles, the module is used for high-resolution acquisition of field sensor signals associated with rotating equipment and process control.
Supported functions typically include:
- Precision measurement of pressure, temperature, flow, speed, and position
- Compatibility with TMR voting logic for safety-critical measurements
- Low-noise signal conditioning for turbine and compressor monitoring
- Continuous sampling for real-time control loops
Digital Output Configuration
When deployed as a digital output module, 5466-328 provides discrete control of field devices and protection circuits.
Key characteristics include:
- Sixteen independent relay output channels
- Electromagnetic SPDT (Form C) contacts supporting both normally open and normally closed wiring
- Individual channel isolation to prevent fault propagation
- Direct actuation of solenoids, shutdown relays, alarms, pumps, and interlocks
Electrical Characteristics
Actual values may vary slightly by firmware revision and configuration.
Digital Output Mode
- Output Type: Electromechanical relay
- Contact Form: SPDT (Form C)
- Maximum Load: 2 A at 30 VDC or 250 VAC
- Isolation: Channel-to-channel electrical isolation
Analog Input Mode
- Signal Types: Industrial analog sensor inputs
- Accuracy: High-resolution acquisition suitable for closed-loop control
- Redundancy Support: Full compatibility with MicroNet TMR systems
Mechanical and Environmental Data
- Construction: Industrial-grade electronics for continuous operation
- Operating Environment: Suitable for turbine enclosures and compressor control cabinets
Typical Applications
The 5466-328 is commonly deployed in:
- Gas and steam turbine control systems
- Engine governing for diesel and gas engines
- Compressor and pump automation
- Power generation balance-of-plant control
- Safety shutdown and interlock execution
FAQ
Q: Is the 5466-328 strictly an analog module?
A: No. The hardware supports multiple functional roles. It may operate as an analog input, analog combination, or digital output module depending on system configuration.
Q: Can this module be used in safety-critical systems?
A: Yes. The 5466-328 is designed for use in redundant and TMR MicroNet architectures commonly applied in turbine protection and critical process control.
Q: Does the module support dual-port communication?
A: Yes. Dual-port capability supports deterministic communication and redundancy within MicroNet systems.
