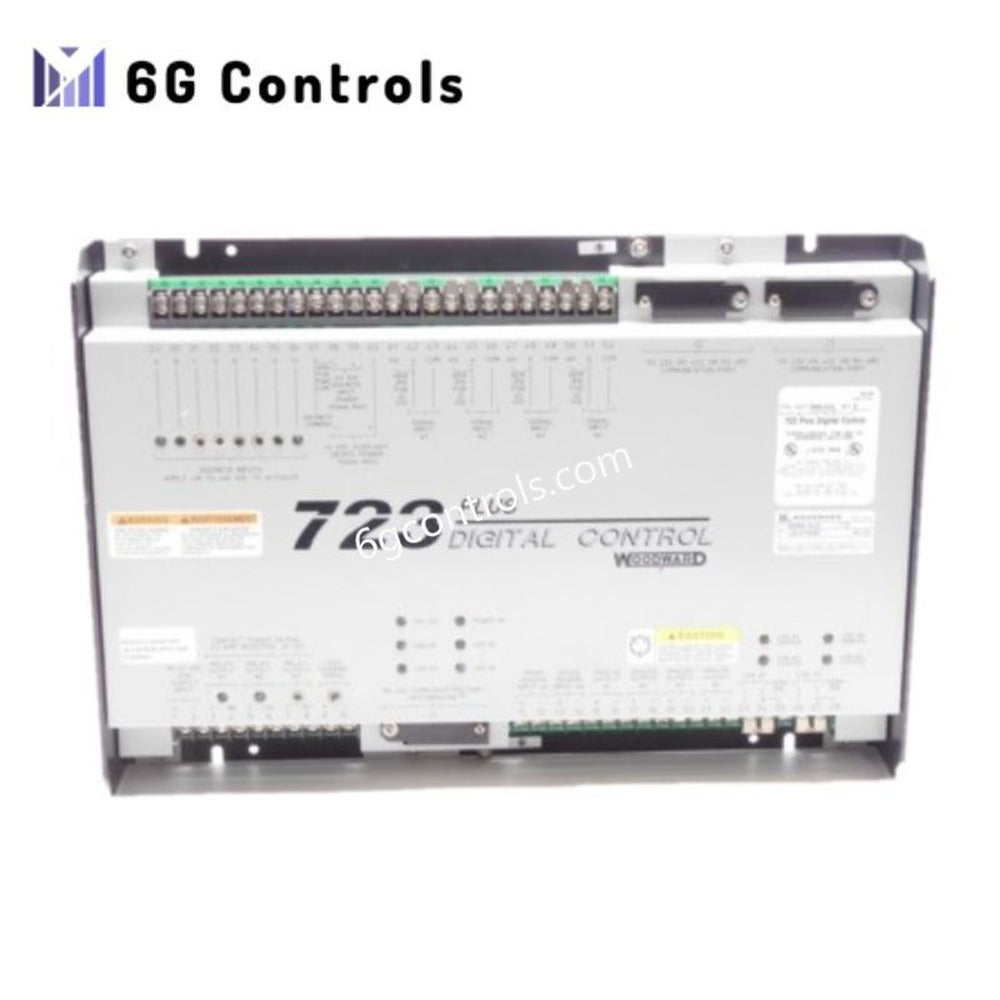

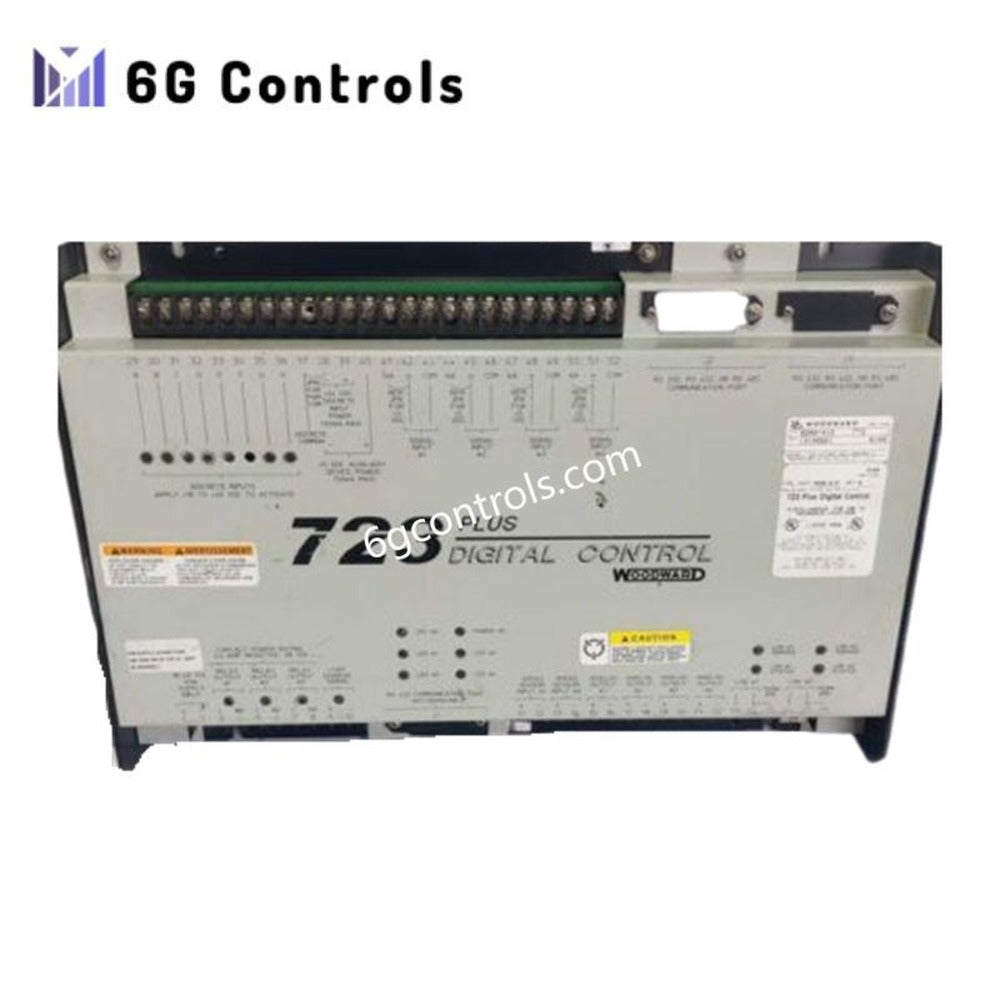

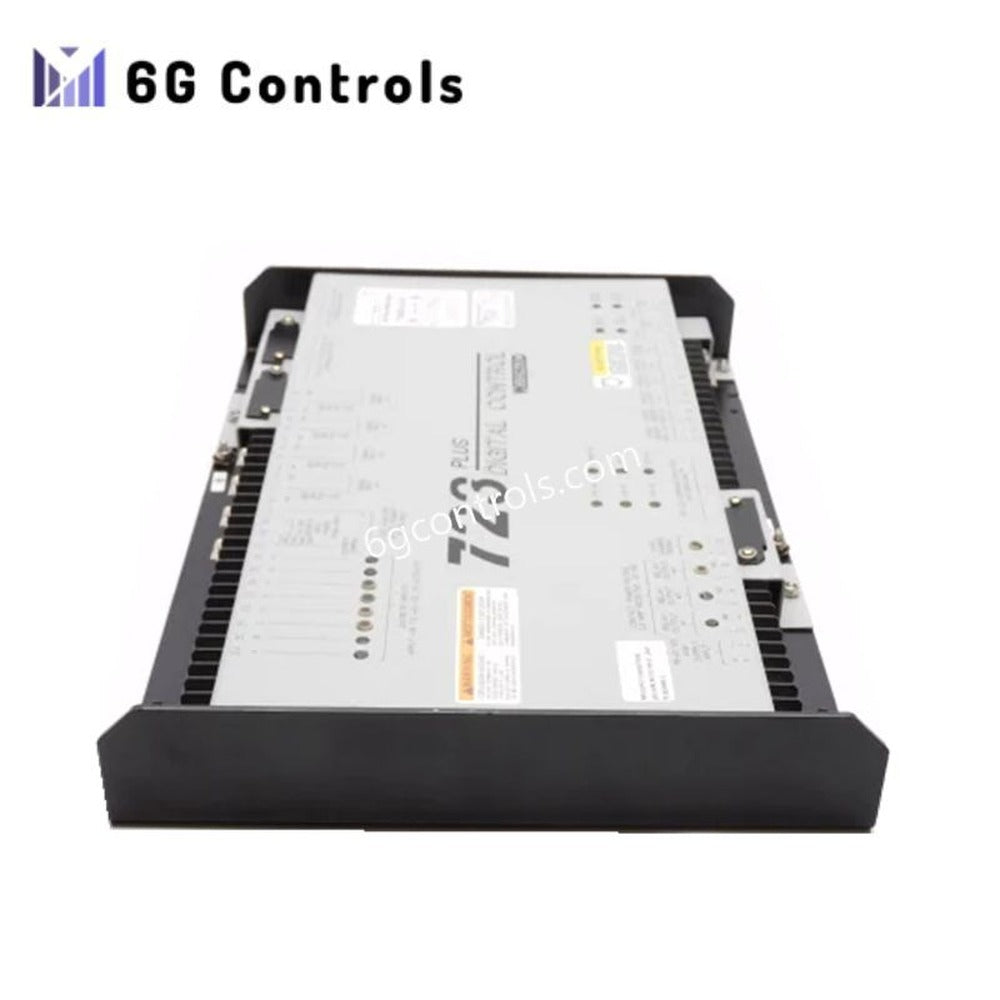

Woodward 8280-412 723PLUS DSLC Digital Load Sharing Controller

Product Overview

The Woodward 8280-412 is a low-voltage digital speed and load sharing controller from the 723PLUS DSLC platform. It is engineered for precise control of reciprocating engines driving generator sets operating in parallel. By combining high-resolution speed regulation with stable real-time load sharing, this controller ensures reliable performance in demanding power generation and marine environments.

Built on a 32-bit microprocessor architecture, the module supports scalable system design through LinkNet expansion nodes, allowing additional discrete I/O and temperature monitoring without redesigning the core control system.

Core Functions

The 8280-412 provides closed-loop digital speed control while coordinating active load distribution between multiple generator sets. It maintains frequency stability during load transients and supports seamless parallel operation across multiple engines.

Designed for low-voltage DC systems, the controller operates reliably in installations using nominal 24 VDC or 32 VDC power supplies.

Technical Specifications

• Manufacturer: Woodward
• Series: 723PLUS DSLC
• Model / Part Number: 8280-412
• Control Architecture: 32-bit microprocessor-based digital control
• Control Functions: Speed regulation and generator load sharing
• Input Supply Range: 18–40 VDC (24 / 32 VDC nominal)
• Communication Interface: RS-232
• Expansion Support: LinkNet nodes for additional I/O and thermocouples
• Terminal Type: Screw-clamp terminals
• Mounting Style: Bulkhead mounting
• Enclosure: Metal housing
• Ambient Operating Temperature: –40 °C to +70 °C
• Storage Temperature: –55 °C to +105 °C
• EMC / EMI Compliance:
  • Lloyd’s Register of Shipping
  • EN 50081-2
  • EN 50082-2
• ​Weight: 2.0 lb

System Integration and Expandability

The DSLC platform allows the 8280-412 to function as a central speed and load control unit while LinkNet expansion modules extend system capability. This modular approach simplifies wiring, reduces panel space, and supports future system upgrades without replacing the primary controller.

Typical Applications

• Paralleled diesel or gas generator sets
• Marine propulsion and auxiliary power systems
• Industrial power plants requiring load balance control
• Reciprocating engine installations with low-voltage control architecture

FAQ

Q: Is the 8280-412 suitable for single-generator systems? A: Yes. While optimized for parallel operation, the controller can also be used in standalone speed control applications.

Q: Does this model support temperature monitoring? A: Yes. Thermocouple inputs can be added through compatible LinkNet expansion nodes.

Q: What voltage systems is this controller designed for? A: It is intended for low-voltage DC systems within an 18–40 VDC operating range.
