Overview

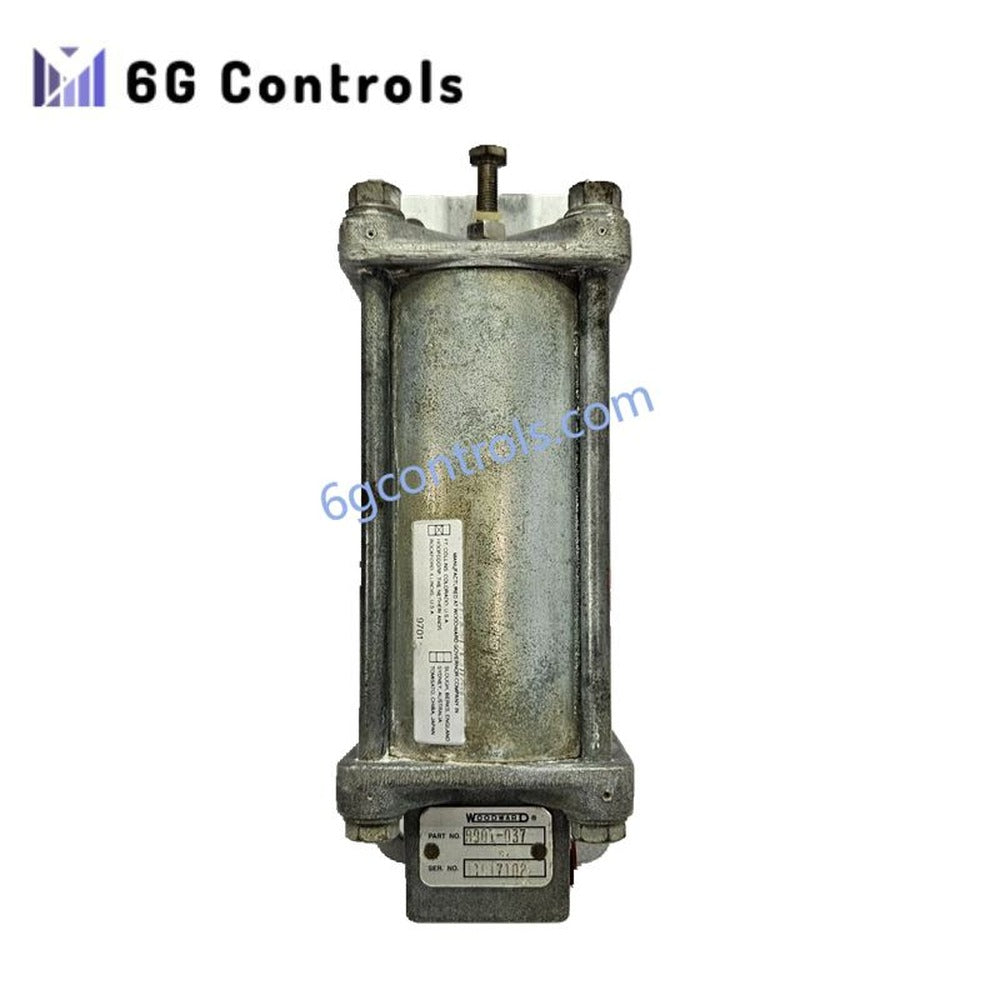

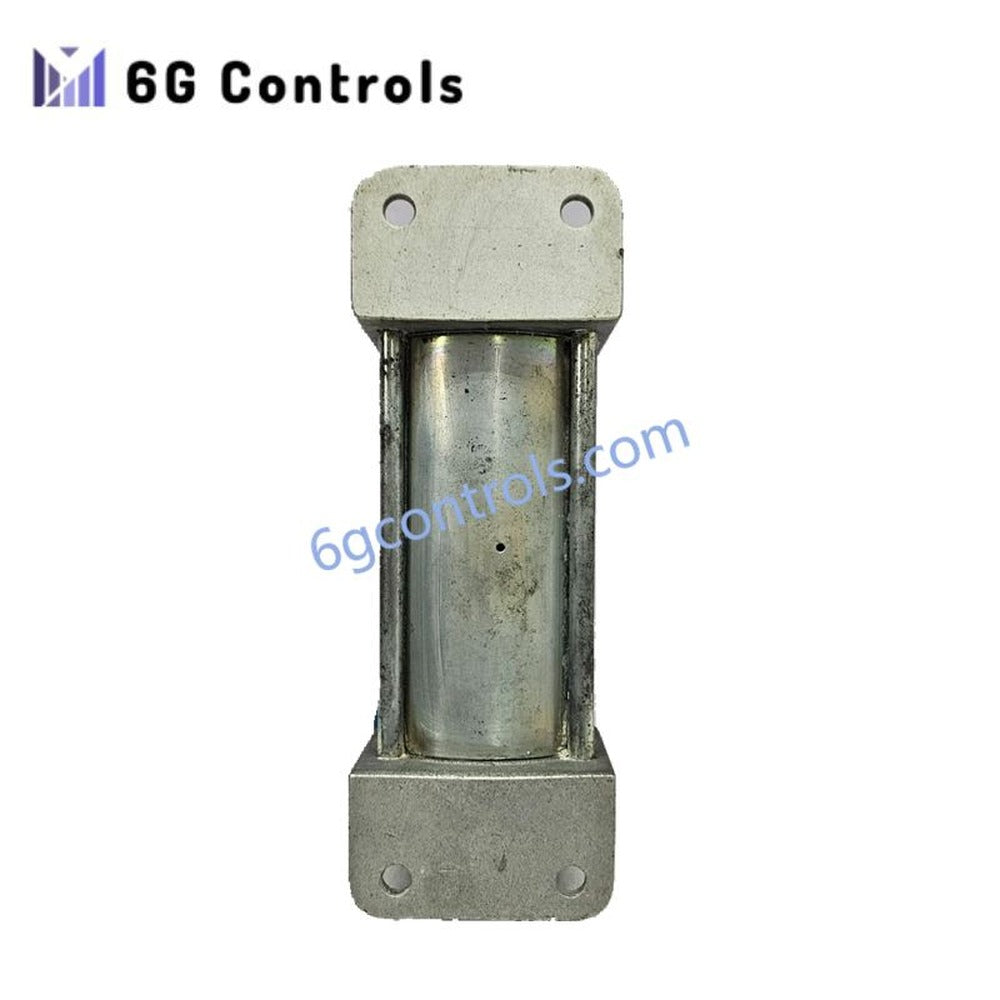

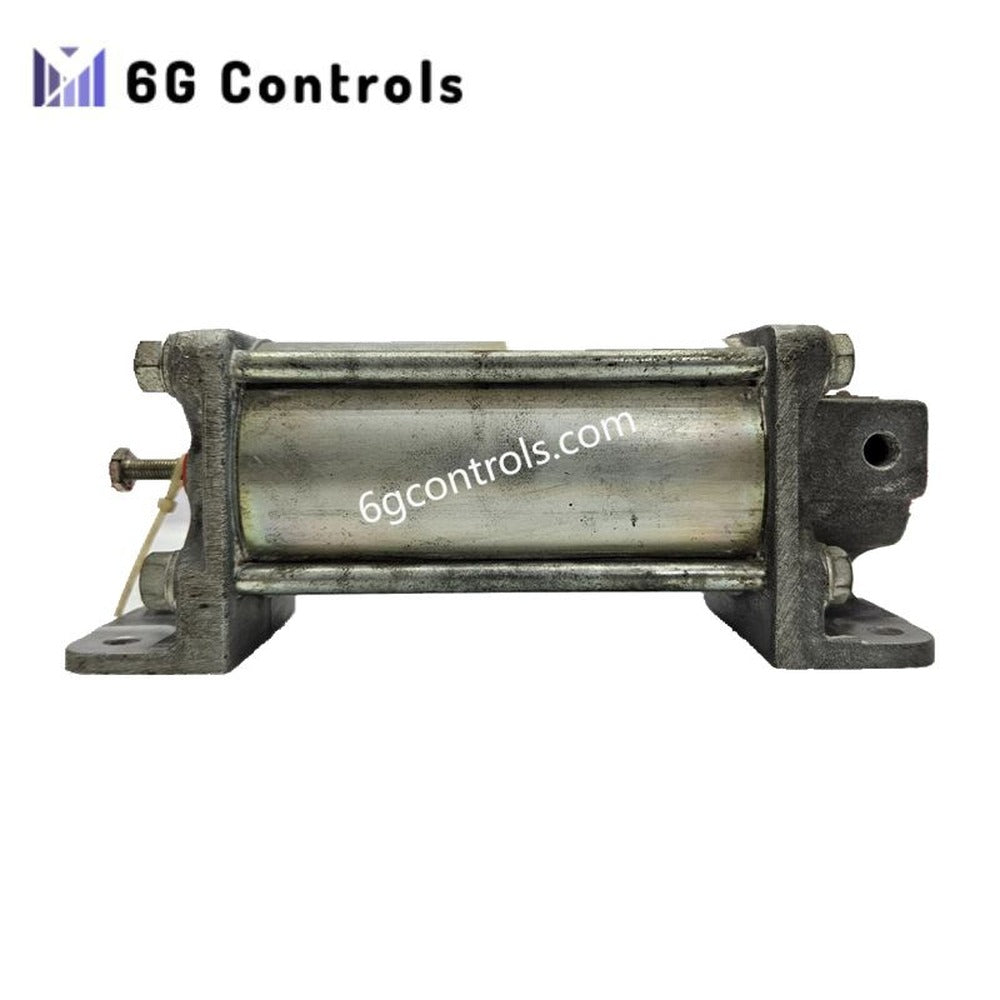

The Woodward 8901-037 hydraulic booster servomotor is a high-performance actuator designed to enhance control force in turbine and engine governing systems. It converts low-power pilot pressure signals from a governor into powerful mechanical motion, enabling precise positioning of fuel racks or turbine control valves.
Engineered for demanding industrial environments, this servomotor is commonly installed in marine propulsion systems, power generation equipment, and oil & gas machinery where reliable and accurate valve actuation is essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 8901-037 |
| Brand | Woodward |
| Product Type | Hydraulic Booster Servomotor |
| Design | Single-Cylinder Hydraulic Actuator |
| Operating Method | Hydraulic signal amplification from governor pilot pressure |
| Control Function | Valve positioning and fuel rack movement |
| Compatible Systems | PG-type governors and Woodward hydraulic governing systems |
| Output Force | High-torque mechanical displacement for heavy valve loads |
| Mounting | Direct linkage to turbine valve or diesel engine fuel rack |
| Construction | Industrial-grade steel housing with precision hydraulic seals |
Key Features
- Hydraulic signal amplification Converts small pilot control signals into high-force mechanical output for valve actuation.
- Accurate positioning capability Ensures stable turbine speed regulation and diesel engine fuel control.
- Robust industrial construction Designed for continuous operation in marine, offshore, and heavy-duty power systems.
- Compatibility with Woodward governing equipment Integrates seamlessly with PG series governors and hydraulic control assemblies.
- Compact actuator footprint Allows installation in limited engine-room or turbine control spaces.
Typical Applications
- Steam and gas turbine valve positioning
- Marine diesel engine fuel rack control
- Generator governor systems
- Oil & gas compressor drive engines
- Industrial power plant mechanical control systems
FAQ
What role does the Woodward 8901-037 servomotor play in a governing system? It acts as a hydraulic power amplifier, translating low-pressure governor signals into mechanical movement capable of controlling heavy turbine valves or fuel racks.
Is the 8901-037 compatible with PG governors? Yes. This servomotor is commonly paired with Woodward PG-type mechanical governors in turbine and diesel engine control systems.
Can this unit operate in harsh industrial environments? Yes. The design includes durable materials and sealed hydraulic components suitable for marine, power generation, and oil & gas installations.
