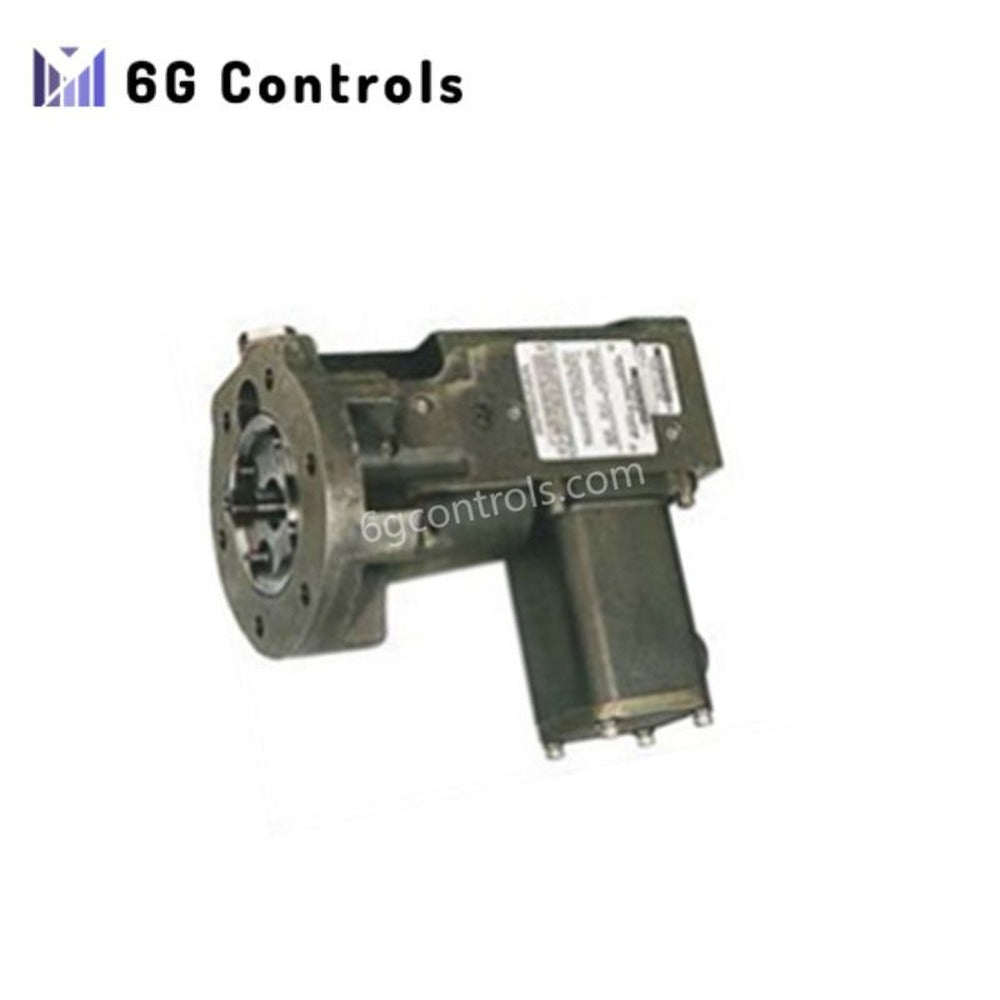

Woodward 9905-658 TM-25LP Linear Actuator Brand New

Overview

The Woodward 9905-658 is a TM-25LP Linear Actuator designed for precise engine and turbine fuel control. It delivers high-force, retracting motion to ensure accurate fuel metering. Its compact, rugged design allows reliable performance in space-constrained and harsh industrial environments. Moreover, it integrates seamlessly with Woodward MicroNet and Atlas control systems, supporting long-term operation in demanding conditions.

Technical Specifications

• Model: TM-25LP
• Type: Linear Actuator
• Function: Controls fuel flow for engines and turbines
• Operating Voltage: 24 VDC
• Coil Configuration: Dual coil
• Motion Type: Retracts when energized
• Feedback: No position sensor or LVDT
• Installation: Panel-mounted
• Electrical Interface: Requires compatible control signal input
• Environmental Resistance: Designed for harsh industrial settings
• Control Compatibility: Works with Woodward MicroNet and Atlas
• Operating Temperature: -40°C to +85°C (-40°F to +185°F)
