Product Description

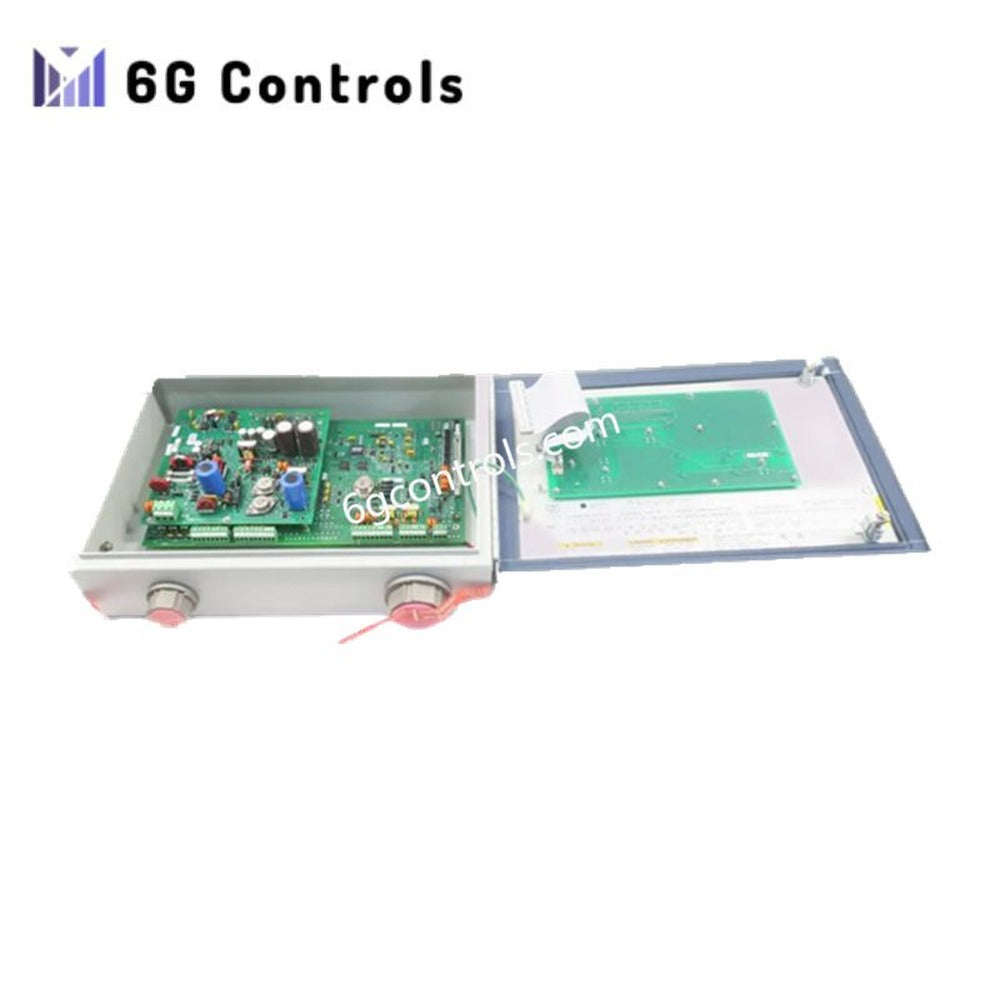

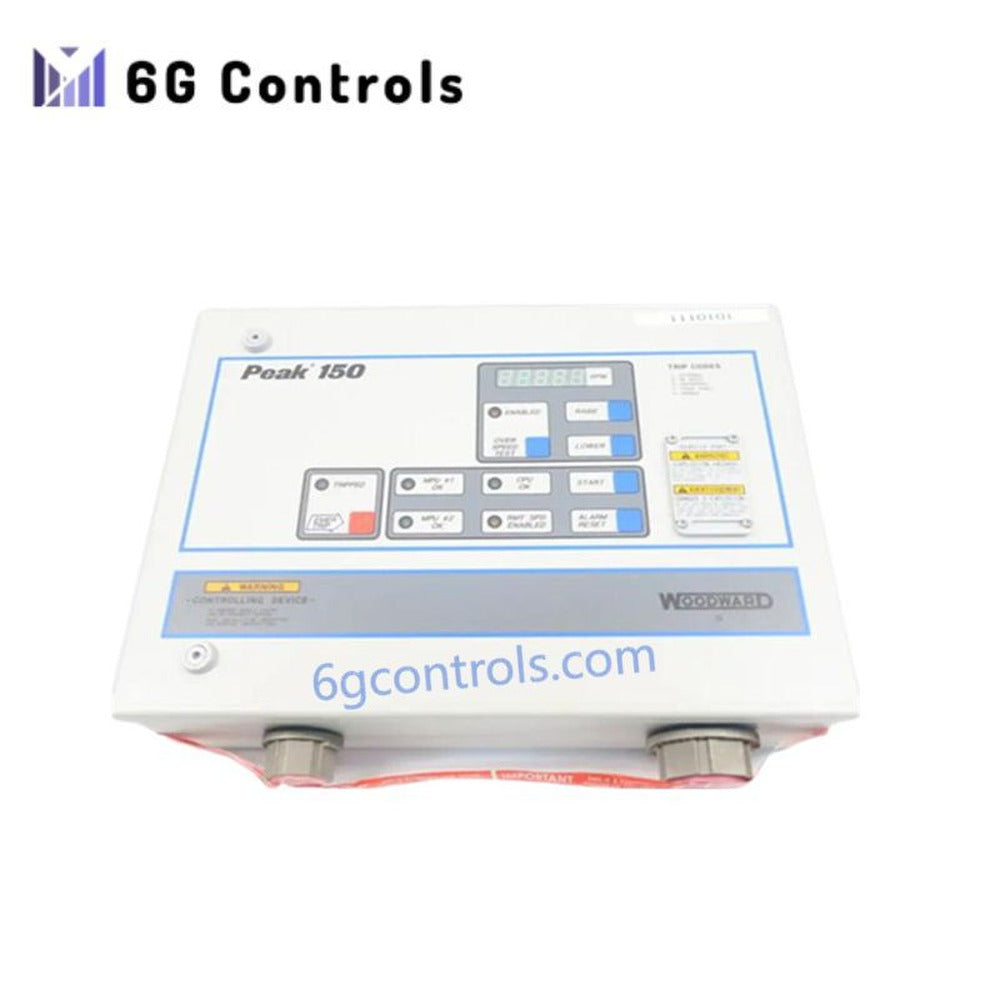

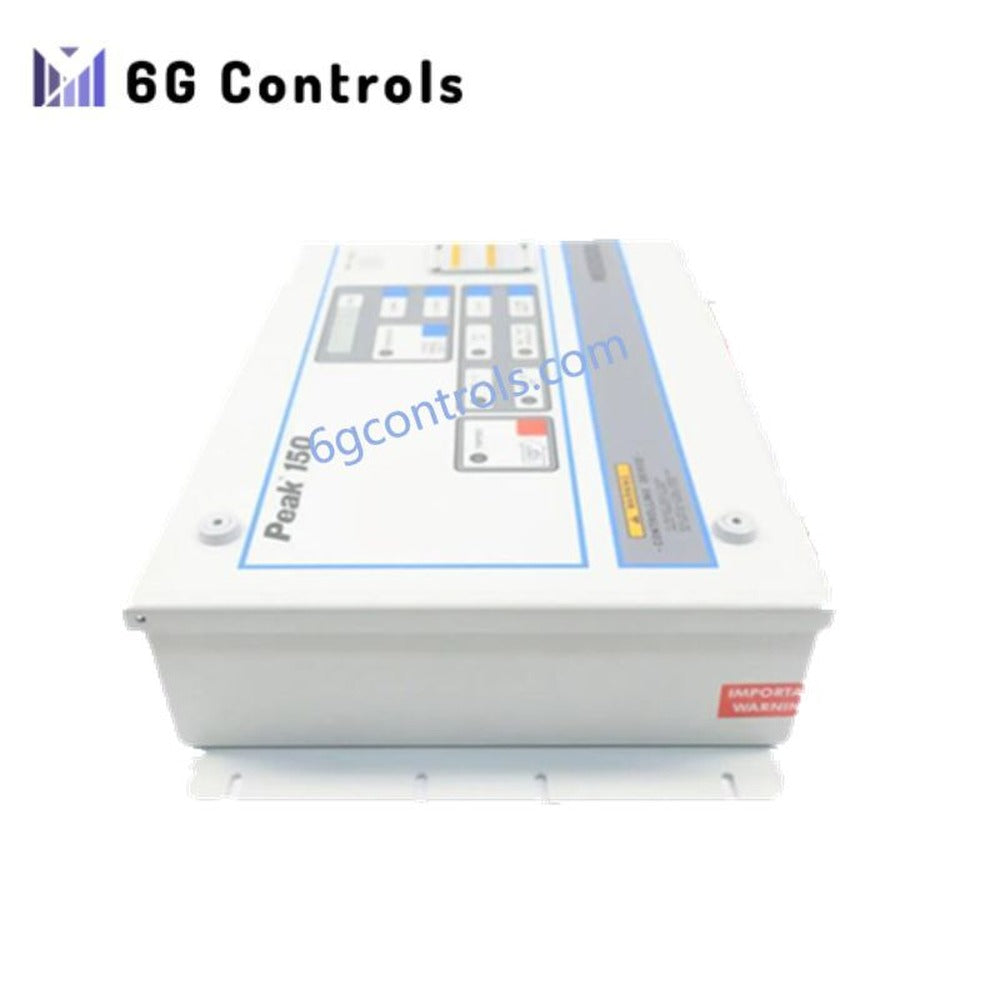

The 9905-864 from Woodward’s Peak 150 control platform is a microprocessor-based turbine control system engineered for reliable speed and load regulation of steam turbines in industrial environments. Designed for both standalone and integrated turbine applications, this controller provides advanced digital control algorithms, flexible signal interfacing, and robust communication capabilities.
The 9905-864 integrates multiple analog and digital interfaces that enable precise turbine speed management, automatic load control, and seamless integration with plant control architectures. Its sealed NEMA 4X enclosure ensures dependable performance in demanding operating environments such as power generation facilities, petrochemical plants, and heavy industrial installations.
Built for field durability, the controller supports AC or DC supply inputs and provides configurable output signals for turbine monitoring and supervisory systems.
Key Functional Characteristics
The controller supports sophisticated turbine regulation and system protection functions, including:
- Digital speed governing for steam turbine applications
- Automatic load sharing and load control in generator systems
- Idle-to-rated speed switching with programmable ramp profiles
- Soft load transfer for smooth turbine synchronization
- Overspeed and load rejection management
- Torque limiting and MAP-based limiting functions
- Adaptive speed-sensing algorithms for improved stability
- Built-in data logging for operational diagnostics and maintenance analysis
These capabilities allow the 9905-864 controller to manage turbine operation with high precision while maintaining system stability during transient conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Model | 9905-864 |
| Product Series | Peak 150 Digital Control |
| Device Type | Digital Steam Turbine Controller |
| Power Supply | Universal AC/DC input |
| Analog Input Range | 4–20 mA or 1–5 VDC configurable |
| Speed Feedback Output | Scalable 4–20 mA or 0–1 mA |
| PWM Output | Low-current PWM signal for synchronizer or bias control |
| Communication Interfaces | RS-232, RS-422 serial communications |
| Protocol Support | Optional Modbus serial communication |
| Enclosure Protection | NEMA 4X sealed industrial enclosure |
Environmental Specifications
| Parameter | Range |
|---|---|
| Operating Temperature | –25°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Environmental Protection | Corrosion-resistant outdoor enclosure |
The environmental ratings allow reliable deployment in harsh industrial environments including turbine halls, outdoor generator stations, and process facilities.
Typical Industrial Applications
The 9905-864 turbine controller is commonly implemented in systems requiring precise speed regulation and load control, including:
- Steam turbine generator control systems
- Industrial turbine drives for compressors and pumps
- Gas and diesel engine governor systems
- Cogeneration and power plant turbine installations
- Mechanical drive turbine applications in petrochemical plants
Its flexibility makes it suitable for both new turbine installations and modernization upgrades of existing turbine control panels.
FAQ
What control functions does the 9905-864 provide? The controller supports turbine speed regulation, load sharing, synchronization assistance, ramp control, load rejection handling, and protective limiting functions.
Can the controller communicate with plant control systems? Yes. The controller supports RS-232 and RS-422 serial communication, and many installations integrate it using the Modbus protocol for supervisory monitoring.
Is the unit suitable for outdoor turbine installations? Yes. The NEMA 4X enclosure protects against moisture, dust, and corrosion, allowing deployment in outdoor or harsh industrial environments.
