Overview

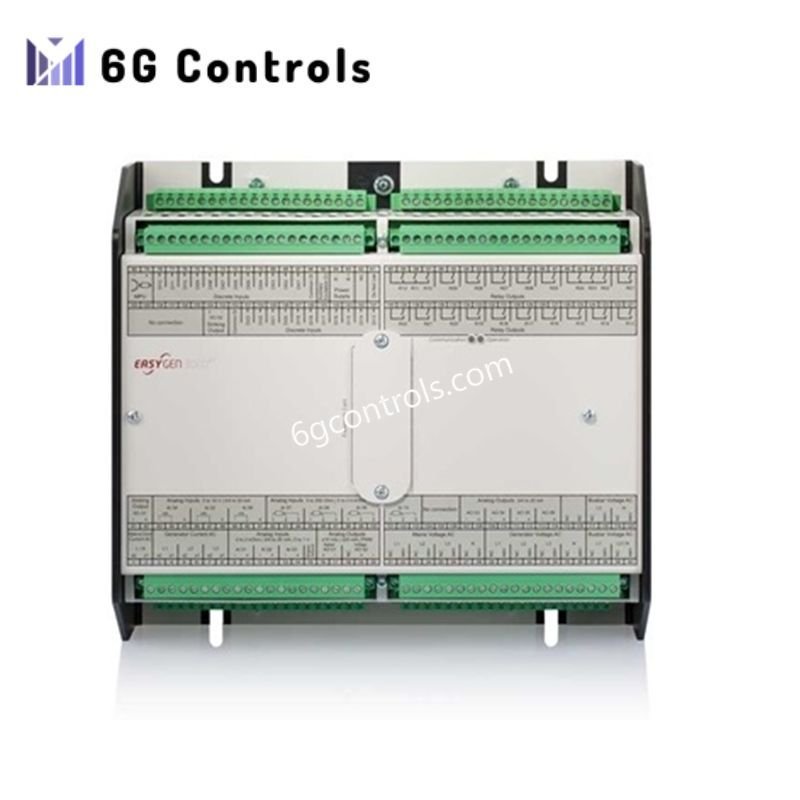

The Woodward easYgen-3400XT-P2 (8440-2087) is an advanced three-phase generator control unit, engineered for industrial and distributed energy systems. It integrates engine management, generator protection, and synchronization into a single device suitable for multi-unit networks and complex power applications.
Technical Specifications
| Feature | Specification |
|---|---|
| Dimensions | 282 × 216 × 96 mm |
| Electrical Phase | 3-phase (P2 version) |
| Measuring Frequency | 50/60 Hz (40–85 Hz range) |
| Power Supply | 12/24 VDC (operating range 8–40 VDC) |
| Voltage Setting Range | 50–650,000 VAC |
| Relay Outputs | Fully Isolated |
| Indicators | COMMS LED (green/red), RUN LED (green/red) |
| Display | No built-in display; requires remote panel |
| Operating Temperature | –40 °C to +70 °C |
| Supported Languages | English, German, Spanish, French, Italian, Portuguese, Japanese, Chinese, Russian, Turkish, Polish, Slovakian, Finnish, Swedish |
| Housing | Rugged sheet metal |
Key Features
- Multi-Unit Network: Capable of controlling up to 32 gensets with automatic sequencing.
- Flexible Operations: Supports stand-by, AMF, peak shaving, cogeneration, and distributed generation scenarios.
- Integrated Synchronization: Combines generator protection and engine control with precise synchronization for complex grids.
- Harsh Environment Ready: Wide temperature range ensures reliable operation in extreme conditions.
- Global Deployment: Multi-lingual interface simplifies international installation and maintenance.
Applications
Ideal for industrial plants, utility-scale projects, microgrids, and distributed energy systems requiring precise generator management, load sharing, and multi-unit synchronization.
FAQ
Q: Can this unit work with a single generator?
A: Yes, though it is optimized for multi-unit operations; single-generator setups can be controlled using the P2 version.
Q: Does it include a display?
A: No, configuration and monitoring require an external remote panel.
Q: How does it compare to easYgen-3500XT-P1?
A: While both support multi-unit control, the 3400XT-P2 focuses on three-phase industrial networks, offering broad voltage range and extended environmental tolerance.
