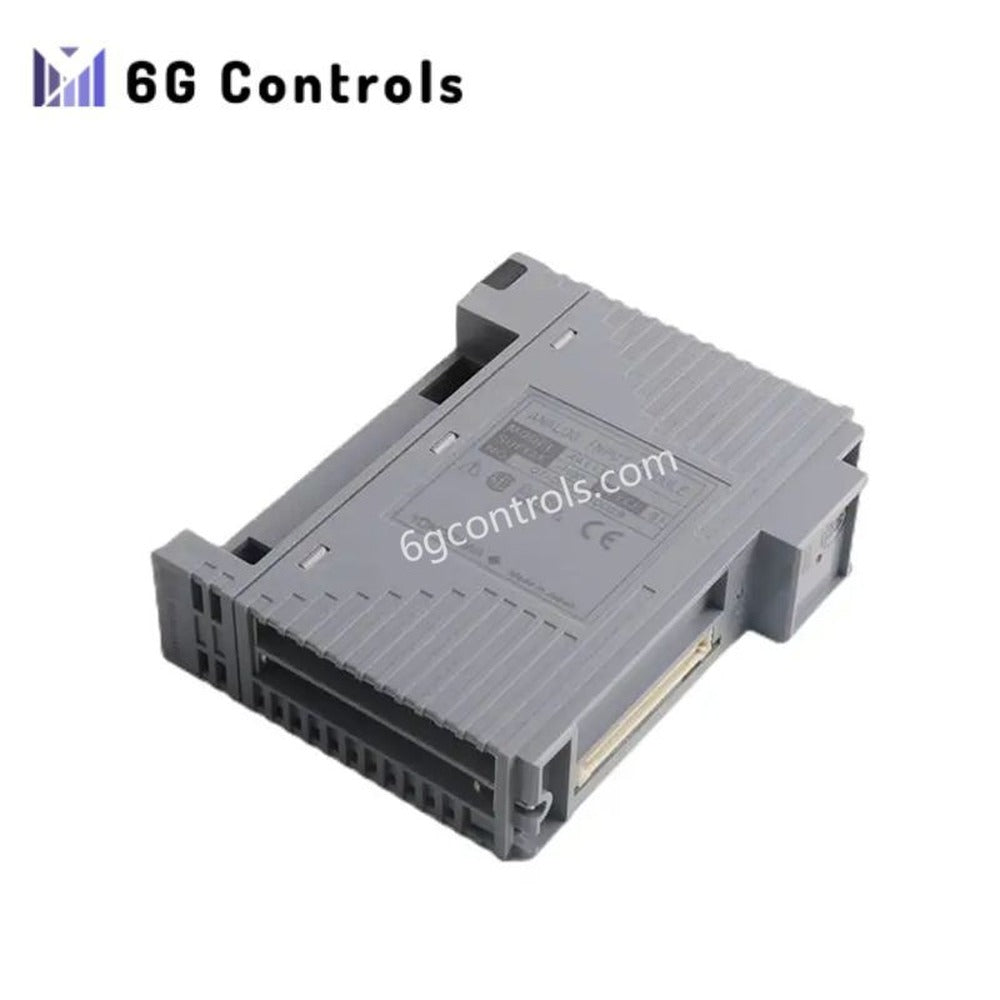

Yokogawa AAI135-H50/13S00 8-Channel Isolated Analog Input Module

11 in stock

Manufacturer: Yokogawa
Product No.: AAI135-H50/13S00
Product Type: Isolated Analog Input Module
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.3 kg
Dimensions: 129.5 mm × 130 mm × 32.8 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Overview

The AAI135-H50/13S00 is an 8-channel isolated analog input module. It supports 4–20 mA current signals and uses HART communication. This module integrates easily with CENTUM VP and ProSafe-RS control systems. Each channel provides electrical isolation to ensure high accuracy and noise immunity. The /13S00 suffix means it includes a pressure clamp terminal block for isolated analog signals. The design suits demanding industrial environments.

Technical Specifications

Model Number: AAI135-H50/13S00
Type: Analog Input Module
Input Channels: 8 isolated channels
Signal Type: 4–20 mA current input
Allowable Input Current: Up to 25 mA
Input Resistance:
- Power ON: 290 Ω (at 20 mA) to 450 Ω (at 4 mA)
- Power OFF: ≥ 500 kΩ
Accuracy: ±16 µA (0.05 to 23 mA range)
Temperature Drift: ±16 µA per 10°C
Electrical Isolation: 500 V AC for 1 minute between channels and system
Transmitter Power Supply:
- ≥ 15.0 V at 20 mA
- ≤ 29.3 V at 0 mA
Data Update Period: 10 ms
Communication Protocol: HART (digital)
Terminal Block: Pressure clamp for isolated analog signals
Explosion Protection: None (suffix “5” means no protection)
Maximum Current Consumption:
- 360 mA at 5 V DC
- 450 mA at 24 V DC
Weight: 0.3 kg
