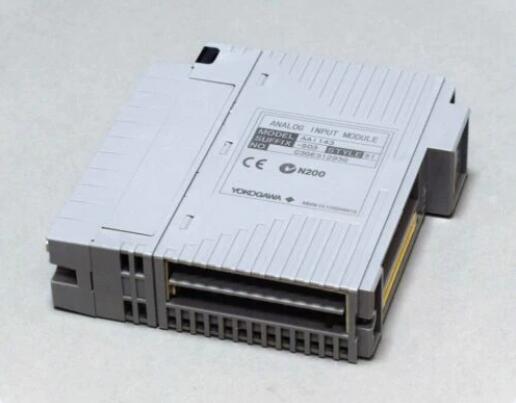

Yokogawa AAI143-S03 Analog Input Module Brand New In Stock

17 in stock

Manufacturer: Yokogawa
Product No.: AAI143-S03
Country of origin: Japan
Product Type: Analog input module
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.3 kg
Dimensions: 100 mm x 70 mm x 25 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Overview

The Yokogawa AAI143-S03 is a 16-channel, isolated analog input module that provides 4 to 20 mA current inputs. It can be used in dual-redundant configuration for increased reliability. The module features high accuracy (±16 μA), fast data update rate (10 ms), and multiple communication options (pressure clamp terminal, MIL connector cable, dedicated cable). It is also compatible with HART communication.

Features

16-channel, isolated analog input
4 to 20 mA current inputs
High accuracy (±16 μA)
Fast data update rate (10 ms)
Multiple communication options (pressure clamp terminal, MIL connector cable, dedicated cable)
HART communication compatible

Technical Specifications

Number of input channels: 16
Input signal: 4 to 20 mA
Allowable input current: 24 mA
Input resistance: Power ON 270 Ω (20 mA) to 350 Ω (4 mA)
Accuracy: ±16 μA
Data update period: 10 ms
Transmitter power supply: 19.0 V or higher (at 20 mA) 25.5 V or less (at 0 mA) (output current limit: 25 mA)
Setting of 2-wire or 4-wire transmitter: For each channel by setting pin
Drift due to ambient temperature change: ±16 μA/10 C
Maximum current consumption: 230 mA (5 V DC), 540 mA (24 V DC)
Weight: 0.3 kg
