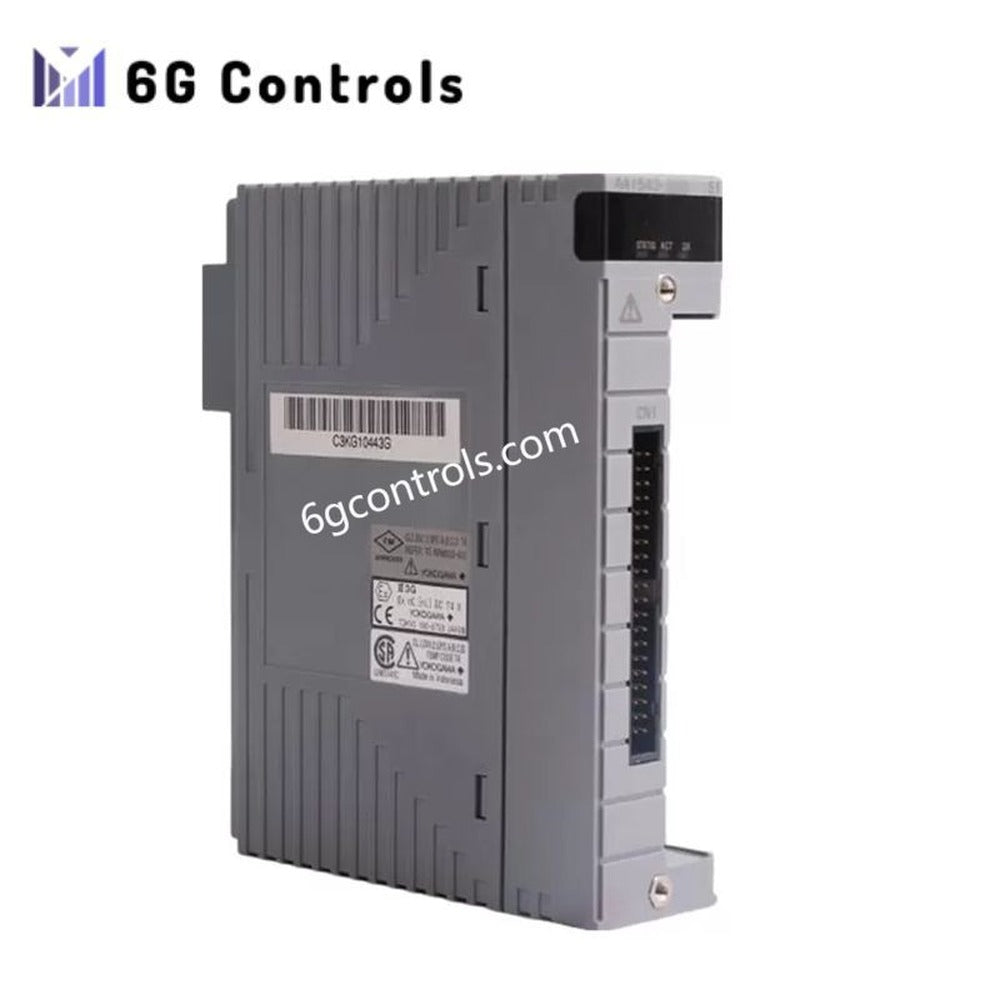

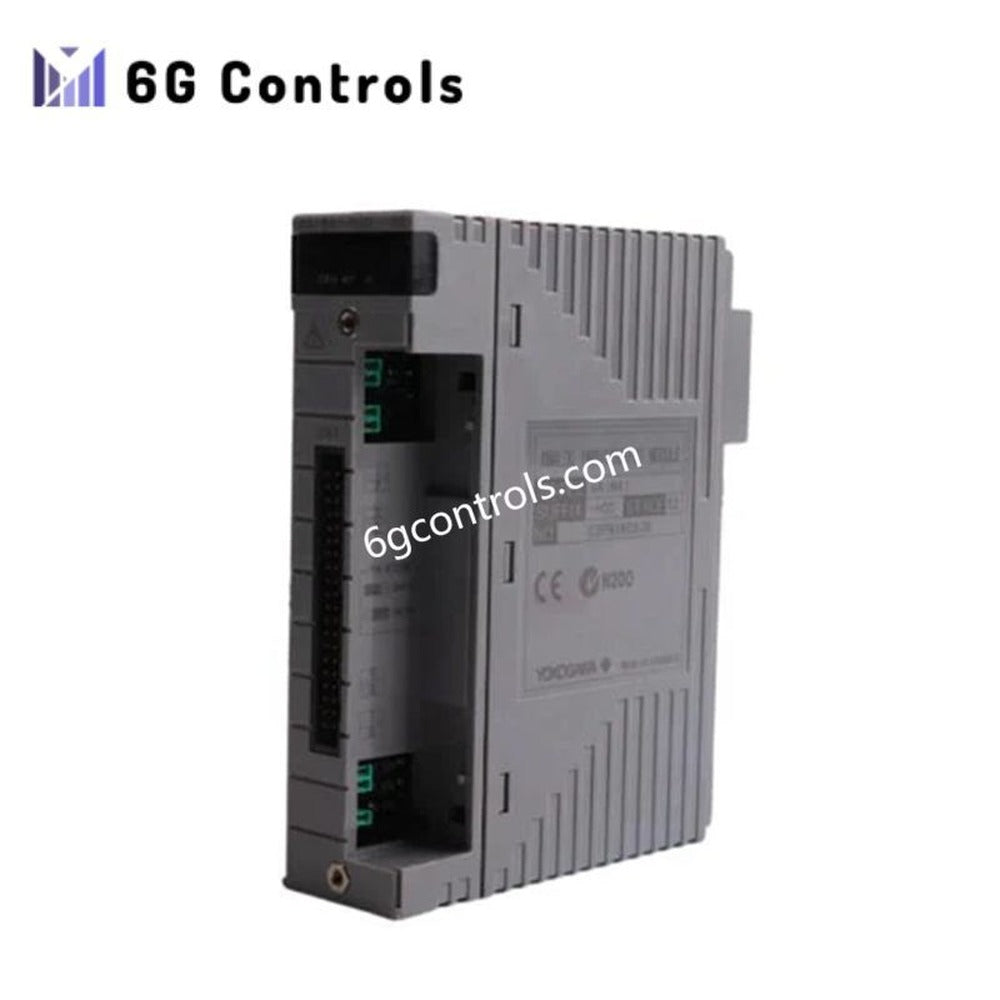

Yokogawa AAI543-H00/A4S00 Isolated Analog Output Module

Product Overview

The AAI543-H00/A4S00 is a high-density analog output module developed for Yokogawa CENTUM distributed control systems. It delivers precise and stable 4–20 mA current signals from field control stations to final control elements, supporting consistent actuator and valve performance in continuous process operations. Channel isolation and redundant-capable architecture make this module suitable for critical control loops where availability and signal integrity are mandatory.

Functional Description

Designed for current-loop control applications, the AAI543-H00/A4S00 converts internal control data into analog outputs with predictable linearity and minimal drift. Each output channel is electrically isolated to reduce interference from grounding differences and electrical noise, improving long-term stability across complex plant wiring.

The module supports redundant system configurations when deployed within compatible CENTUM architectures, helping maintain output continuity during component or path failures.

Technical Specifications

• Model and option code: AAI543-H00/A4S00
• Module function: Analog output, isolated
• Output signal type: 4 to 20 mA DC
• Number of output channels: 16 isolated channels
• Channel isolation: Output-to-output and output-to-system isolation
• Output stability: Optimized for continuous closed-loop control
• Dimensions: 107.5 × 32.8 × 130 mm
• Weight: 0.4 kg
• Installation format: Rack-mounted I/O module

System Compatibility

The AAI543-H00/A4S00 integrates directly with Yokogawa control platforms, including:

• ESB bus node units ANB10S and ANB10D
• Optical ESB bus node units ANB11S and ANB11D
• ER bus node units ANR10S and ANR10D
• Field control units AFV30, AFV40, and AFF50 series

This compatibility ensures consistent behavior across both conventional and optical bus configurations.

Application Scenarios

Typical uses of the AAI543-H00/A4S00 include:

• Analog control of valves, dampers, and positioners
• Current-loop output to variable-speed drives and actuators
• Redundant output paths in safety-critical process units
• Continuous control in oil and gas, chemical, power, and utilities sectors

Frequently Asked Questions

Does this module provide electrical isolation between outputs? Yes. All output channels are isolated to minimize noise coupling and improve loop reliability.

Is the module suitable for redundant control systems? Yes. When installed in compatible CENTUM configurations, it supports dual-redundant operation.

What type of field devices can be driven? Any device accepting a standard 4–20 mA control signal, including control valves, actuators, and I/P converters.
