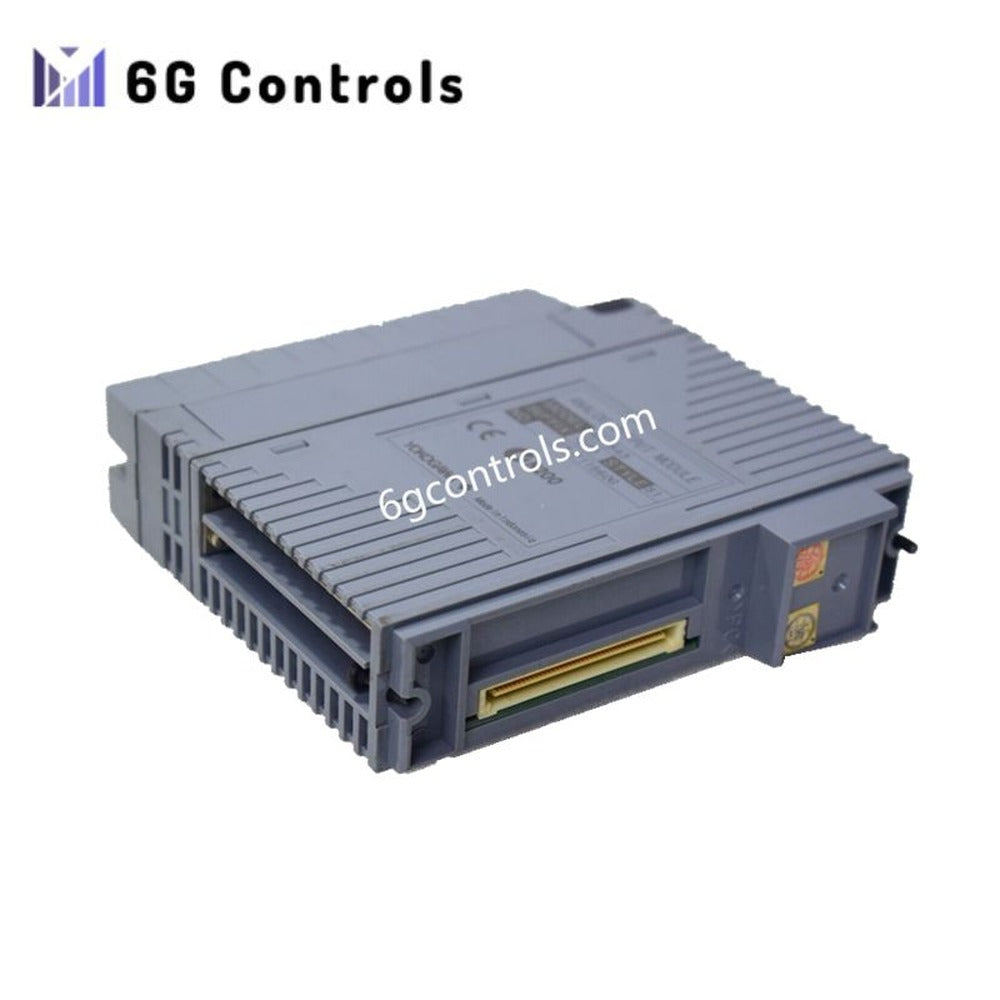

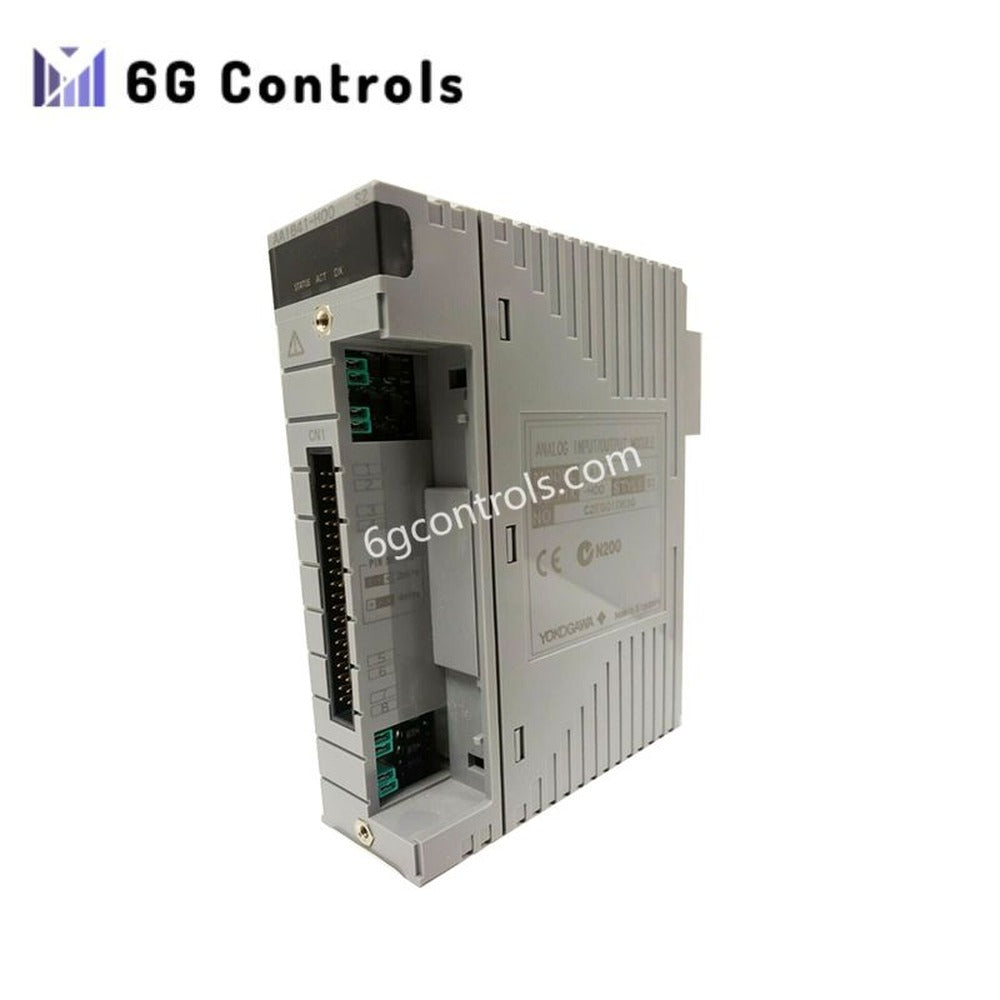

Yokogawa AAI841-H00/CCC01 Analog Input/Output Module

Overview

The Yokogawa AAI841-H00/CCC01 is a high-density, non-isolated analog I/O module. It fits industrial automation and control systems, including the CENTUM series DCS. The module provides reliable, precise signal processing for both input and output channels. It supports HART digital communication, ensuring integration with modern field instruments. The compact design and clamp terminal block simplify installation in AIP501 or AIP511 I/O units.

Technical Specifications

• Model Number: AAI841-H00/CCC01
• Function: Analog Input/Output Module
• Number of I/O Channels: 8 input / 8 output, non-isolated
• Input Signal Types: 4–20 mA, 0–20 mA, 0–5 V, 1–5 V
• Output Signal Type: 4–20 mA
• Allowable Input Current/Voltage: 25 mA
• Resolution: 16-bit
• Input Accuracy: ±16 µA
• Overall Accuracy: ±0.1% of span
• Isolation: Channel-to-channel and channel-to-ground
• HART Communication: Supported via H00 suffix
• Terminal Type: Compact clamp terminal block (CCC01)
• Mounting: Installed in AIP501 or AIP511 I/O units
• Operating Temperature: –20°C to +60°C
• Power Consumption: 2.5 W
• Weight: 0.3 kg
