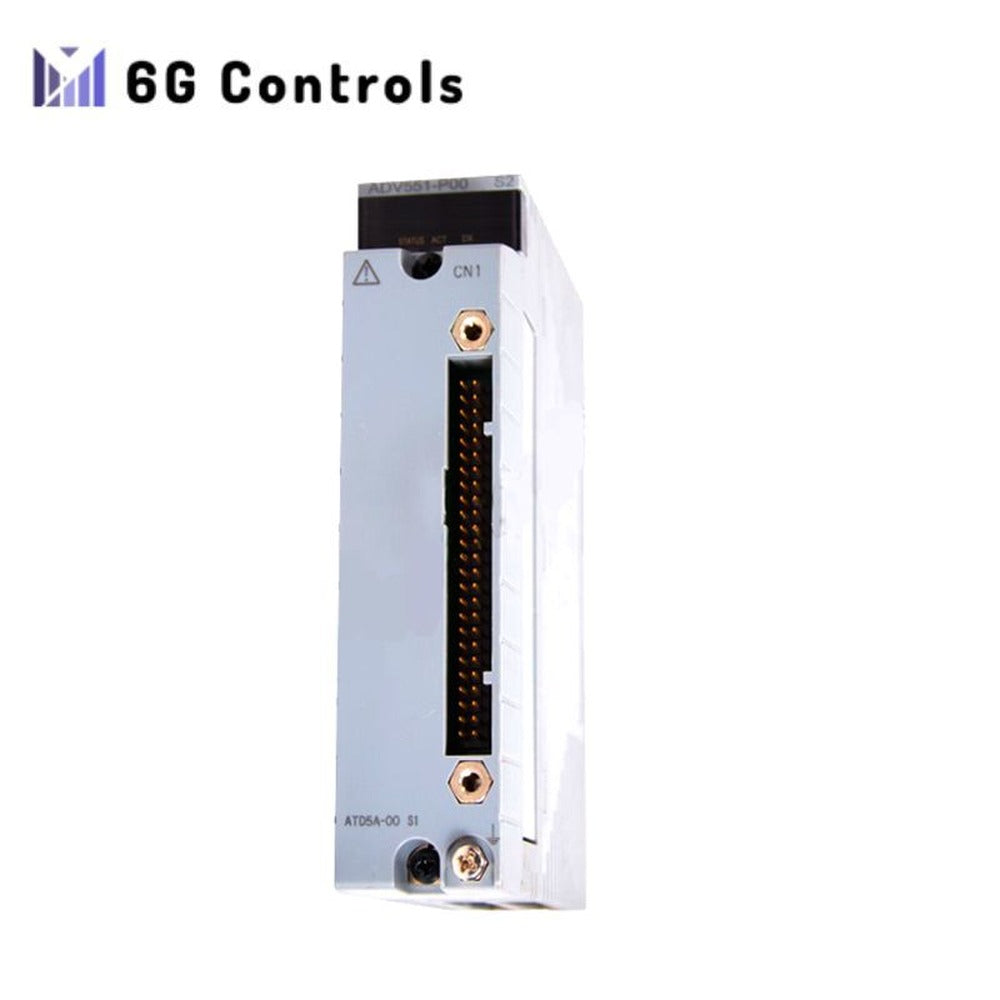

Yokogawa ADV551-P13 | ADV551-P13 S2 Digital Output Module

Overview

The Yokogawa ADV551-P13 is a high-density digital output module developed for Yokogawa’s Field Input/Output (FIO) system architecture. It provides reliable 24 V DC ON/OFF control for field-level actuators and signaling devices in distributed control environments. The module is engineered for continuous operation in process industries where output stability and electrical isolation are critical.

Designed for installation in Yokogawa ESB Bus Node Units and compatible Field Control Units, the ADV551-P13 integrates seamlessly into CENTUM-based control systems.

Key Functional Characteristics

The ADV551-P13 features 32 independent digital output channels with channel-to-channel isolation. Each output is optimized for driving low-power DC loads such as relay coils, solenoid valves, and indicator lamps. Electrical isolation minimizes noise coupling and protects the control system from external faults.

The module adopts a current-sink output configuration, suitable for standard 24 V DC industrial field wiring practices.

Technical Specifications

• Model: ADV551-P13
• Module Type: Digital Output Module
• Output Channels: 32 isolated channels
• Rated Output Voltage: 24 V DC
• Output Configuration: Current sink
• Maximum Load Current: 100 mA per channel
• Maximum Applied Voltage: 26.4 V DC
• Isolation Strength
  • Output signal to system: 2000 V AC for 1 minute
  • Between output commons: 500 V AC for 1 minute
• Operating Temperature Range: –25 °C to +60 °C
• Mounting: FIO base unit installation
• Dimensions: 107.5 × 130 × 32.8 mm
• Weight: 0.2 kg

System Compatibility

The ADV551-P13 is designed exclusively for Yokogawa FIO system environments and communicates via Yokogawa’s internal ESB bus architecture. It does not directly support fieldbus protocols such as PROFIBUS, Modbus, or FOUNDATION Fieldbus, as these functions are handled at the controller or communication module level.

Typical Applications

This module is commonly deployed in:

• Process plants for valve and actuator switching
• Power and utility control panels
• Chemical and petrochemical automation systems
• Manufacturing lines requiring stable discrete output control
• Alarm annunciation and status indication circuits

Related Models Comparison

Within the ADV series, the ADV551-P13 focuses on standard 24 V DC output applications. Other ADV55x variants may differ in output voltage range, redundancy options, or terminal configurations, but the core functional principle of isolated discrete output remains consistent across the series.

FAQ

Q: Is the ADV551-P13 suitable for redundant control systems? A: Yes. Redundancy is achieved at the system or node level when installed in a redundant FIO or ESB bus configuration.

Q: Can this module drive high-current loads directly? A: No. Each channel supports up to 100 mA. External relays or interposing circuits are required for higher-current devices.

Q: Does the module include field power supply? A: No. Field power must be supplied externally according to system wiring standards.
