Overview

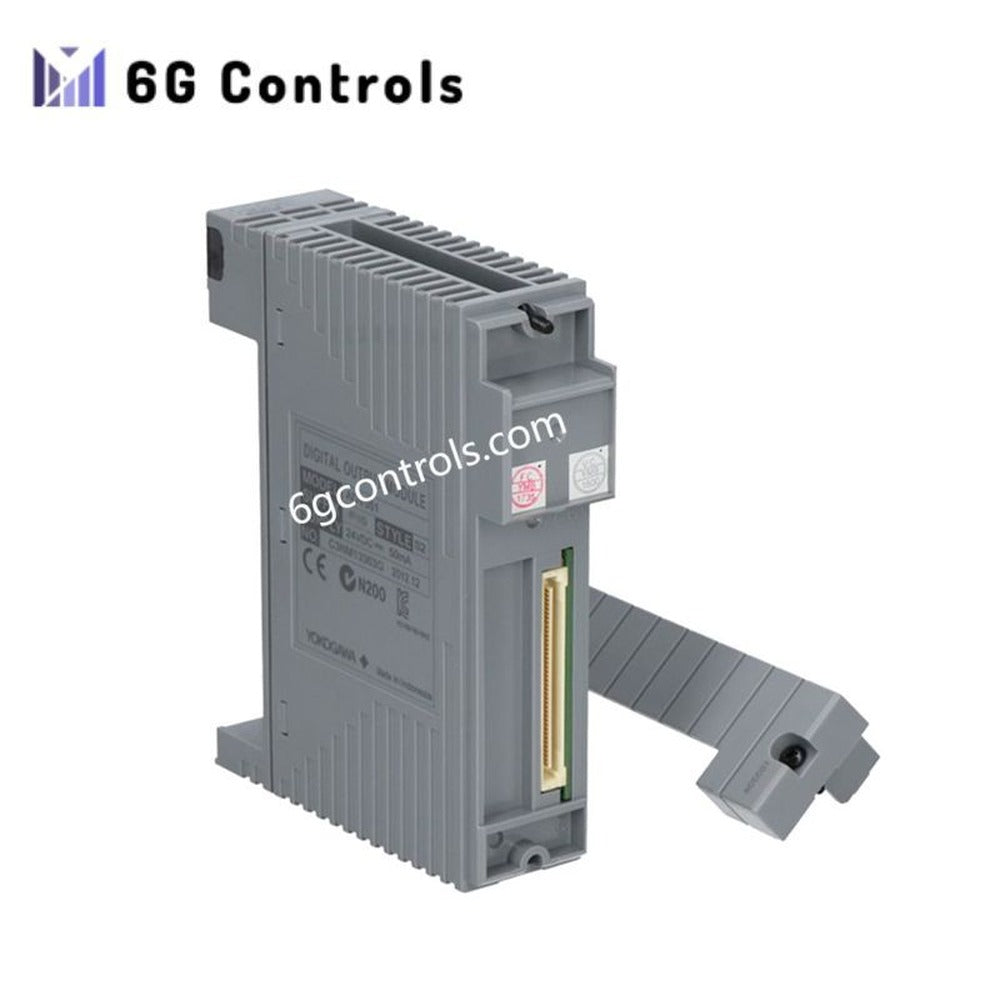

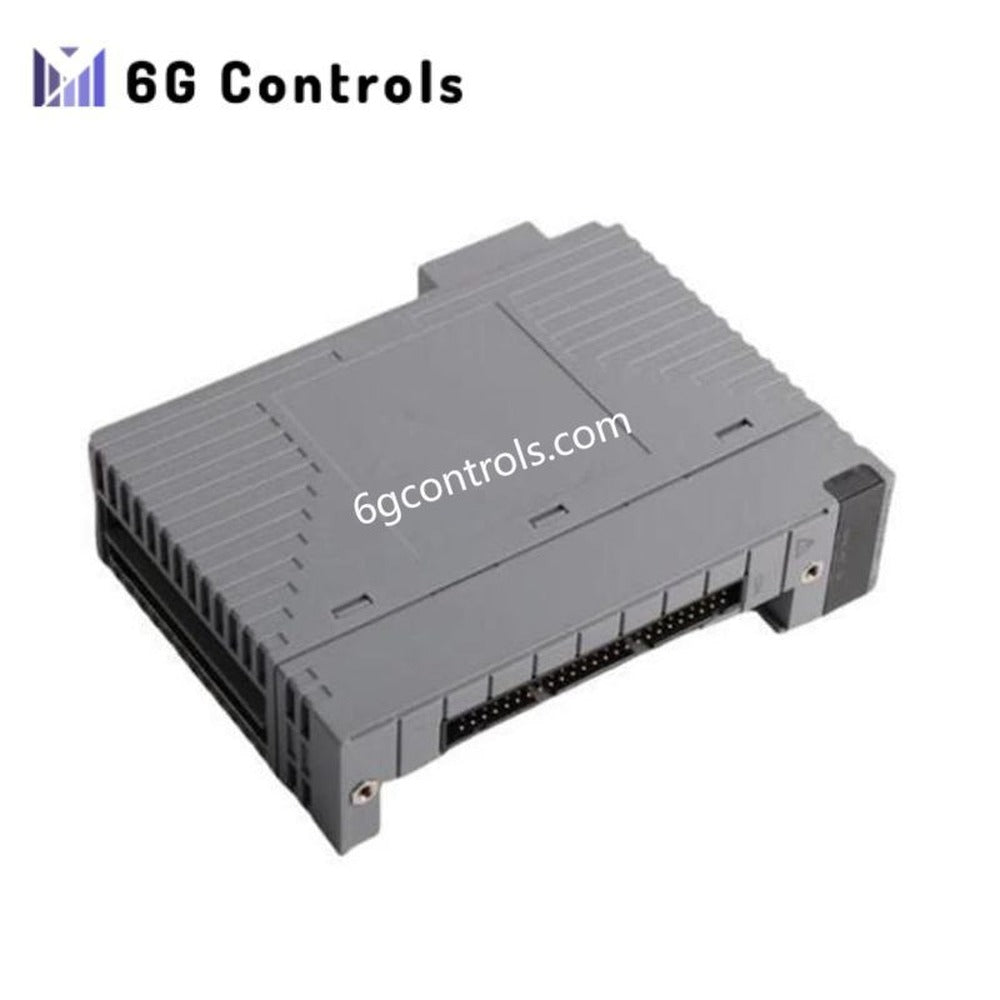

The ADV551-P50/D5S00 is a high-density digital output module manufactured by Yokogawa Electric Corporation for use in CENTUM distributed control systems and ProSafe-RS safety platforms. It provides reliable ON/OFF signal control for a wide range of field-level devices, supporting stable operation in continuous industrial processes.
Designed as part of Yokogawa’s advanced Field I/O (FIO) architecture, this module combines compact mechanical design with robust electrical performance, making it suitable for both standard process control and safety-related applications.
Core Functions
The ADV551-P50/D5S00 delivers discrete digital output signals to actuators and switching devices. Each output channel operates independently, allowing precise control of multiple field instruments from a single module.
The module is typically used to drive solenoid valves, interposing relays, alarms, and other binary-controlled equipment requiring dependable 24 V DC switching.
Technical Specifications
- Output Channels: 32 digital output points
- Output Signal Type: DC ON/OFF switching
- Rated Output Voltage: 24 V DC
- Electrical Isolation: Channel-to-system isolation
- Terminal Type: Pressure clamp terminal block (ATD5S-00)
- Mounting: Yokogawa ESB bus node compatible
- Dimensions: 107.5 × 130 × 32.8 mm
- Weight: 0.2 kg
System Compatibility
The ADV551-P50/D5S00 is engineered for seamless integration with:
- Yokogawa CENTUM VP / CS series DCS
- Yokogawa ProSafe-RS Safety Instrumented Systems
- ESB bus node units and field control units (FCU)
No additional interface modules are required when used within supported Yokogawa system architectures.
Typical Applications
This digital output module is commonly deployed in:
- Valve actuation in chemical and petrochemical plants
- Solenoid control in oil and gas production facilities
- Relay switching in power generation systems
- Safety-related output signaling in SIS environments
- General-purpose discrete control in process industries
Comparison with Similar Models
Compared with lower-channel ADV series modules, the ADV551-P50/D5S00 offers significantly higher output density, reducing cabinet space and simplifying wiring. Unlike digital input modules such as ADV151 series units, this model is specifically designed for output signal driving rather than field status acquisition.
FAQ
Q: Is the ADV551-P50/D5S00 a digital input or output module?
A: It is a digital output module. It provides ON/OFF control signals to field devices and does not accept input signals.
Q: Can this module be used in safety systems?
A: Yes. It is compatible with Yokogawa ProSafe-RS when configured according to system safety requirements.
Q: What type of terminal block is included?
A: The /D5S00 option includes a pressure clamp terminal block (ATD5S-00), suitable for secure field wiring.
