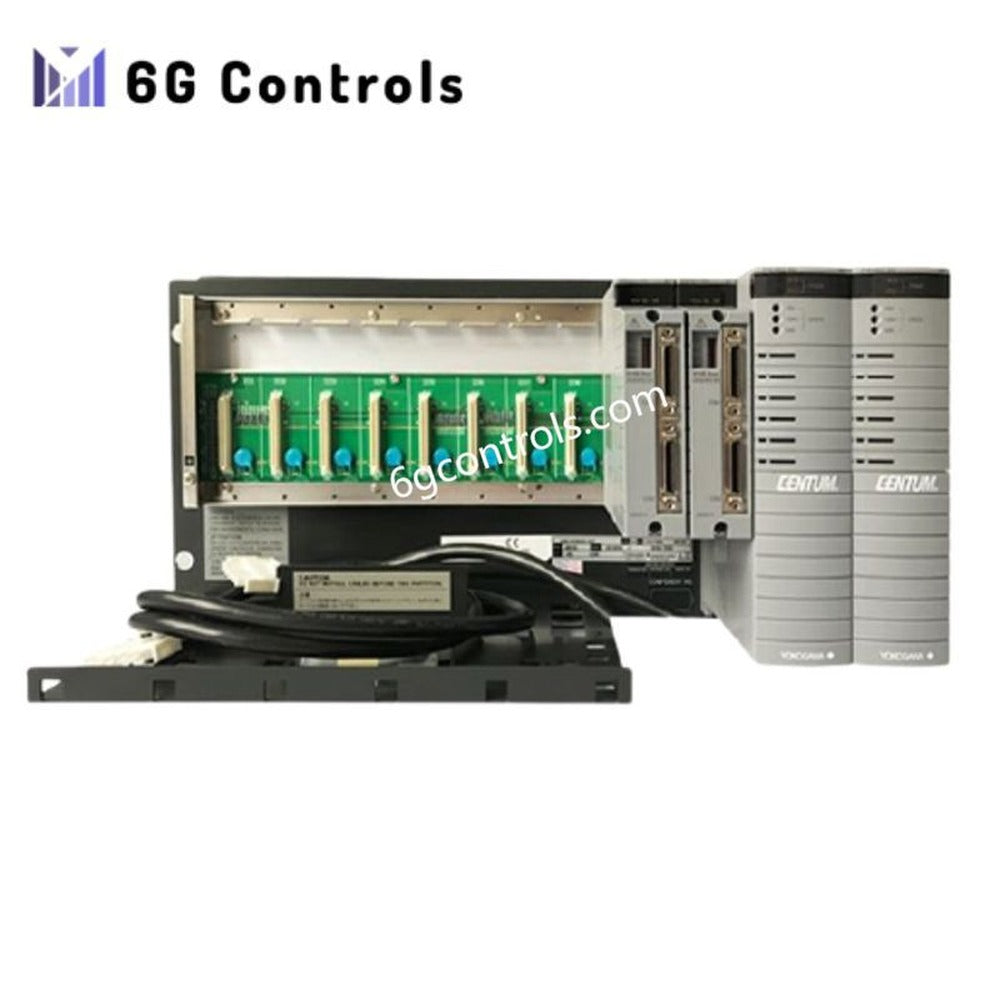

Yokogawa ANB10D-400 ESB Bus Node Unit High Quality

Overview

The ANB10D-400 is an ESB Bus Node Unit used in industrial automation systems. It links field I/O modules to the Field Control Unit (FCU). The unit enables high-speed and reliable data exchange. It features a dual-redundant ESB bus architecture for enhanced system reliability and uptime. The device suits CENTUM VP and ProSafe-RS distributed control systems. Its robust design supports critical and continuous operations in demanding environments.

Technical Specifications

• Model Number: ANB10D-400
• Type: ESB Bus Node Unit
• Communication Protocol: ESB Bus (dual-redundant configuration)
• Power Supply Options:
  • 100–120 V AC
  • 220–240 V AC
  • 24 V DC
• Power Consumption: Up to 230 VA or 5.5 A depending on voltage
• Number of I/O Modules: Supports up to 8 modules
• Dimensions: 15.2 cm × 7.6 cm × 25.4 cm
• Weight: 10 kg
• Mounting: 19-inch rack mount using M5 screws
• Operating Temperature: –20°C to +60°C (extended option up to +70°C with ISA G3)
• Storage Temperature: –30°C to +80°C
• Humidity: Up to 95% RH, non-condensing
• Certifications: CE Marking, CSA, FM Non-Incendive
• Optional Features: ISA G3 environmental tolerance, explosion protection (via suffix codes)
• Power Supply Configuration: Dual-redundant for enhanced reliability
