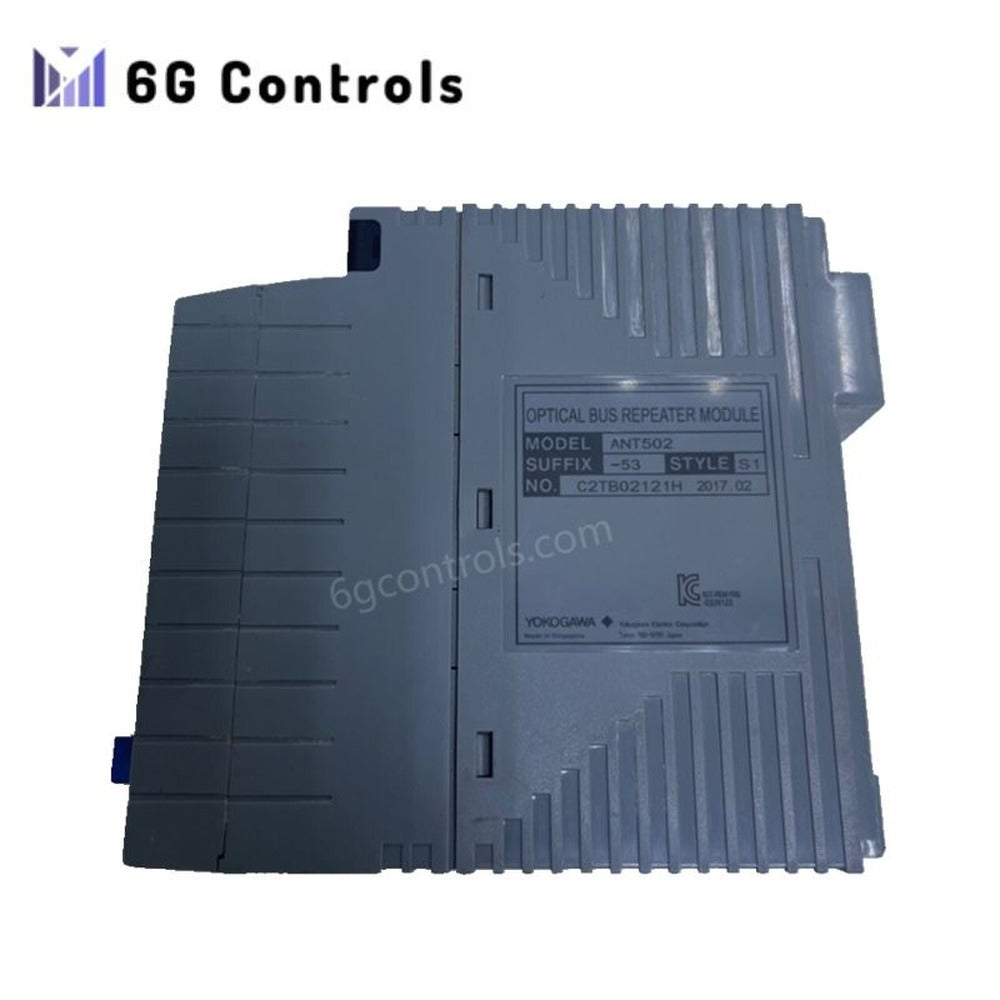

Yokogawa ANT502-53 Optical ESB Bus Adapter Brand New

14 in stock

Manufacturer: Yokogawa
Product No.: ANT502-53
Product Type: Optical ESB Bus Adapter
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.2 kg
Dimensions: 155.9 mm × 130 mm × 32.8 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Overview

The Yokogawa ANT502-53 is an Optical ESB Bus Adapter built for CENTUM VP distributed control systems. It converts electrical ESB signals into optical signals, enabling long-distance, high-reliability communication. Additionally, it supports both chain and star topologies, making it ideal for scalable and robust industrial networks. Engineers can use it to extend ESB networks up to 5 km per hop, ensuring stable data transmission even in demanding environments.

Technical Specifications

Manufacturer: Yokogawa Electric Corporation
Model: ANT502-53
Function: ESB bus optical transport (repeater slave module)
Communication Type: Optical transmission over ESB network
Max Transmission Distance: 5 km per hop
Connection Types: Chain and star
Max Number of Hops:
- Typically 2 (chain)
- Up to 8 (chain and star with supported FCUs)
Optical Connector Type: LC (compliant with IEC 61754-20)
Number of Optical Fiber Cores: 2
Optical Fiber Type: Quartz single-mode
- JIS C 6835 SSMA -9.3/125
- IEC 60793-2-50 B1.1
Maximum Permissible Optical Loss: 0 to 10 dB @ 1.3 μm
Power Supply: 24 V DC
Power Consumption: < 5 W
Current Consumption: 0.5 A
Operating Temperature Range: -20°C to +60°C
Storage Temperature Range: -40°C to +85°C
Dimensions: 155.9 mm × 130 mm × 32.8 mm
Weight: 0.25 kg

Payment: T/T, Western Union.

Shipping port: Xiamen.

Lead time: Typically 1–3 working days after payment confirmation (subject to stock).

Worldwide delivery: We ship industrial automation parts to customers around the world. Freight is quoted with your RFQ.
