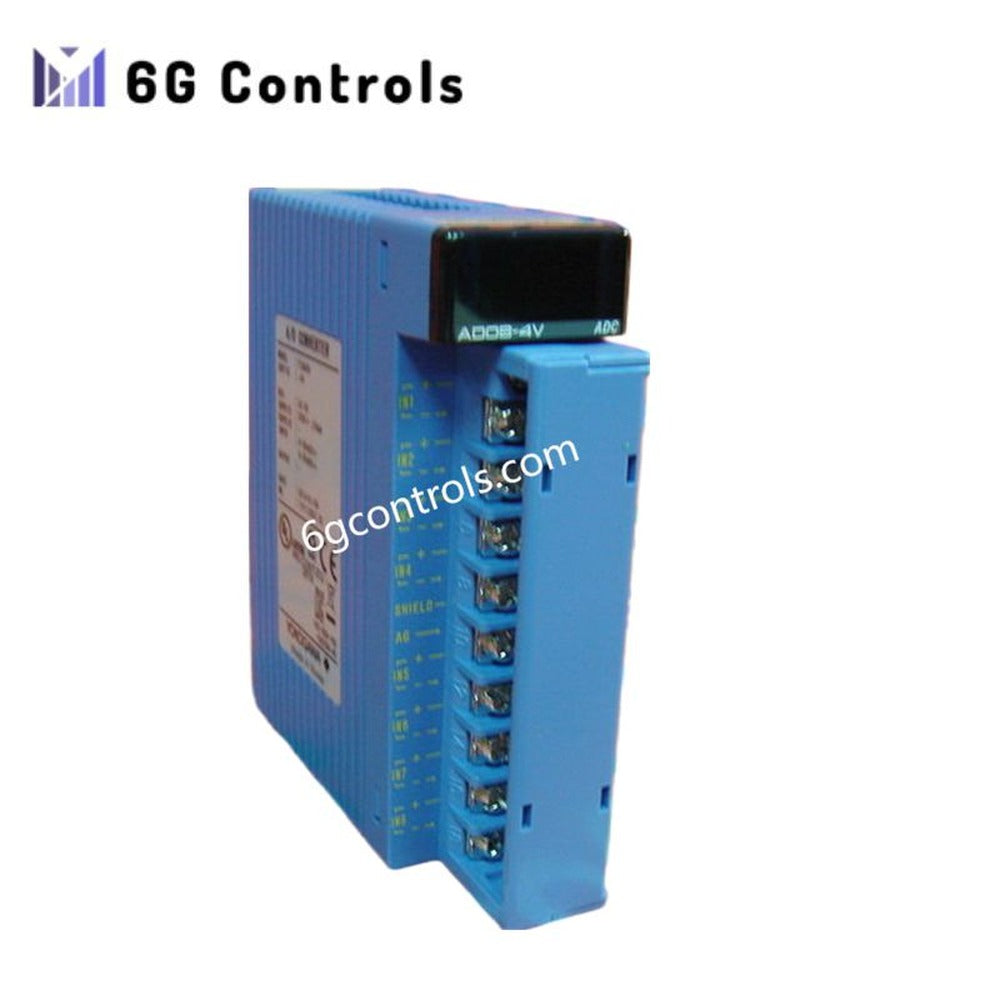

Yokogawa F3AD08-4V | 8-Channel Analog Input Module

Overview

The Yokogawa F3AD08-4V is an 8-channel analog input module engineered for FA-M3 programmable logic controllers. It converts analog sensor signals into precise digital data, enabling accurate real-time monitoring and process control in industrial systems. Designed for robust industrial performance, it ensures stable operation even under demanding conditions.

Technical Specifications

• Model: F3AD08-4V
• Module Type: 8-Channel Analog Input Module (A/D Conversion)
• Input Channels: 8 isolated analog inputs
• Signal Compatibility: Voltage/current signals from sensors and transmitters
• Dimensions: 28.9 × 100 × 83.2 mm
• Weight: 0.2 kg
• Operating Temperature: -10°C to 55°C
• Storage Temperature: -20°C to 70°C
• Power Supply: 24 VDC typical (confirm with FA-M3 PLC configuration)
• Response Time: Fast scan cycle suitable for real-time process control
• Accuracy: High-precision A/D conversion

Key Features

• High-accuracy analog-to-digital conversion
• Eight independent input channels for simultaneous data acquisition
• Compact footprint for space-constrained PLC setups
• Industrial-grade reliability for continuous operation
• Seamless integration with Yokogawa FA-M3 PLC systems

Applications

Ideal for applications requiring precise analog monitoring:

• Temperature, pressure, flow, and level measurement
• Factory automation and process control
• Oil & gas, chemical, petrochemical, and power generation
• Machine monitoring and general industrial automation

FAQ

Q: Is the module hot-swappable? A: No, the F3AD08-4V must be powered down before installation or removal.

Q: Can this module handle both voltage and current signals simultaneously? A: Yes, each channel can be individually configured for voltage or current input.

Q: Is it compatible with older FA-M3 PLC versions? A: Compatibility should be confirmed based on PLC firmware and configuration; refer to Yokogawa manuals.
