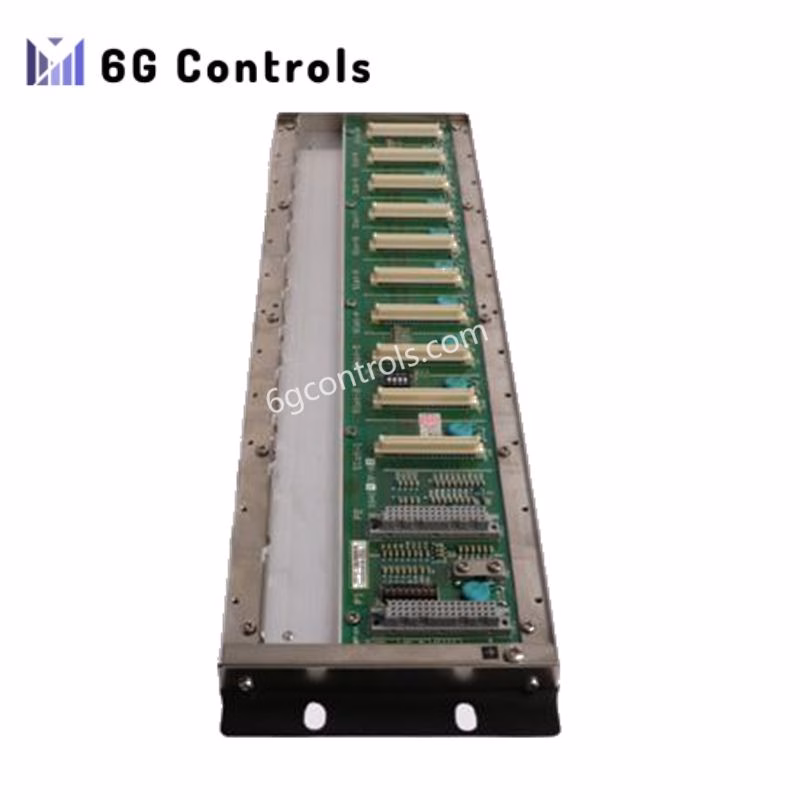

Yokogawa NFBU200-S10 Base Module Most Favorable

Overview

The Yokogawa NFBU200-S10 serves as a robust base module for FCN-500 autonomous controllers. It delivers high-performance and modular control for industrial automation applications. With reliable architecture and flexible communication, it ensures stable operations in demanding environments.

Technical Specifications

Compatible Controllers: Works with FCN-500 autonomous controllers
Power Supply: Requires 24V DC, supports up to 5A
Memory: Uses ECC-supported memory for enhanced data reliability
Communication Interfaces:
- Ethernet: 10/100 Mbps for network integration
- Serial: RS-232C and RS-485 for legacy connections
- Fieldbus: Supports SB Bus and E2 Bus
I/O Capacity:
- Supports up to 8 I/O modules
- Provides 32 digital I/O channels
- Includes 16 analog I/O channels
Operating Temperature: Ranges from -10°C to +55°C
Storage Temperature: Withstands -20°C to +70°C
Humidity Tolerance: Handles 10% to 90% RH, non-condensing
Mounting Type: Designed for rack-mounting
Weight: 2.5 kg
