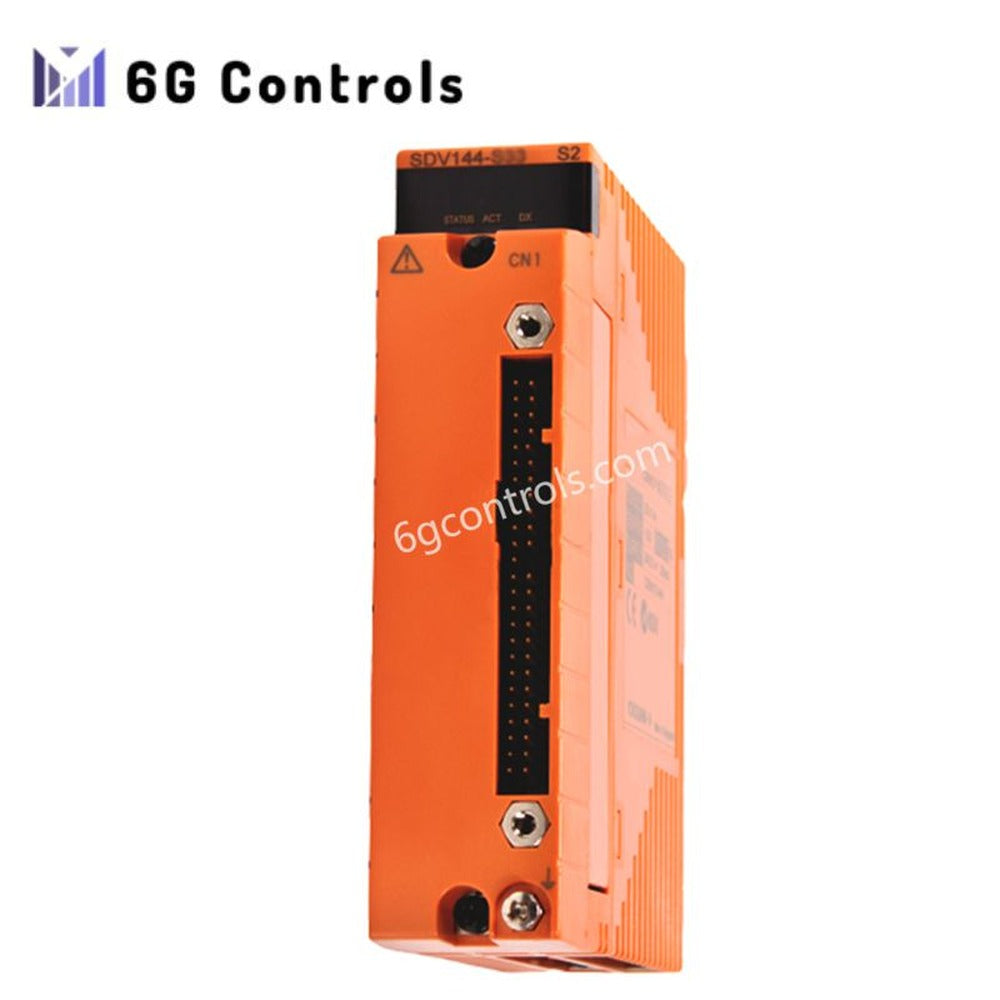

Yokogawa SDV144-S63/PRP Digital Input Module Brand New

13 in stock

Manufacturer: Yokogawa
Product No.: SDV144-S63/PRP
Product Type: Digital Input Module
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.3 kg
Dimensions: 5.1 cm × 20.3 cm × 14.6 cm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Overview

The Yokogawa SDV144-S63/PRP is a 16-channel digital input module for ProSafe-RS safety instrumented systems. It interfaces directly with binary field devices like pushbuttons, limit switches, and proximity sensors. Engineers use it in safety-critical applications across industries such as oil & gas, chemicals, and power generation.

Technical Specifications

General

Model Number: SDV144-S63/PRP
Type: Digital Input Module
Manufacturer: Yokogawa Electric Corporation
Application: Safety instrumented systems (ProSafe-RS)

Input Characteristics

Number of Channels: 16 isolated digital inputs
Input Type: No-voltage contact input
ON State Resistance: 1 kΩ maximum
OFF State Resistance: 100 kΩ minimum
Input Voltage: 24 V DC
Input Current (external 24 V): 6 mA ± 20%
Input Current (internal detection): 2 mA per channel
Instantaneous Max Input Voltage: 30.0 V DC
Input Response Time:
- Standard: 4 ms
- Maximum: 40 ms

Power Requirements

External Power Supply: 24 V DC (+20% / -10%)
Current Capacity: 200 mA
Current Consumption:
- 290 mA max (5 V DC)
- 140 mA max (24 V DC)

Electrical Isolation and Protection

Withstand Voltage: 2 kV AC (1 minute) between input signal and system
Isolation Resistance: 250 MΩ minimum

Environmental Specifications

Operating Temperature: −20°C to +70°C
Storage Temperature: −40°C to +85°C
Humidity Range: 5% to 95% RH (non-condensing)
Corrosive Gas Resistance: ANSI/ISA S71.04 G3 compliant

Physical Specifications

Dimensions: 5.1 cm × 20.3 cm × 14.6 cm
Weight: 0.3 kg
Connection Type: Pressure clamp terminal or MIL cable
Option Code /PRP: Adds prevention pin for false insertion
