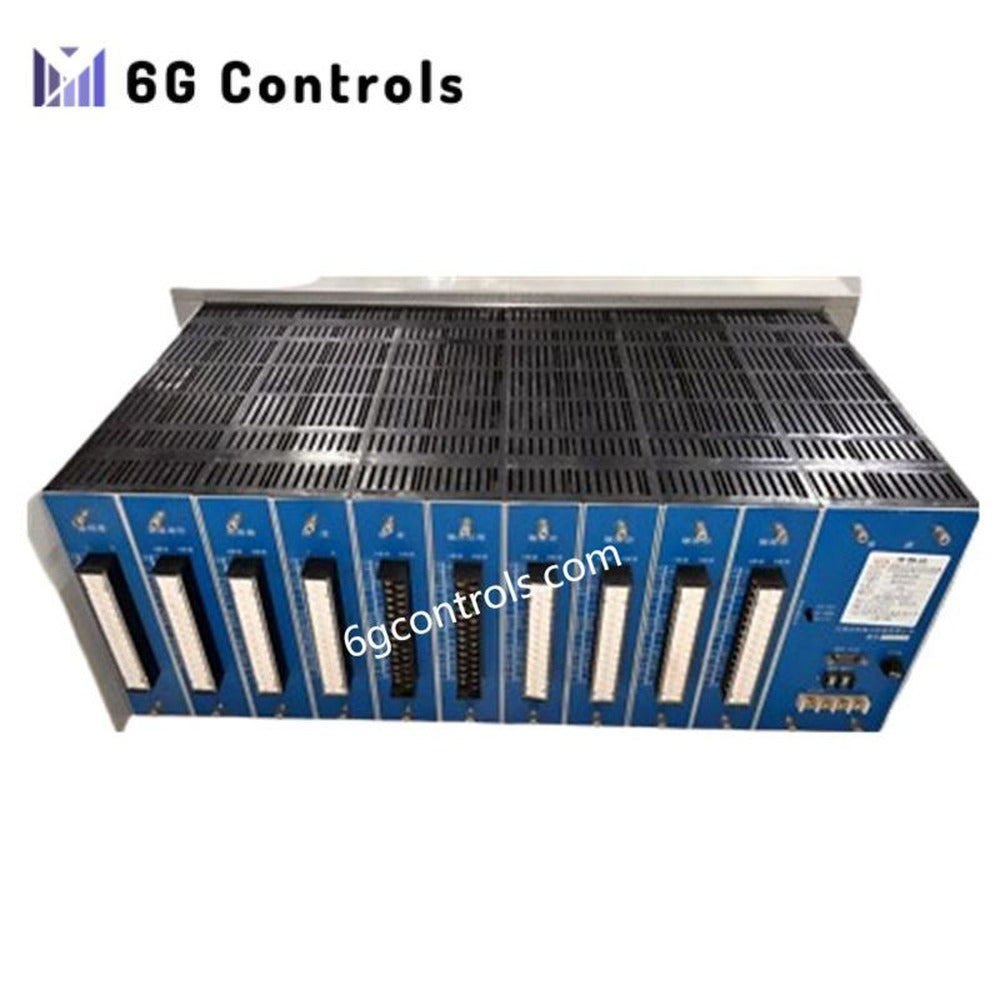

ZHONGHE 8000B/012 Dual-Channel Vibration Monitoring Module

20 in stock

Manufacturer: Other PLC Module
Product No.: 8000B/012
Country of origin: USA
Product Type: Dual-Channel Vibration Monitoring Module
Condition: Brand New
Payment: T/T, Western Union
Weight: 3.6 kg
Dimensions: 364 mm × 428 mm × 213 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Overview

The 8000B/012 is a dual-channel vibration monitoring module for the ZHONGHE 8000B series. It actively measures and monitors bearing housing vibration in turbines, compressors, motors, and other rotating machinery. The module provides intelligent processing, real-time diagnostics, and flexible configuration. Therefore, it supports predictive maintenance and machinery protection.

Technical Specifications

Measurement & Display

Measurement Type: Bearing housing vibration (peak-to-peak displacement)
Channels: 2 independent channels
Sensor Type: SZ-6 velocity sensors (50 mV/mm/s sensitivity)
Measurement Range: 0–500 μm (default 0–200 μm)
Frequency Response: 10–300 Hz
Display: 4-digit LED per channel
Resolution: 1 μm
Accuracy: ±1% of full scale

Output & Alarms

Analog Output: 4–20 mA or 0–10 mA per channel
Load Resistance: ≤500 Ω
Alarm Outputs: Two levels per channel (High and High-High)
LED Indicators: Display each alarm
Relay Contact Output: 2A @ 28 VDC or 1A @ 250 VAC
Alarm Settings: Configure via handheld terminal or PC software
Data Retention: Stores peak, valley, and alarm history after power loss

Communication

Interfaces: RS232, RS485
Protocol: MODBUS-RTU
Remote Configuration: Supported via handheld device or upper-level system

Reliability Features

Suppresses alarms for 25 seconds at power-on
Detects signal faults and indicates via LEDs
Detects line disconnection and suppresses alarms
EEPROM retains parameters without power

Environmental & Installation

Operating Temperature: 0°C to +45°C
Limit Temperature: –10°C to +50°C
Storage Temperature: –40°C to +60°C
Humidity: 20% to 90% RH, non-condensing
Power Consumption: ≤10 W
Mounting: Occupies one slot in the 8000B chassis
