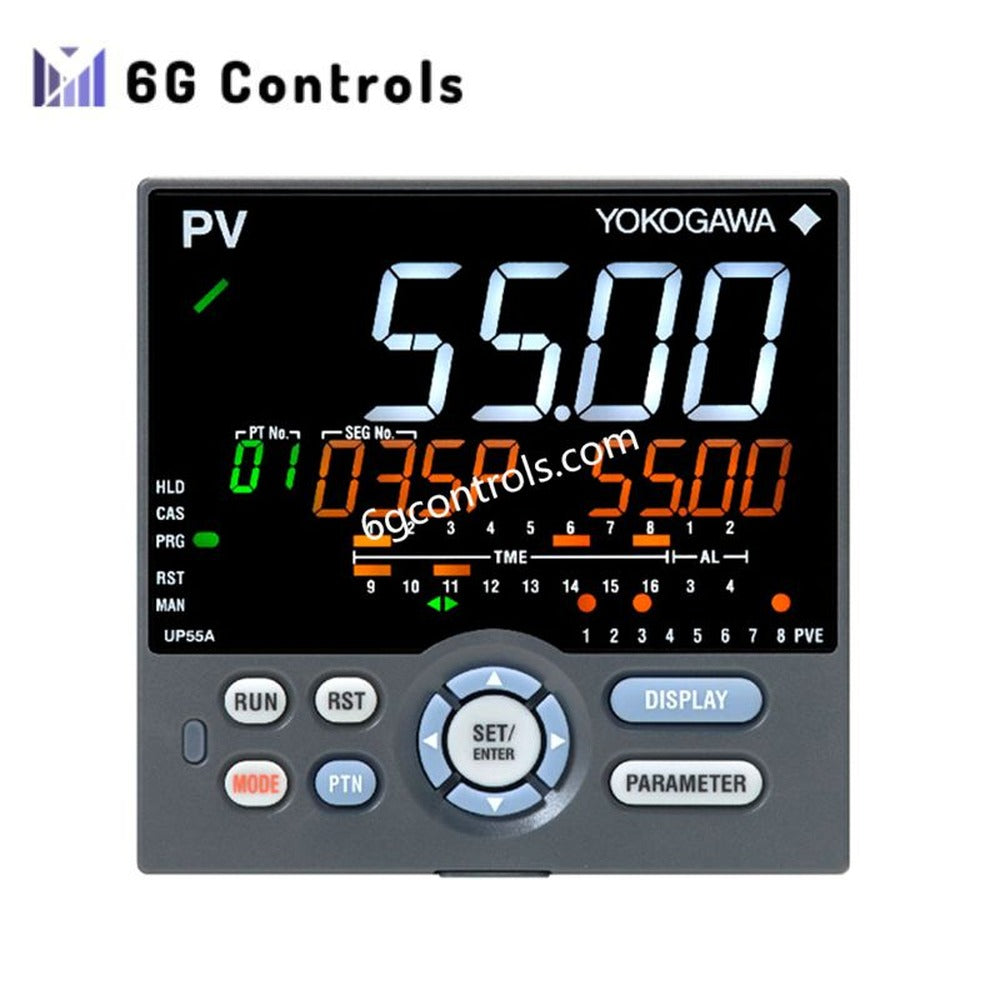

Yokogawa UP55A-001-11-00/AP Program Controller Brand New

Overview

The Yokogawa UP55A-001-11-00/AP is a high-performance program controller. It manages advanced temperature and process control in industrial applications. It supports up to 30 program patterns and offers ladder sequence control. Moreover, it features multi-loop capability and remote setpoint switching. The 14-segment color LCD simplifies parameter monitoring and configuration. The /AP suffix indicates panel mounting or accessory options. Its compact design fits panel-mount installations.

Technical Specifications

Model Number: UP55A-001-11-00/AP Function: Program Controller

Display:

• PV: 5-digit, 14-segment active color LCD (white/red), 21.5 mm height
• Data: 5-digit, 11-segment color LCD (orange)
• Bar Graph: 12-segment color LCD (orange)
• Guided Navigation: Simplifies parameter configuration

Program Capacity:

• Program Patterns: Max 30 (99 per pattern, 600 with /AP option)
• Total Segments: Max 300
• Segment Time: 0.00–999.59 (hour.minute or minute.second)
• PV Events: 8
• Time Events: 16, duration 0.01–999.59 (hour.minute or minute.second)
• Repeat Cycle: 0–999, CONT (unlimited)
• Wait Operation: 5 groups with upper/lower zones
• Synchronized Operation: Halts faster units via digital input
• Program Pattern Link: Available
• Program Edit: Add, delete, or copy segments/patterns

Inputs:

• Types: Thermocouple, RTD, voltage, current
• Range: –200°C to +1900°C (sensor-dependent)
• Digital Inputs: Up to 8 contact inputs

Outputs and Control:

• Control Output: 1
• Cooling-side Output: 1 (for heating/cooling type)
• Output Types: Relay, SSR drive, 4–20 mA, 0–10 V (config-dependent)

Alarms and Communication:

• Alarms: 8 configurable outputs
• Communication: RS-485, optional Ethernet, MODBUS

Power and Environment:

• Power Supply: 100–240 V AC
• Operating Temperature: 0°C to +50°C
• Mounting Type: Panel mount (DIN 1/4 size)
• Dimensions: 65 mm depth × 96 mm width × 96 mm height

​
