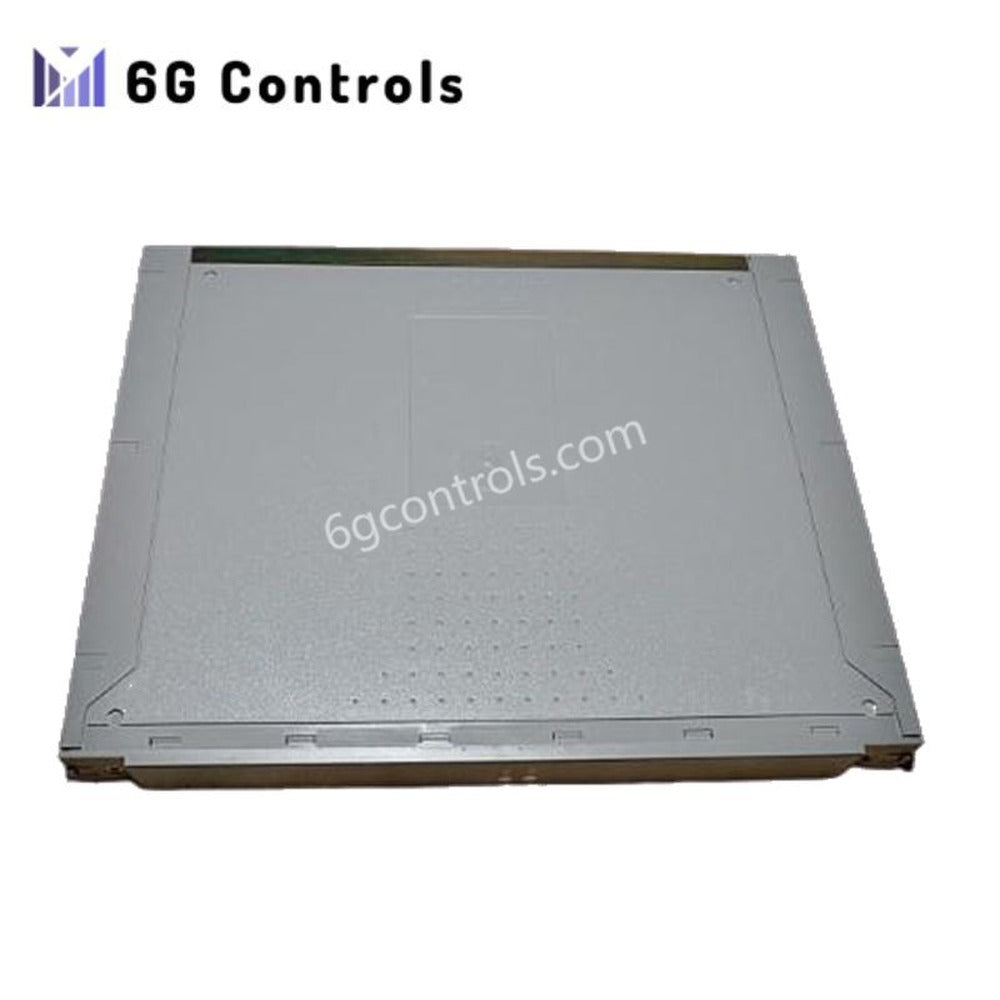

ICS Triplex T3310 Digital DC Input Module Brand New

Overview

The ICS Triplex T3310 is a High-Reliability Digital DC Input Module designed for use in critical systems. It provides input detection for up to 16 field input switches, ensuring high system reliability. The module is compatible with 24, 48, or 120 VDC field power supplies and is built to maintain system continuity even in case of module failure. The T3310 offers robust performance with optocoupler insulation and configurable anti-bounce filtering, making it ideal for environments where uptime is critical.

Technical Specifications

• Model Number: T3310

• Manufacturer: ICS Triplex

• Type: Digital DC Input Module

• Channels: 16

• Input Voltage Range: 24, 48, or 120 VDC

• Input Current: 7 mA

• Switching Voltage: 125 V, 1 mA process input

• Maximum Power Consumption: 7.5 W

• Insulation: By optocoupler

• Anti Bounce Filtering: Configurable from 0 to 255 ms

• Acquisition Time: 1 ms

• Electrical Connection: Supports shielded and unshielded cables

• Local Signaling: LEDs for communication, self-test, fault, and input status

• Current Consumption: 0.07 mA at 24 V DC

• Operating Temperature: 0…60 °C

• Storage Temperature: -40…85 °C

• Relative Humidity: 95% without condensation

• Operating Altitude: Up to 5000 m

• Dimensions: 3.3 cm x 26.5 cm x 35.7 cm

• Weight: 1.26 kg
