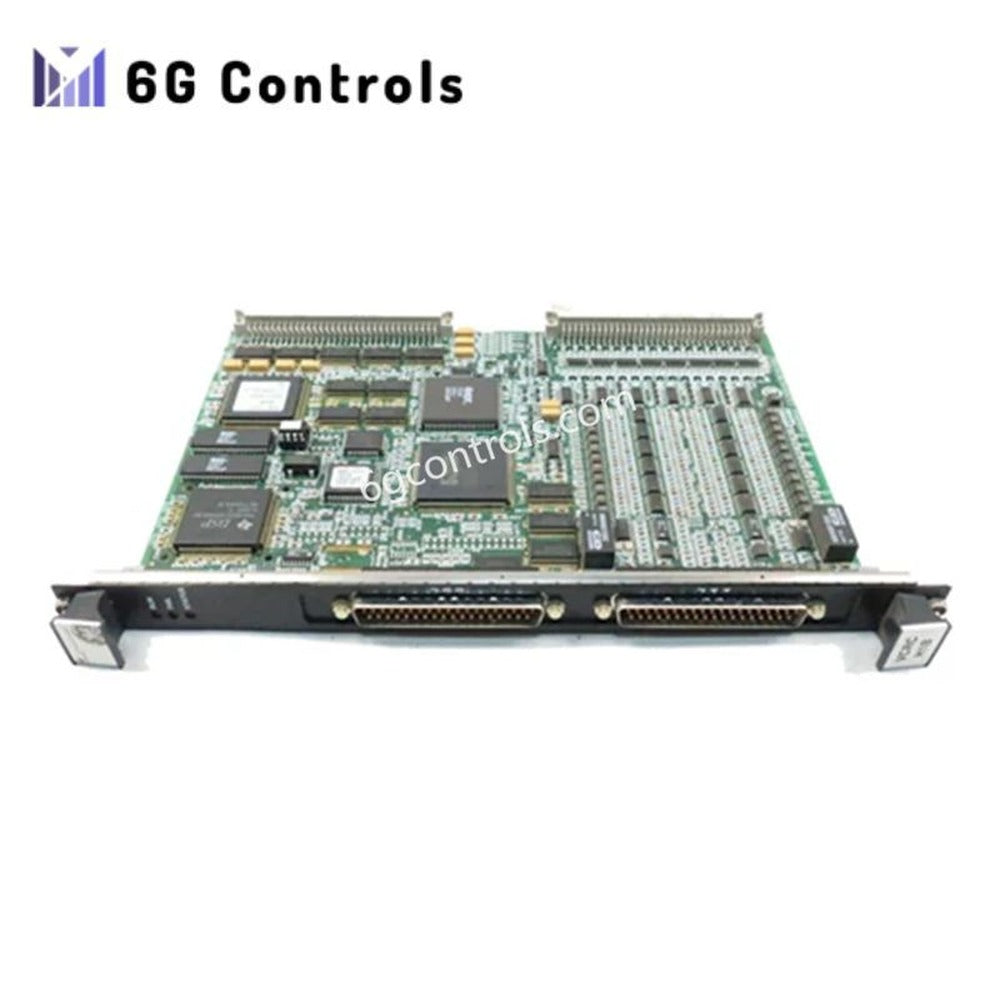

GE IS200EXHSG3REC High-Speed Synchronized Input Module

Overview

The GE IS200EXHSG3REC is a High-Speed Synchronized Input Module. GE developed it for the Mark VIe/VIeS control systems. This module captures voltage and current signals with high accuracy. It supports real-time synchronization in gas and steam turbine applications. Engineers rely on it for stable turbine control and efficient grid integration.

Technical Specifications

• Model Number: IS200EXHSG3REC
• Type: High-Speed Synchronized Input Module
• Manufacturer: General Electric (GE)
• Series: Mark VIe/VIeS

Input Performance

• Input Channels: 8 voltage/current combination inputs
• Voltage Range: ±10V (1MΩ impedance)
• Current Range: ±20mA (50Ω load)
• Sampling Rate: 10 kHz per channel
• Resolution: 16-bit ADC (1 part in 65536)
• Accuracy: ±0.05% Full Scale

Synchronization and Communication

• Synchronization: Phase-Locked Loop (PLL), 45–65 Hz grid tracking
• Communication Interface: HSR + IEC 61850-9-2LE

Power and Environmental Ratings

• Power Supply: 24V DC (range 18–32V)
• Power Consumption: ≤12W
• Operating Temperature: -40°C to +70°C
• Protection Rating: IP20 (for cabinet installation)

Dimensions and Weight

• Length: 233 mm
• Width: 170 mm
• Height: 64 mm
• Weight: 0.5 kg
