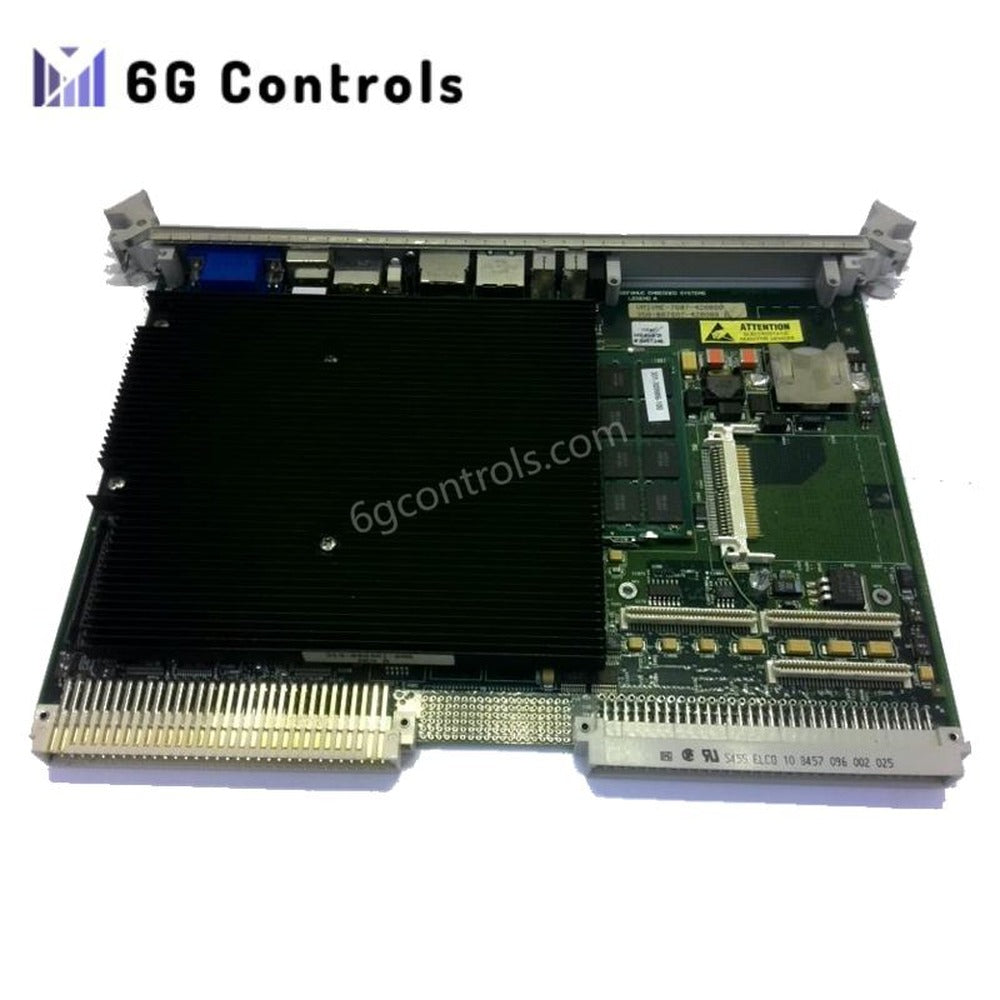

GE VMIVME-7807 Single-Board Computer

Overview

The GE VMIVME-7807 is a versatile, high-performance SBC designed for industrial and embedded applications. It features an Intel Pentium M processor, offering speeds up to 1.8 GHz, and supports up to 1.5 GB of DDR SDRAM. The board also includes essential I/O interfaces, such as dual Gigabit Ethernet and a PMC expansion site, making it ideal for demanding environments.

Technical Specifications

• Processor: Intel Pentium M (up to 1.8 GHz)

• Memory: Up to 1.5 GB DDR SDRAM (with optional ECC support)

• Storage: Up to 2 GB bootable CompactFlash via secondary IDE

• Graphics: Integrated SVGA and DVI controller, supporting up to 1600 x 1200 resolution

• Ethernet: Dual Gigabit Ethernet (front panel or rear I/O), 10/100 Mbit Ethernet (front panel)

• Interfaces:

  • Four asynchronous serial ports

  • Four USB 2.0 ports (two front, two rear)

  • Serial ATA (SATA) support via VMEbus backplane

• Expansion: PMC expansion site (PCI-X, 66 MHz)

• Operating Temperature: -40°C to +85°C

• Operating Systems: Windows XP, Windows 2000, VxWorks

• Form Factor: 6U VME

• Weight: 0.99 lbs
