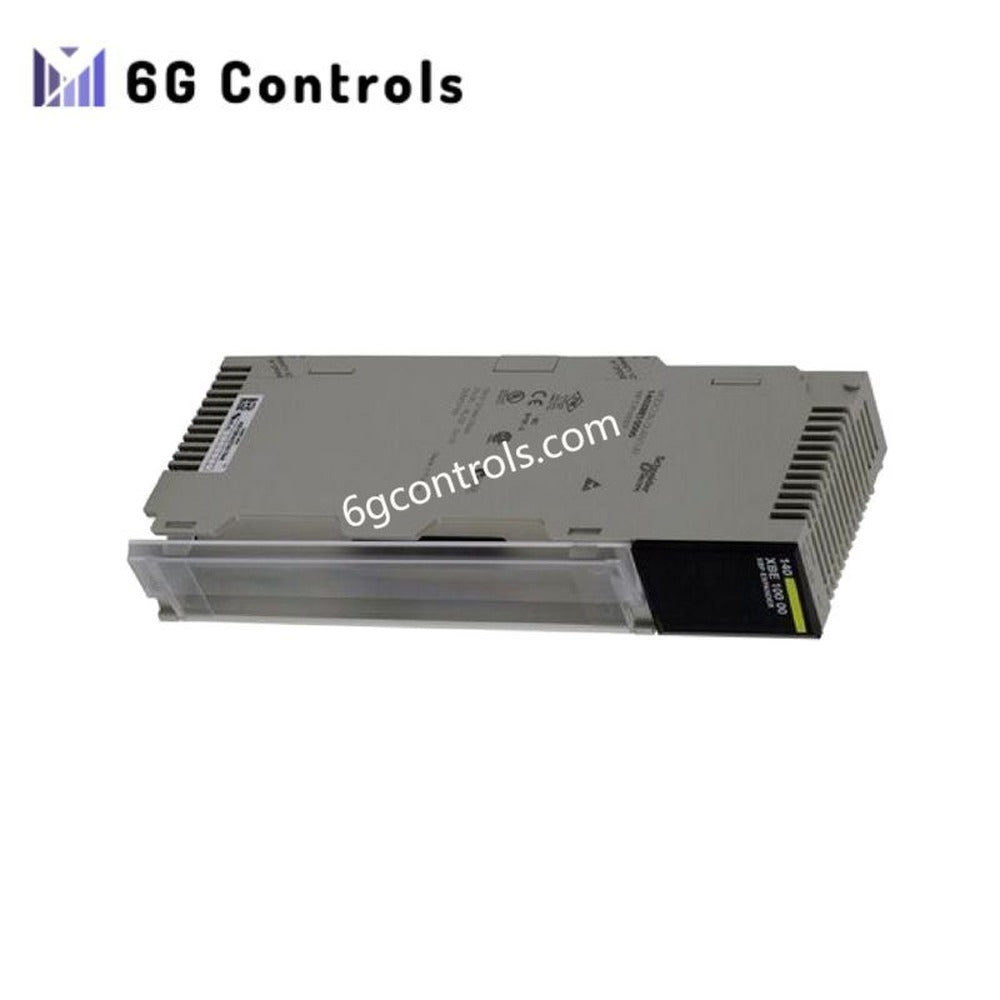

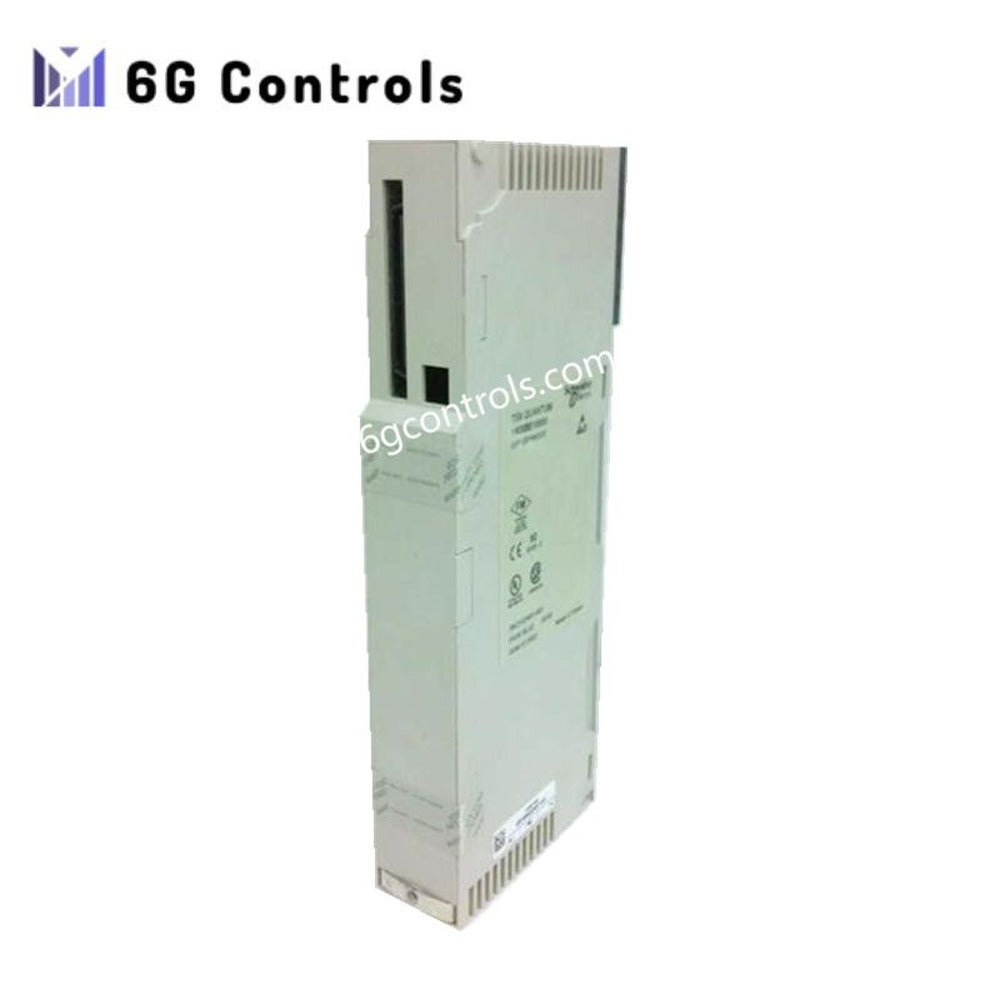

Schneider Electric 140XBE10000 Quantum Backplane Expander

Overview

The 140XBE10000 backplane expander from Schneider Electric is designed for the Modicon Quantum automation platform, enabling the expansion of compatible Quantum backplanes with 12-slot to 16-slot configurations. This expansion accessory extends rack architecture capabilities while maintaining stable communication and system integrity across connected modules.

Engineered for industrial PLC installations, the expander supports rack-mounted integration and is commonly used in large-scale control systems requiring additional module capacity beyond standard backplane limitations.

The product was officially discontinued by Schneider Electric on December 31, 2022, with service support scheduled through December 31, 2030.

Key Features

• Backplane expansion accessory for Modicon Quantum systems
• Supports 12-slot through 16-slot Quantum backplanes
• Designed for rack-mounted installation
• Stable extension of I/O and processor rack configurations
• Compatible with Quantum distributed automation architectures
• Industrial-grade operating temperature tolerance up to 60°C
• Suitable for system upgrades, maintenance, and spare part replacement

Technical Specifications

Replacement Information

Schneider Electric recommends the following replacement for migration or modernization projects:

• BMXXBE2005 — Modicon M340 X80 backplane extender kit

The replacement model is intended for newer Modicon architectures and may require compatibility verification during system migration planning.

Applications

The 140XBE10000 is commonly deployed in:

• Distributed PLC control systems
• Large-scale process automation
• Manufacturing production lines
• Power generation facilities
• Water treatment plants
• Petrochemical automation systems
• Legacy Modicon Quantum expansions

FAQ

What does the 140XBE10000 backplane expander do?

It extends compatible Modicon Quantum backplanes, allowing additional rack capacity for I/O, communication, or processor modules.

Which Quantum racks are supported?

The unit is designed for use with Schneider Electric 12-slot to 16-slot Quantum backplanes, including the 140XBP01600 rack.

Is the product still available from Schneider Electric?

No. The 140XBE10000 has been discontinued, although service support remains available through 2030.

What is the recommended replacement model?

Schneider Electric identifies the BMXXBE2005 extender kit as the suggested replacement solution for newer Modicon platforms.
