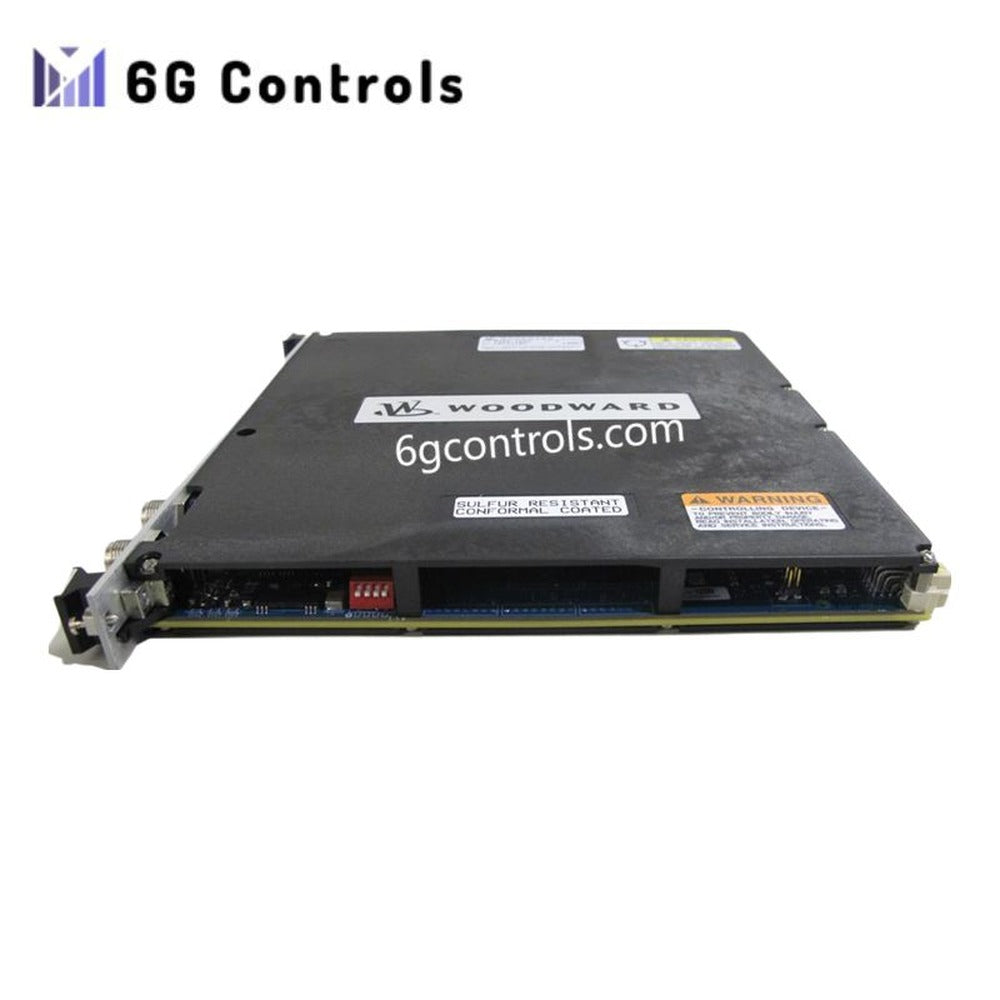

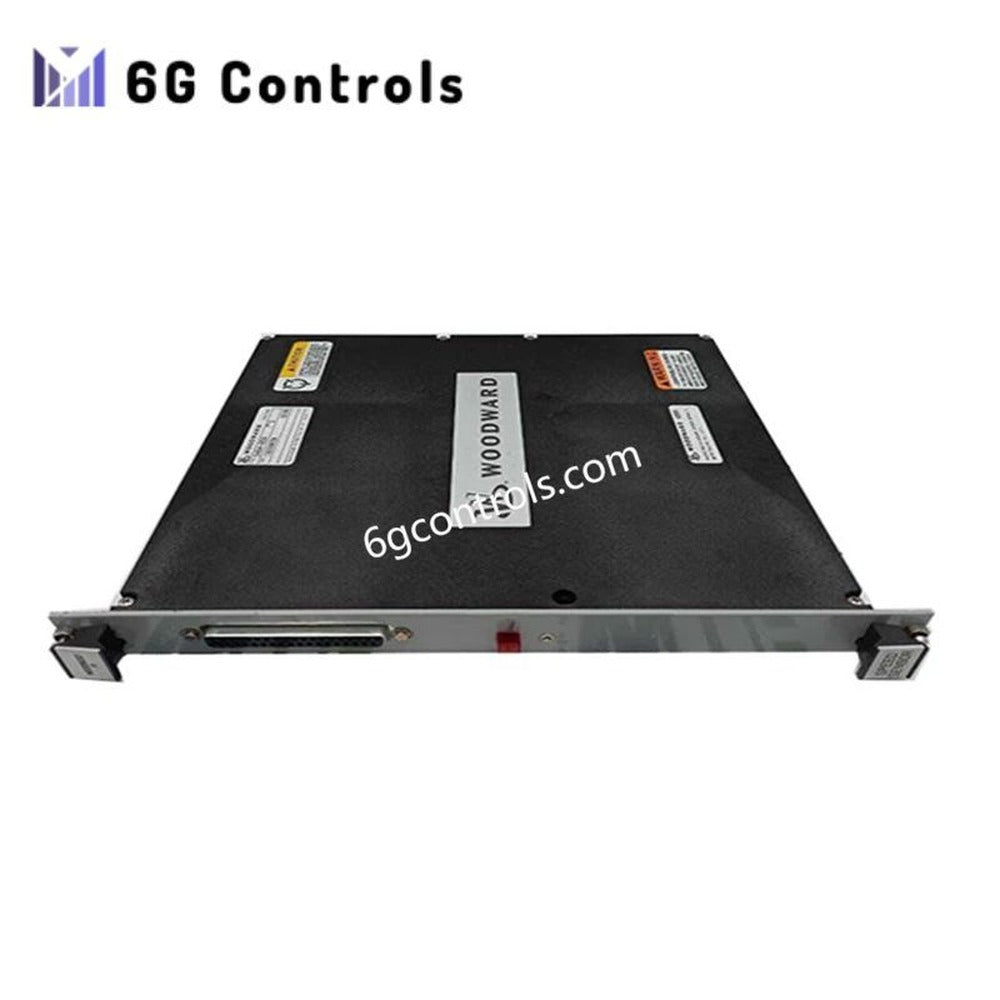

Woodward 5466-5027 Simplex High-Density Analog I/O Module

Overview

The 5466-5027 Simplex High-Density Analog I/O Module is a precision signal interface designed for Woodward MicroNet Digital Control systems. It provides stable, high-resolution analog input acquisition and output control for turbine governors, plant control loops, and other continuous-process applications where deterministic performance is required.

Built with a simplex architecture, the module prioritizes straightforward integration, predictable behavior, and ease of maintenance. Its high channel density allows engineers to reduce cabinet space while maintaining full signal isolation and protection at the channel level.

Functional Architecture

This module combines multi-channel analog input measurement with current-loop analog output capability on a single hardware platform. Internal signal conditioning and per-channel protection ensure long-term measurement stability, even in electrically noisy industrial environments.

A single front-panel diagnostic LED provides extensive fault feedback using coded flash patterns, enabling rapid fault identification without external tools or software access.

Analog Input Specifications

The 5466-5027 supports high-density current and voltage signal acquisition suitable for most industrial transmitters.

• Total input channels: 24
• Standard signal range: 4–20 mA
• Configurable ranges:
  • 0–25 mA
  • 0–5 VDC
• Input resolution: High-resolution ADC optimized for closed-loop control
• Input protection:
  • Individual 100 mA fuse per channel
  • Overcurrent and wiring fault tolerance
• Isolation: Channel-to-system isolation for noise immunity and ground-loop protection

Analog Output Specifications

Designed for stable actuator and valve control, the output section delivers consistent current-loop signals.

• Total output channels: 8
• Output signal type: 4–20 mA
• Output behavior: Deterministic update synchronized with MicroNet control cycles
• Protection: Short-circuit and load fault detection

Diagnostics and Fault Indication

The module incorporates a single multi-state LED capable of indicating up to 19 distinct fault conditions through defined flash sequences.

Supported diagnostic coverage includes input range violations, internal hardware faults, power integrity issues, and communication-related errors. This design simplifies troubleshooting during commissioning and maintenance while minimizing panel complexity.

Mechanical and Environmental Characteristics

• Installation type: MicroNet chassis-mounted
• Module mass (standalone): approximately 0.9 kg
• Installed system weight: dependent on chassis and backplane configuration
• Construction: Industrial-grade components suitable for continuous operation
• Country of manufacture: United States

Weight variations reported in different listings typically reflect whether the value refers to the module alone or a fully populated chassis assembly.

System Compatibility

The 5466-5027 is engineered specifically for integration with Woodward MicroNet control platforms and is not intended for standalone PLC or third-party DCS use without approved interface hardware.

Typical Application Areas

• Gas turbine control and monitoring
• Steam turbine governing systems
• Compressor and pump control loops
• Process instrumentation signal acquisition
• High-accuracy analog feedback in mission-critical control systems

FAQ

Is the 5466-5027 a redundant module? No. This model uses a simplex architecture. Redundant I/O configurations require additional MicroNet hardware and system-level design.

Can the same module mix voltage and current inputs? Yes. Input channels can be configured for supported voltage or current ranges, subject to system configuration and wiring requirements.

Does the module provide per-channel protection? Yes. Each analog input channel includes its own 100 mA fuse and internal protection circuitry.

Is field calibration required? Routine field calibration is typically not required. Calibration is performed at the factory, with system-level verification handled through MicroNet configuration tools.
