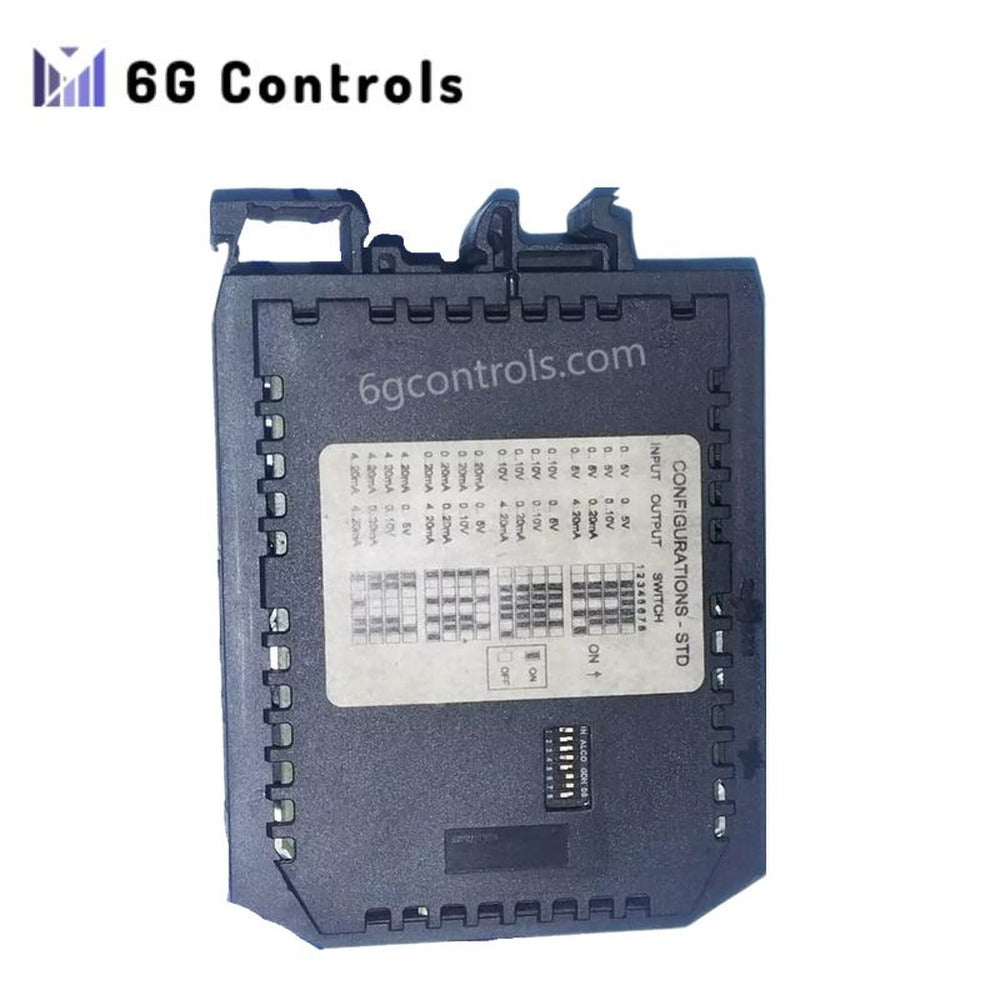

ABB CC-E/STD 1SVR011700R0000 Analog Signal Converter

Overview

The ABB CC-E/STD is a universal standard analog signal converter designed for industrial automation. It ensures precise signal conversion for control systems by providing 3-way electrical isolation.

Technical Specifications

General Information

• Manufacturer: ABB

• Series: CC-E

• Product Type: Analog Signal Converter

• Application: Industrial automation and control

Electrical Specifications

• Power Supply: 24V DC

• Input Signal Ranges:

  • 0-5V

  • 0-10V

  • 0-20mA

  • 4-20mA

• Output Signal Ranges:

  • 0-5V

  • 0-10V

  • 0-20mA

  • 4-20mA

• Power Loss: Approximately 2W

Communication & Connectivity

• Configuration: DIP switches for input/output selection

• Gain & Offset Adjustment: Front-panel potentiometers

• Status Indicator: Green LED for applied supply voltage

Physical Specifications

• Dimensions:

  • 81 mm (W)

  • 27 mm (D)

  • 109 mm (H)

• Weight: 0.108 kg

Environmental Specifications

• Standards Compliance:

  • IEC/EN 61000-6-2

  • IEC/EN 61000-6-4

  • UL 508

  • CAN/CSA C22.2 No. 14
