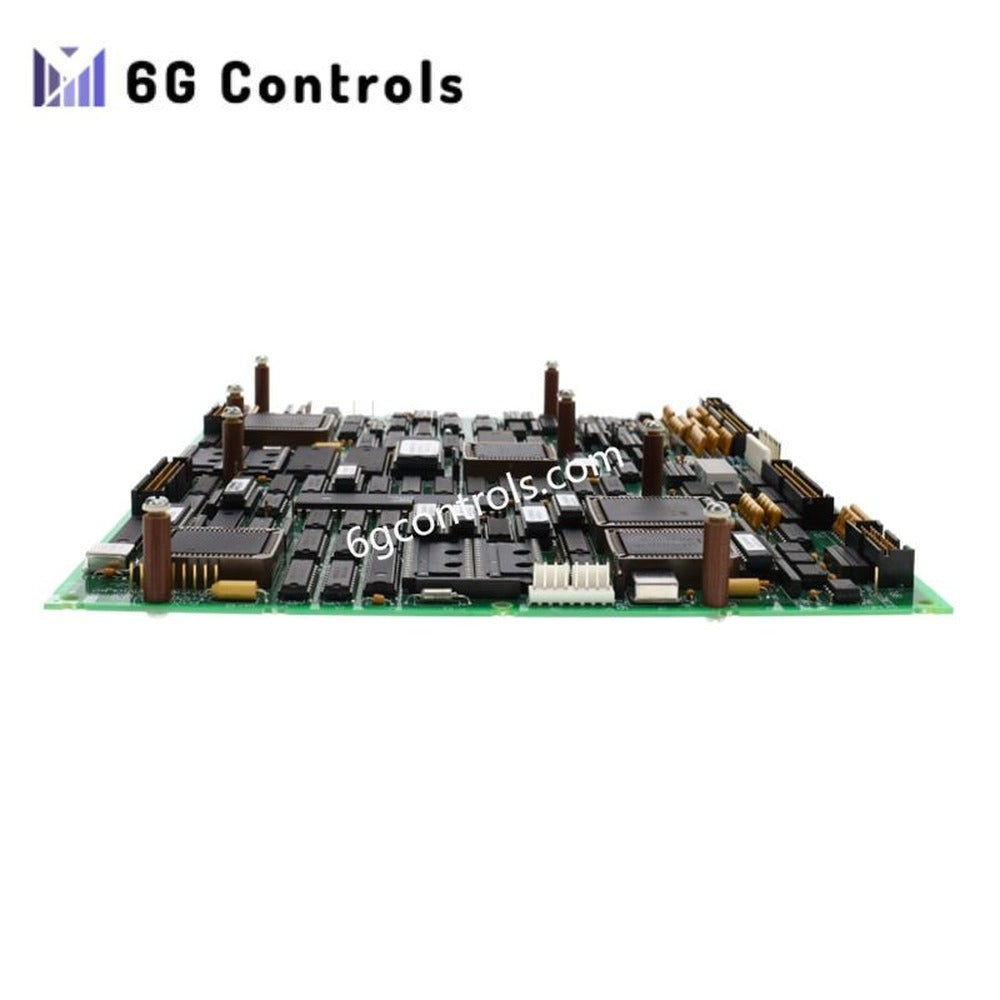

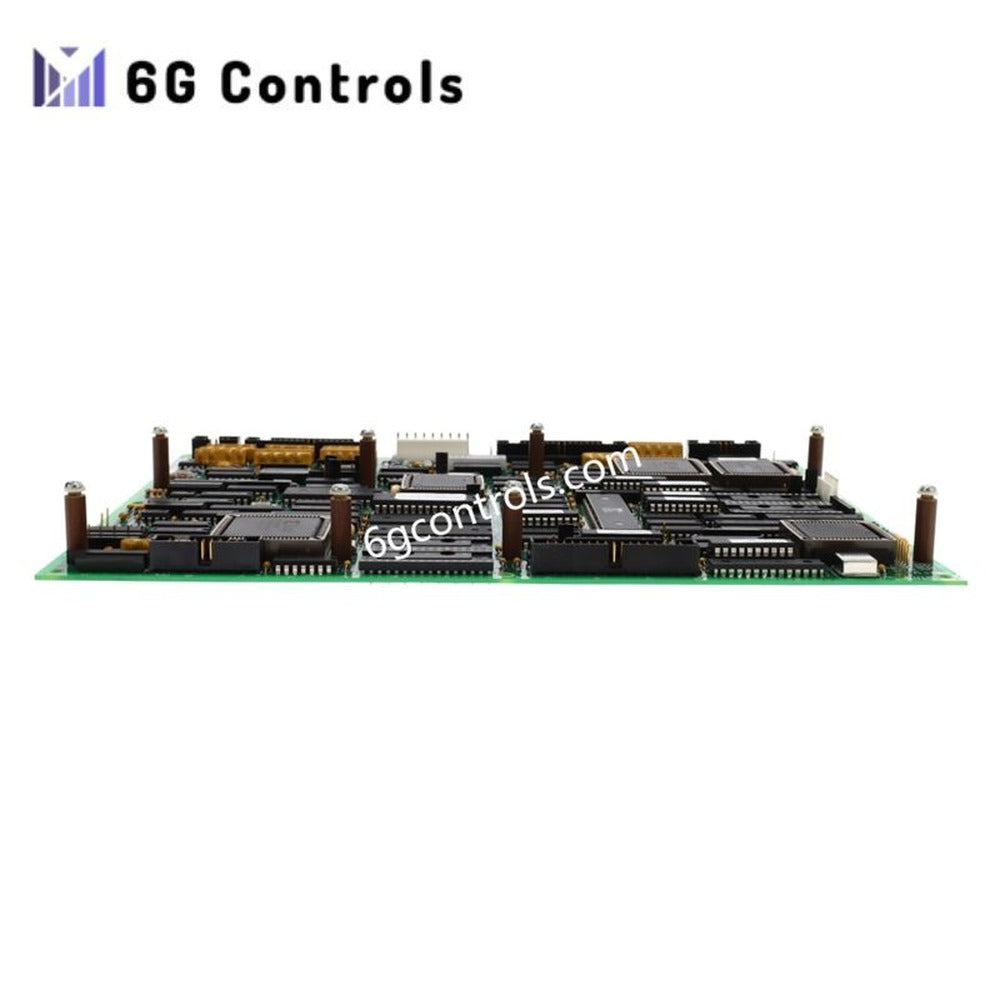

GE DS200SDCCG1A Drive Control Card High Quality

Overview

The GE DS200SDCCG1A is a high-performance Drive Control Card for the GE Mark V Control System. It actively manages AC2000, DC2000, and EX2000 drive applications, including real-time control, I/O processing, and system coordination. The board integrates three microprocessors to handle drive logic, motor control, and high-speed I/O operations. Therefore, it plays a critical role in industrial automation and turbine control environments.

Technical Specifications

• Model: DS200SDCCG1A
• Manufacturer: General Electric (GE)
• System Platform: GE Mark V Control System
• Functional Description: Drive Control Card
• Memory: Onboard RAM and EPROM for firmware and runtime data
• Communication Interfaces: RS-232/485, TTC (Turbine Trip Circuit), backplane bus
• Connectors: 1PL, 2PL, 3PL, 6PL, 7PL, 8PL, 9PL (unused), 11PL
• I/O Handling: Digital and analog signal processing from sensors and actuators
• Operating Temperature: -30°C to 65°C
• Mounting Type: DIN rail or chassis mount with gold-finger connector
• Diagnostics: LED status indicators, fault logging via Mark V HMI (Toolbox)
• Dimensions: 119 mm (W) × 135 mm (D) × 186 mm (H)
• Weight: 1.00 lbs
