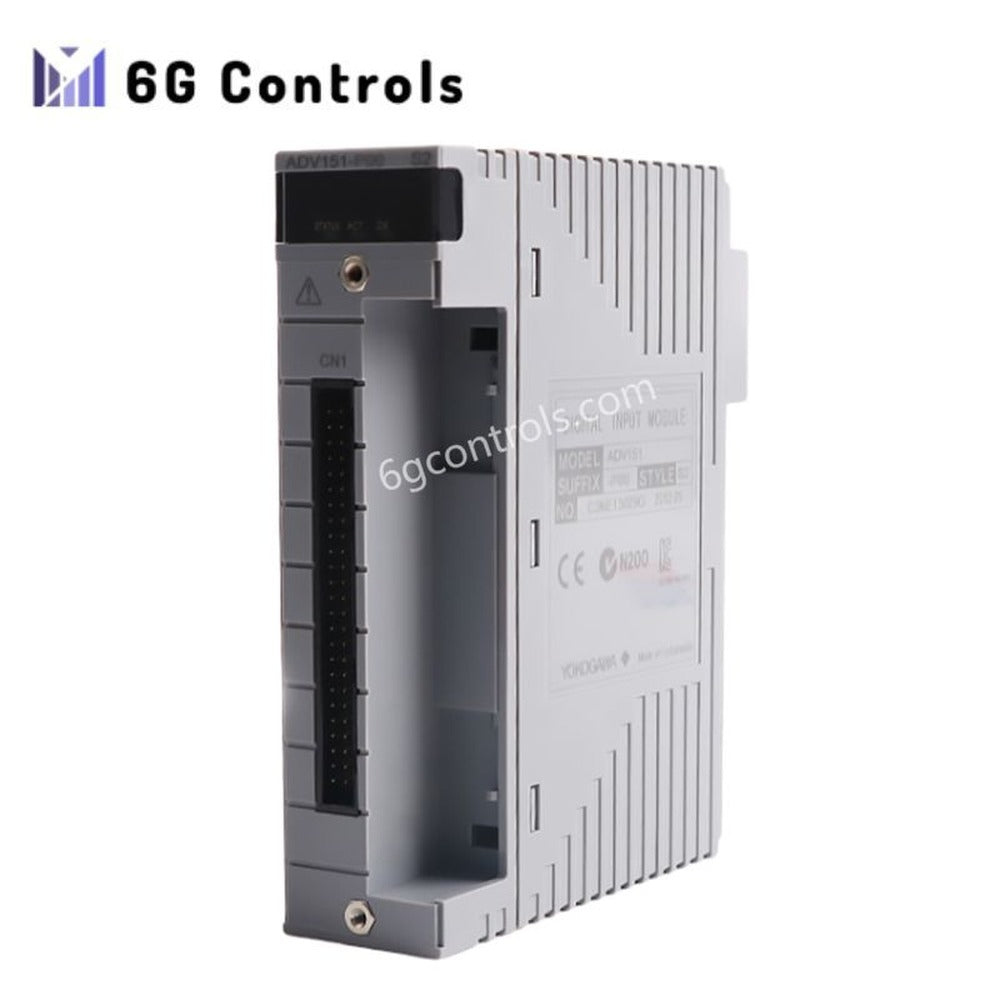

Yokogawa ADV151-P63/D5A00 Digital Input Module

Overview

The ADV151-P63/D5A00 is a high-performance digital input module by Yokogawa Electric Corporation. It supports CENTUM VP and other Field Control Unit (FCU) systems. The module receives 32 channels of 24 V DC ON/OFF signals from field devices, including switches, sensors, and relays.

Technical Specifications

Model: ADV151-P63/D5A00 Manufacturer: Yokogawa Electric Corporation Module Type: Digital Input Module Number of Channels: 32 channels

Electrical Specifications:

• Rated Input Voltage: 24 V DC (sink/source type)
• Input ON Voltage: 18 to 26.4 V DC
• Input OFF Voltage: ≤ 5.0 V DC
• Input Current: 4.1 mA ±20% per channel
• Maximum Input Voltage: 30.0 V DC
• Response Time: ≤ 8 ms (status input)

Isolation:

• Signal to system: 2 kV AC
• Between commons (every 16 channels): 500 V AC

Environmental and Safety:

• ISA G3 compliant
• Operating Temperature: –20°C to +70°C
• Explosion Protection: None (standard type)

Connections and Interface:

• External Connection: Pressure clamp terminal, MIL connector, AKB331 cable
• Interface Adapter: KS Cable Interface Adapter (ATD5A-00)

Mounting and Weight:

• Mounting: ESB Bus Node Unit or Optical ESB Node Unit
• Weight: 0.3 kg

Option Codes:

• Suffix Codes: P = With pushbutton input
• 6 = With status display; no explosion protection
• 3 = With ISA Standard G3 option and –20°C to 70°C temperature range
• Option Code: D5A00 = With KS Cable Interface Adapter for 32-channel digital (ATD5A-00)
