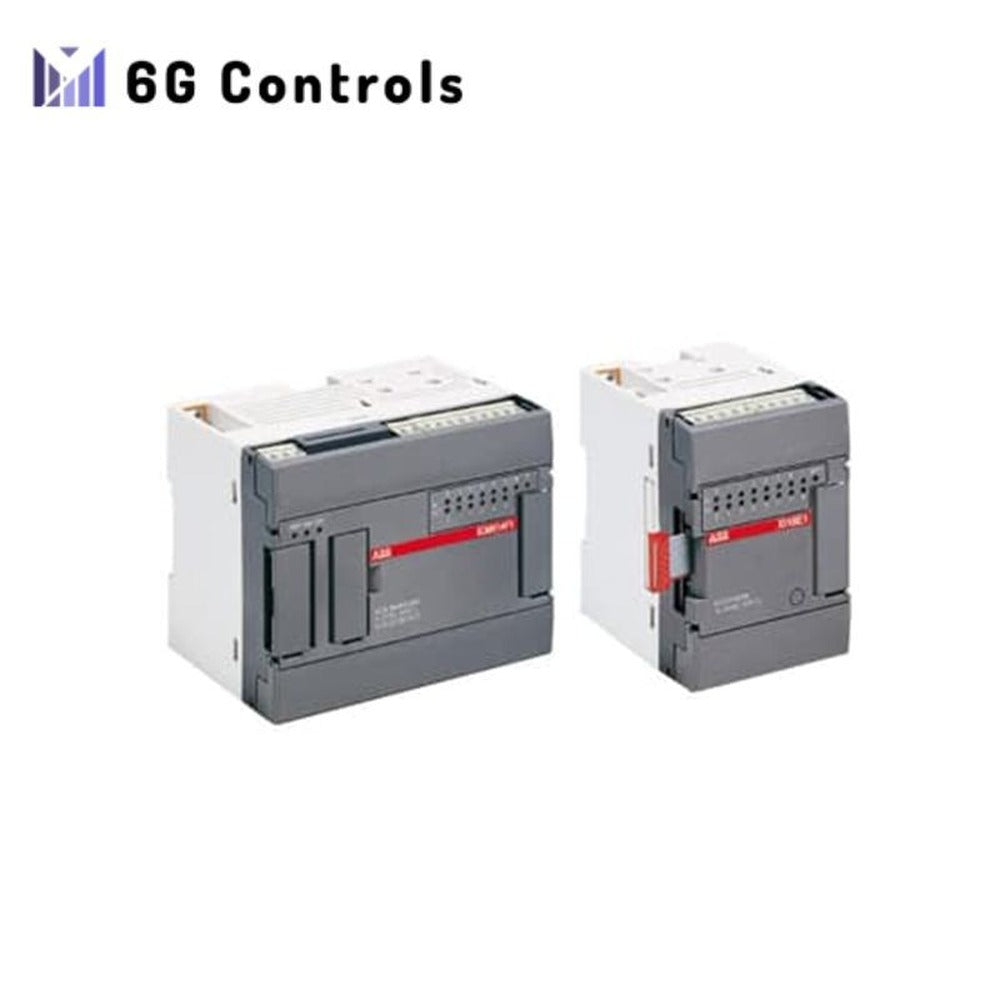

ABB 07CT41 1SBP260022R1001 Central Unit – Transistor Output

General Information

• Extended Product Type: 07CT41
• Product ID: 1SBP260022R1001
• ABB Type Designation: 07CT41
• Catalog Description: 07CT41

  , PLC 8DI/6DO-Trans., 34kB, 24VDC

• Long Description: 07CT41

  , PLC 8DI/6DO-Trans., 34kB, 24VDC

Additional Information

• Ambient Air Temperature:
  • Operation: 0 … +55 °C
  • Storage: -40 … +75 °C
• Battery Type: Portable
• Country of Origin: France (FR), Germany (DE)
• Customs Tariff Number: 85371091
• DNV Certificate: DNV_A-8389
• GL Certificate: GL_17 179-00 HH
• LR Certificate: LR_00-20009-E1

Technical Specifications

• Maximum Hardware Counter Input Frequency: 7 kHz
• Maximum Number of Analog I/Os: 48 AI
• Maximum Number of Digital I/Os: 110
• Memory Size: 34 kB
  • User Data: 4.4 kB
  • User Program: 34 kB
• Output Current: 0.5 A
• Supply Voltage: DC 24 V
• Programming Software: AC31GRAPH, 907AC1131

Dimensions and Weight

• Product Depth: 84 mm
• Product Height: 93 mm
• Product Width: 65 mm
• Gross Weight: 0.8 kg
• Net Weight: 0.35 kg

Mounting

• Mounting on DIN Rail:
  • TH35-15 (35 x 15 mm)
  • TH35-7.5 (35 x 7.5 mm)

Additional Notes

• Real-time Clock: Yes
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
• Quote Only: No
