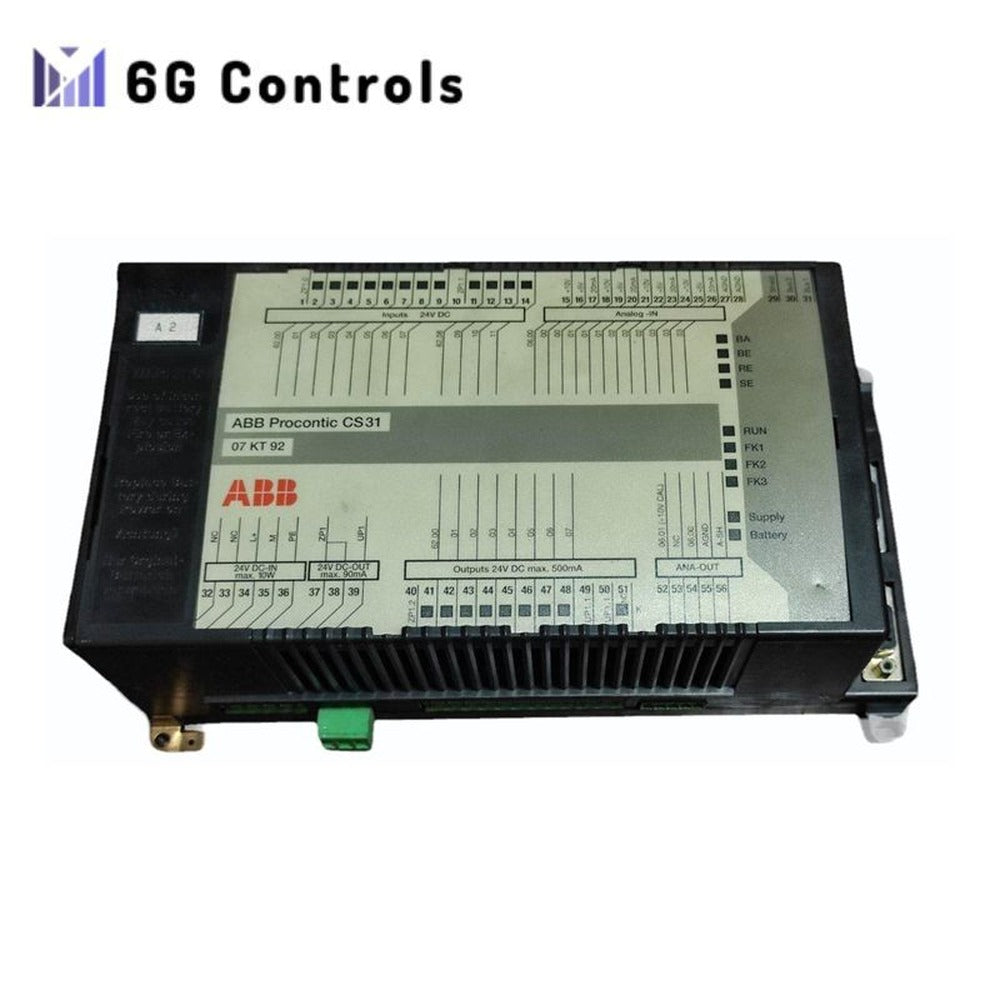

ABB 07KT92 KBACS31 Central Unit Brand New In Stock

Overview of 07 KT 92 Central Unit

The 07 KT 92 serves multiple roles in the ABB Procontic CS31 decentralized automation system. It can function as:

• Bus Master: Controls communication within the system.
• Slave (Remote Processor): Acts as a subordinate in the communication hierarchy.
• Stand-Alone Central Unit: Operates independently without a network connection.

Power Supply

• Operating Voltage: 24 V DC
• Interface: Additional interface for communication modules (e.g., 07 KP 90).

Integrated Features

• ARCnet Coupler: Integrated for enhanced communication.
• ARCnet Interface: Facilitates connectivity.

Main Features

• Binary Inputs:
  • 12 binary inputs
• Binary Outputs:
  • 8 binary transistor outputs
• Analog Inputs:
  • 4 analog inputs
• Analog Outputs:
  • 2 analog outputs
• Counting Input:
  • 1 counting input for frequencies up to 50 kHz
• System Bus Interface:
  • 1 CS31 system bus interface for system expansion
• Serial Interfaces:
  • COM1:
    • Programming interface
    • Can serve as an ASCII interface for peripheral devices (e.g., MMC devices)
  • COM2:
    • Dedicated as an MMC interface
• Real-Time Clock:
  • Maintains accurate time and date
• LED Indicators:
  • Displays binary input/output signals, operating conditions, and error messages
• Detachable Terminal Blocks:
  • Screw-type for easy connections
• Labeling Sheet:
  • Detachable plastic sheet for input/output assignments
• Mounting Options:
  • Fastening via screws or snapping onto a DIN rail
• Battery Backup:
  • Lithium battery 07 LE 90 for:
    • User program backup in RAM
    • Storage of RAM data, such as flag statuses
    • Time and date backup for the real-time clock
• RUN/STOP Switch:
  • Controls program execution
• Diagnosis Functions:
  • Self-Diagnosis: Monitors central unit health
  • System Bus Diagnosis: Checks the ABB Procontic CS31 system bus and connected modules
