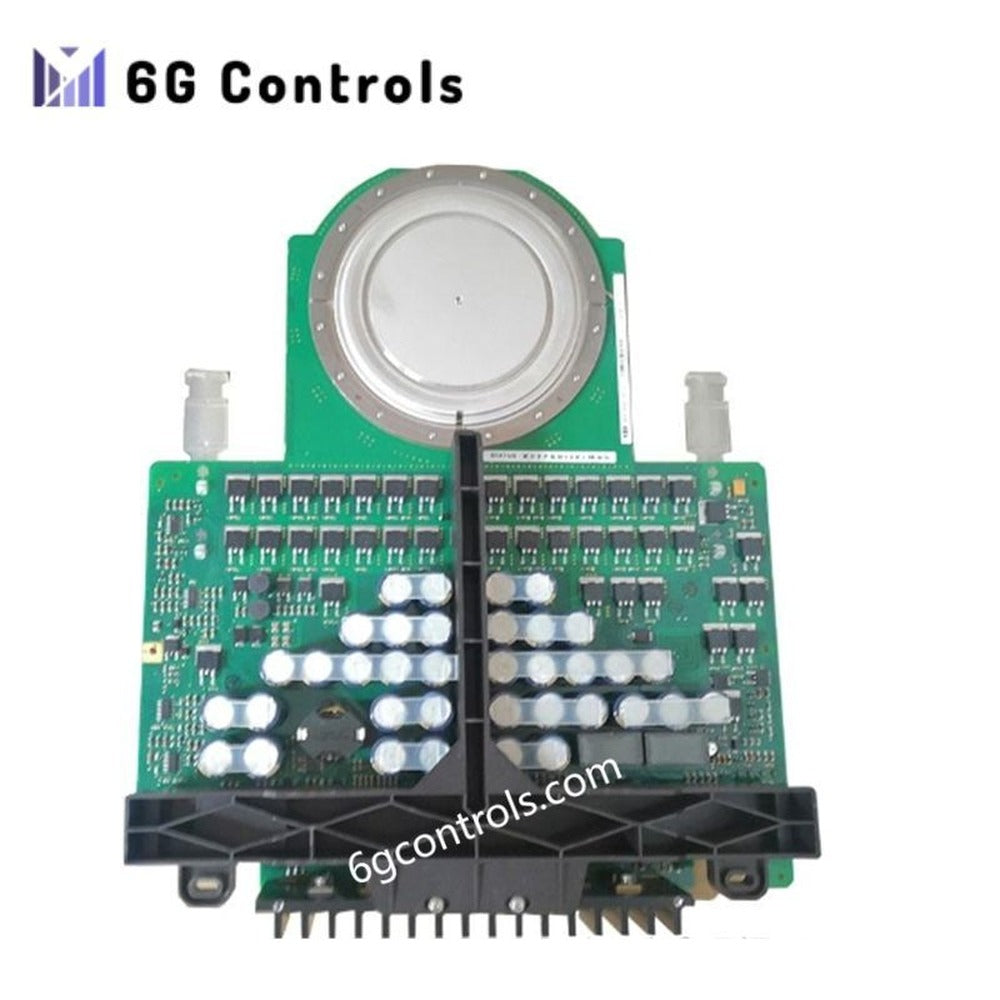

ABB 5SHY4045L0001 3BHB018162R0001 IGCT Module In Stock

Overview

The ABB 5SHY4045L0001 3BHB018162R0001 is an advanced IGCT (Integrated Gate Commutated Thyristor) module designed for high-power applications. It provides fast switching capabilities and high reliability. This module supports demanding environments, including industrial drives, traction, and renewable energy systems. With a high current and voltage rating, it ensures efficient power conversion and control.

Technical Specifications

• Voltage Rating: 4.5 kV
• Current Rating: 4000 A
• Switching Frequency: Up to 1 kHz
• Turn-On Time: < 1 µs
• Turn-Off Time: < 2 µs
• Operating Temperature Range: -40°C to +125°C
• Frequency: 50/60 Hz
• Cooling Method: Natural Cooling
• Protection Level: IP20

Features

• High voltage and current capability
• High switching frequency
• Low turn-on and turn-off times
• High reliability and efficiency

Applications

• Industrial drives
• Traction systems
• Renewable energy systems
• Other high-power applications
