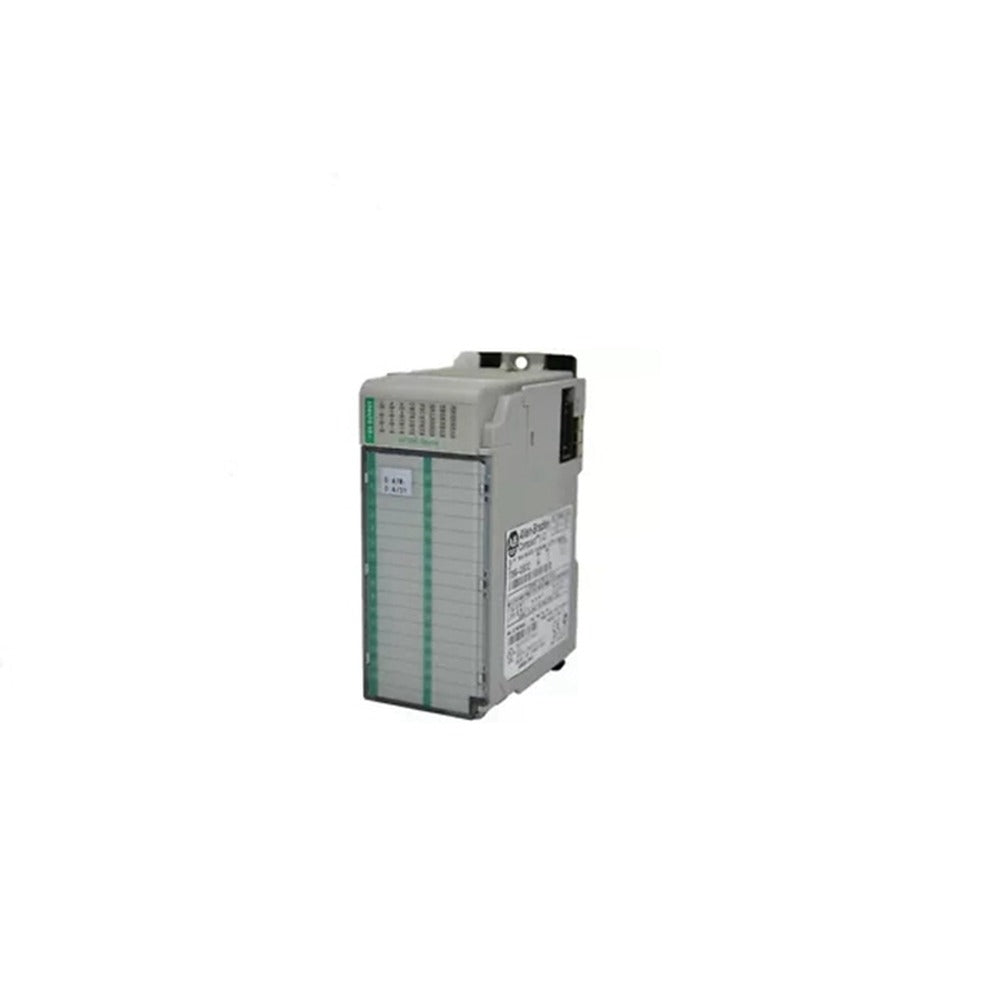

Allen-Bradley 1769-OB32 CompactLogix 32-Point 24V DC Source Output Module

19 in stock

Manufacturer: Allen Bradley
Product No.: 1769-OB32
Country of origin: United States
Product Type: CompactLogix DC Digital Output Module
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.25 kg
Dimensions: 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.)
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Overview

The Allen-Bradley 1769-OB32 is a CompactLogix 32-Point 24V DC Source Output Module. It is a 32-point 24V DC source output module, which can provide 32 current output points, and the current of each output point is 0.5 A.

Specifications:

Product: Allen-Bradley 1769OB32 CompactLogix 32-Point 24V DC Solid-state Source Output Module
Number of Outputs: 32
Voltage Category/Type, Output: 24V DC, sourcing
Voltage Range: 20.4-26.4V DC
Signal Delay (max.) – resistive load:
- Turn-on = 0.1 ms
- Turn-off = 1.0 ms
Leakage Current, Off-State Output, Max.: 1.0 mA @ 26.4V AC
Current per Output, Max.:
- 0.5 A @ 60 °C (140 °F)
- 1.0 A @ 30 °C (86 °F)
Current per Module, Max.:
- 8.0 A @ 60 °C (140 °F)
- 16.0 A @ 30 °C (86 °F)
Backplane Current @ 5.1V: 300 mA

Miscellaneous:

Compact output module can be used as local and distributed output for a CompactLogix or MicroLogix 1500 controller.

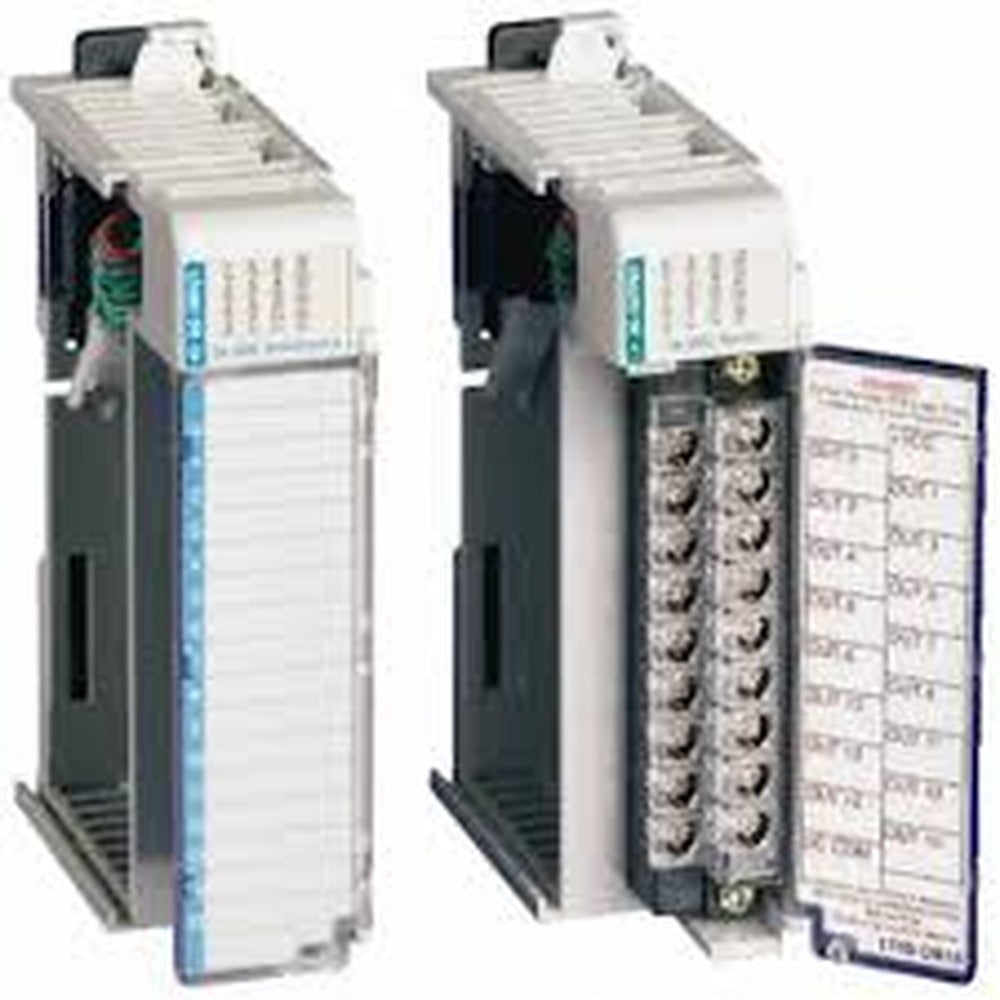

Each 1769-OB32 module includes a built-in removable terminal block with a finger-safe cover for connections to I/O sensors and actuators.
The 1769-OB32 module is a 1.5-slot wide module.
The 1769OB32 module may not be more than 8 modules away from the power supply or controller.

Documentation:

For More Allen-Bradley 1769-OB32 information, Please read the PDF provided by Rockwell:

RESOURCE	PUBLICATION NUMBER
Technical Data	1769-td006
User Manual	1769-UM021
