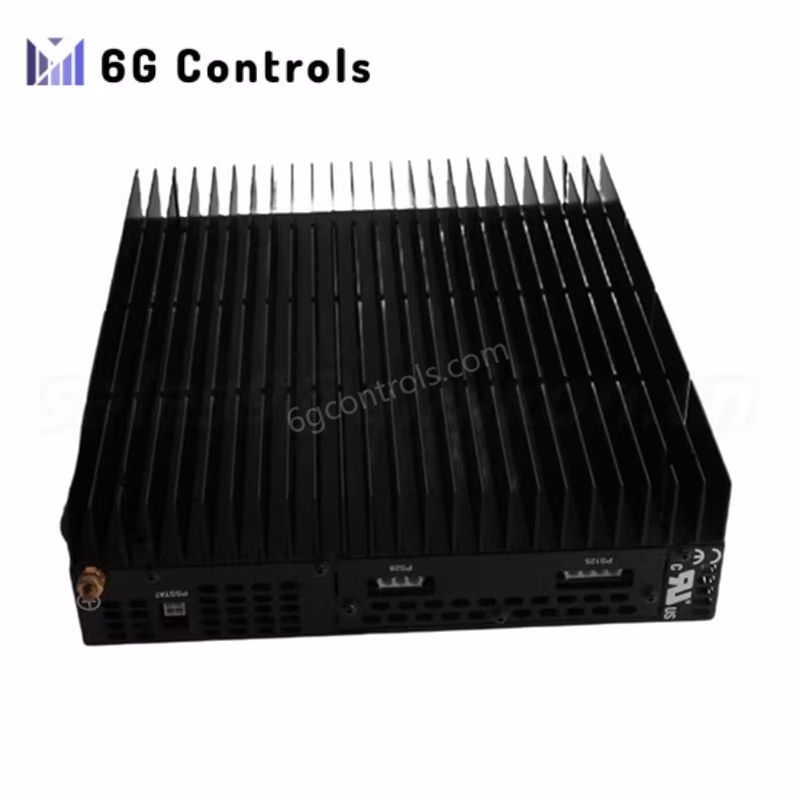

GE IS2020RKPSG2A VME Rack Power Supply Module Brand New

Overview

The GE IS2020RKPSG2A is a high-performance VME Rack Power Supply Module. It delivers reliable power to Mark VI Turbine Control Systems, ensuring consistent operation in demanding industrial environments. This module supports redundant configurations and provides multiple output voltages, making it essential for stable turbine control performance. With selectable input options and integrated diagnostics, it enhances system flexibility and reliability.

Technical Specifications

• Manufacturer: GE (General Electric)
• Series: SPEEDTRONIC Mark VI Turbine Control
• Type: VME Rack Power Supply Module
• Application: GE Mark VI Turbine Control Systems

Electrical

• Input Voltage: 125 V DC or 24 V DC (selectable)
• Total Output Power: 400 W
• Output Voltages: +5 V DC, ±12 V DC, ±15 V DC, ±28 V DC
• Optional Output: 335 V DC for flame detector applications
• Redundant Support: Yes, supports redundant power configurations

Mechanical

• Weight: 7 lbs
• Dimensions: 263 × 138 × 88 mm
• Board Size: Approx. 6.25 × 4.25 inches
• Cooling: Integrated metal fins for passive heat dissipation
• PCB Coating: Standard (normal) coating

Connectivity

• Top Connectors: PSA, PSB
• Bottom Connectors: PS125 or PS24, PS335, PS28, PSSTAT

Front Panel Features

• Indicators: Three LEDs (yellow, red, green) for status monitoring
• Switch: Power control switch with clear labeling
• Label Slot: Space for catalog, revision, and serial number tags

Environmental

• Operating Temperature: 0°C to 60°C
• Standards Compliance: EN61347-2-1 for power supply safety
