Product Description

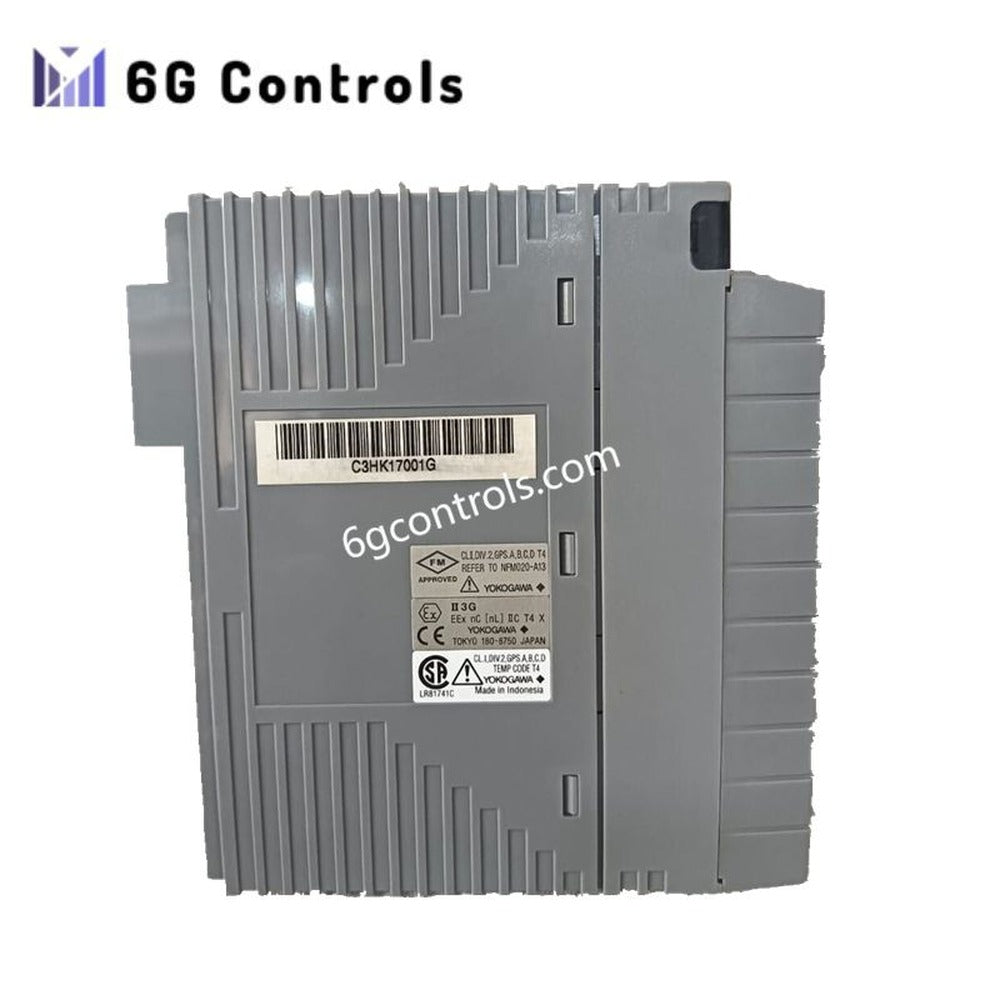

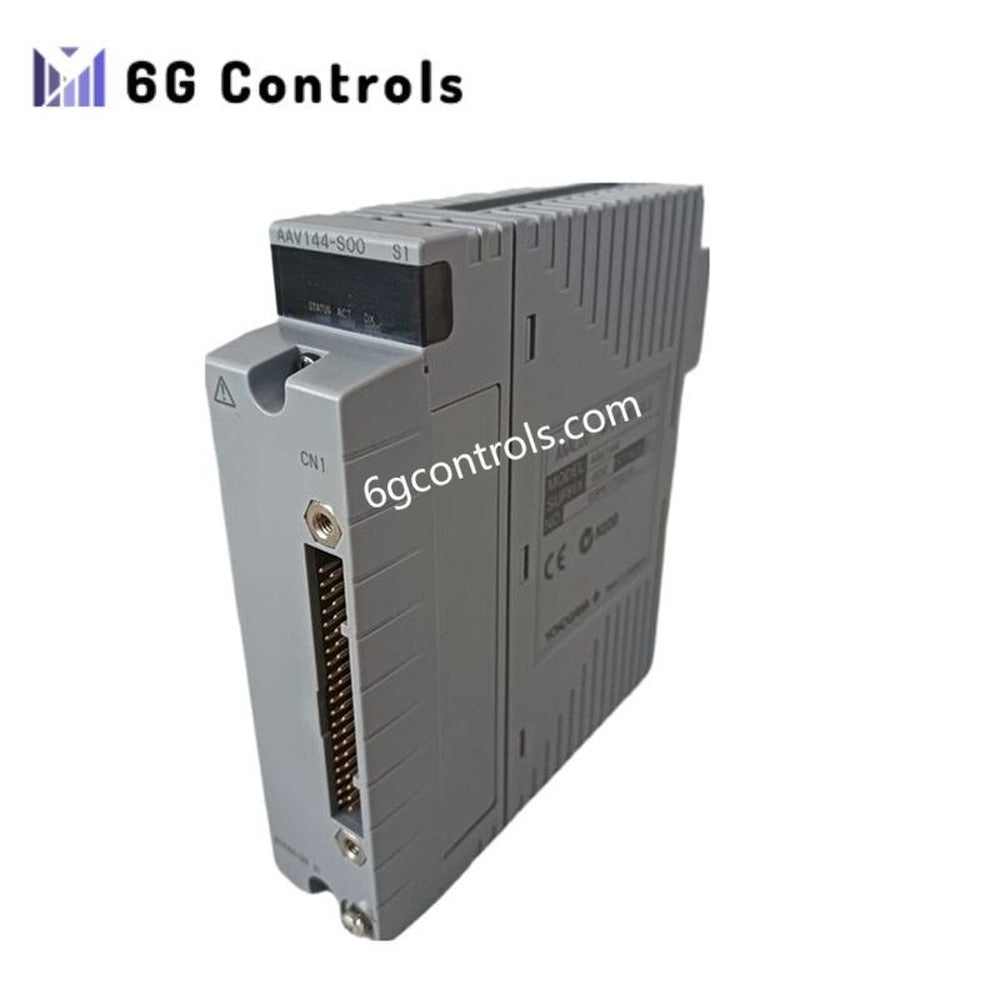

The AAV144-S00/K4A00 is an analog voltage input module developed by Yokogawa for integration into its Field Control Station (FCS) platforms. The module is engineered to acquire field-level DC voltage signals and convert them into high-resolution digital data for use in control, monitoring, and safety-related applications.
Designed with channel-to-channel isolation and robust signal conditioning, this module ensures reliable measurement performance even in electrically noisy or harsh industrial environments. Its compact rack-mount form factor allows efficient installation within distributed control and safety systems where space, accuracy, and long-term stability are critical.
Technical Design and Performance
Each input channel of the AAV144-S00/K4A00 operates independently with electrical isolation to minimize interference from ground loops and transient noise. The module employs precision A/D conversion and internal digital filtering to maintain signal integrity across a wide operating temperature range.
This voltage input module is optimized for continuous operation in demanding process industries, supporting stable measurements over extended service life with minimal drift.
Technical Specifications
- Model: AAV144-S00/K4A00
- Module Type: Analog Voltage Input
- Number of Input Channels: 8 isolated channels
- Input Signal Type: DC voltage
- Standard Input Range: 0–10 V DC (configurable by system settings)
- Measurement Accuracy: ±0.1% of reading (typical)
- Isolation: Channel-to-channel and channel-to-system isolation
- Signal Processing: High-resolution A/D conversion with digital filtering
- Power Supply: 24 V DC (via system backplane)
- System Interface: Yokogawa FCS internal bus
- Mounting Method: Rack-mounted I/O module
- Dimensions: 107.5 × 130 × 32.8 mm
- Weight: 0.3 kg
- Operating Temperature Range: -40°C to +80°C
- Storage Temperature Range: -40°C to +85°C
- Ambient Humidity: 5% to 95% RH, non-condensing
System Compatibility
The AAV144-S00/K4A00 is fully compatible with Yokogawa Field Control Station architectures and integrates seamlessly with corresponding I/O bases and control processors. Configuration and diagnostics are performed through Yokogawa engineering tools, enabling efficient commissioning and maintenance.
Typical Applications
- Voltage-based process signal acquisition in chemical processing plants
- Integration into safety and monitoring systems for oil and gas facilities
- Electrical measurement and control functions in power generation systems
Frequently Asked Questions
Q: Can this module accept current input signals?
A: No. The AAV144-S00/K4A00 is designed exclusively for DC voltage inputs. Yokogawa offers separate modules for analog current signals.
Q: Is the module suitable for safety-related systems?
A: Yes. It can be used within Yokogawa safety-type FCS configurations, subject to overall system design and certification.
Q: How is the input range configured?
A: Input ranges are defined via the Yokogawa system engineering software during configuration.
