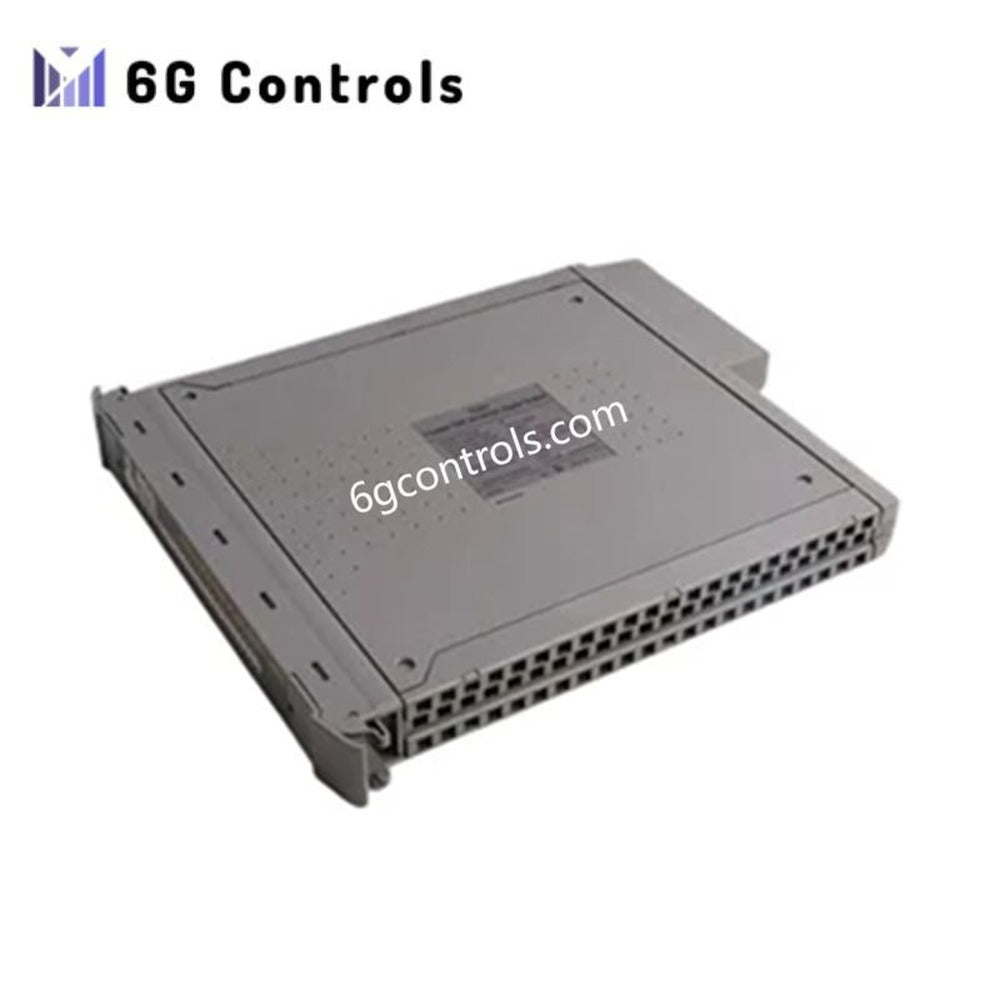

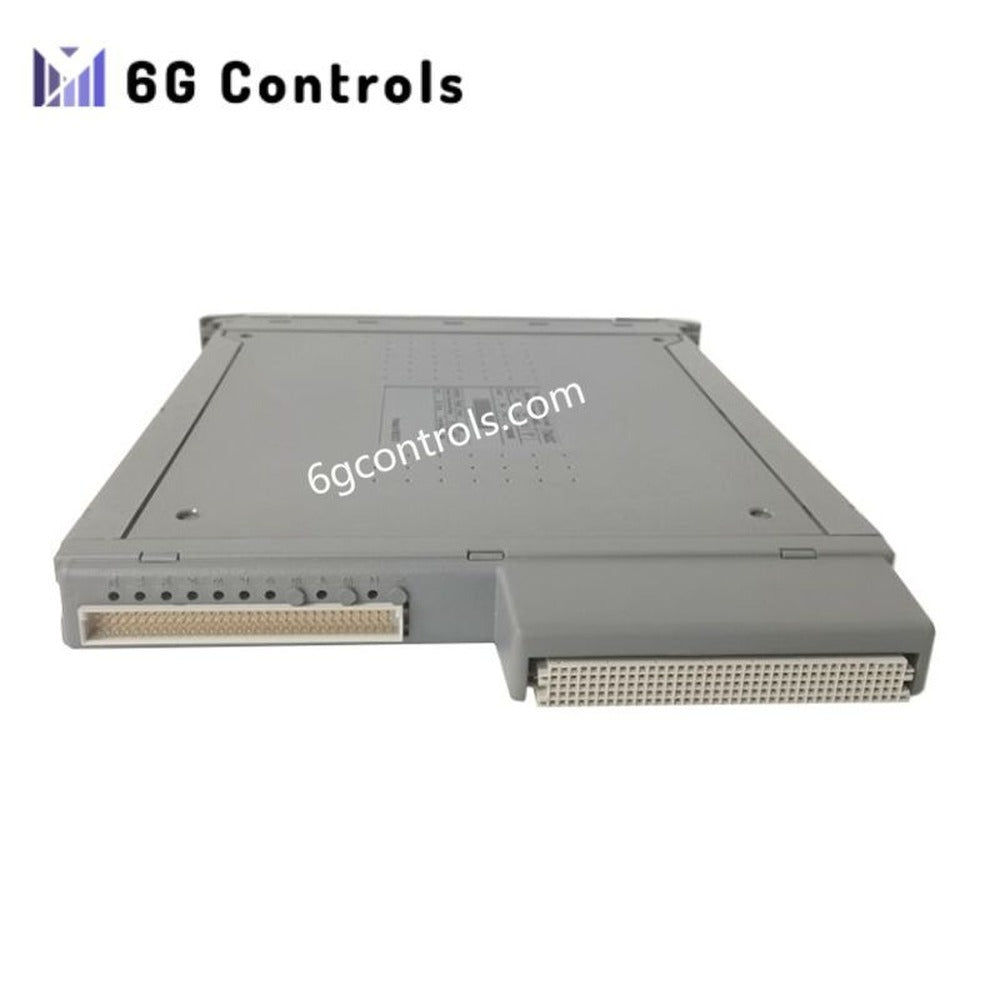

ICS Triplex T8403 Triple Modular Redundant Digital Input Module

Configured for fault-tolerant digital signal acquisition in the Trusted 8000 Safety Instrumented System (SIS), the ICS Triplex T8403 (T8403 Digital Input Module) provides direct physical/electrical execution for 40-channel discrete input monitoring with TMR 2oo3 voting architecture and SOE event capture.

Hardware Specifications

Parameter	Specification
Model	T8403
Brand	ICS Triplex
Origin	United Kingdom
Weight	1.18 kg
Dimensions	266 mm x 31 mm x 303 mm
Operating Temp	-5 deg C to +60 deg C
Power Consumption	15-20 W typical, 29 W maximum
Module Type	Triple Modular Redundant (TMR) Digital Input Module
Input Channels	40 discrete digital input channels
Input Voltage	24 VDC nominal, -6 VDC to +36 VDC measurement range
Input Impedance	Approximately 5 kOhm
Voting Architecture	Hardware 2oo3 voting with triplicated internal processing
Isolation	2500 VAC opto-galvanic isolation between field wiring and internal slices
Sequence of Events	1 ms resolution SOE logging
Diagnostics	Open/short circuit detection, slice discrepancy monitoring, automatic self-test
Form Factor	6U VME-style rack card with SmartSlot/Companion slot hot-swap support
Humidity	10%-95% RH non-condensing
Certification	IEC 61508 SIL3, CE, ATEX Zone 2, Class I Div 2

Triple Modular Redundant Safety Input Architecture

The T8403 implements a triplicated input processing structure for safety instrumented applications. Each field input is internally monitored across three independent slices, with hardware 2oo3 voting used to maintain input state evaluation when one processing path experiences a fault. The module provides channel-level diagnostics including open circuit detection, short circuit detection, slice mismatch monitoring, and periodic self-test execution. The module supports 1 ms Sequence of Events (SOE) recording with timestamp processing for event analysis in SIS applications. The field interface uses opto-galvanic isolation to separate external wiring from internal safety processing circuits.

Frequently Asked Questions (FAQ)

Q: Does the T8403 support hot-swapping within the Trusted 8000 rack system? A: The T8403 uses the 6U VME-style rack format and supports hot-swap installation through the SmartSlot/Companion slot configuration. Module replacement should follow the system maintenance procedure. Q: How does the T8403 execute fault tolerance for digital inputs? A: The module uses a Triple Modular Redundant architecture with internal triplicated input processing and hardware 2oo3 voting logic to evaluate field input states. Q: What isolation method is used between field signals and internal electronics? A: The T8403 provides opto-galvanic isolation between field wiring interfaces and internal processing slices, with a rated isolation level of 2500 VAC.

Field Installation Guidelines

Install the T8403 module in the designated Trusted 8000 SIS rack position and verify rack power isolation before insertion or removal. Ensure field wiring is correctly terminated according to the approved cabinet drawings and module terminal assignments. Use shielded signal cables where required by the installation environment. Connect cable shields according to the site grounding standard, avoiding multiple uncontrolled grounding points that may introduce signal interference. Separate digital input wiring from high-voltage power cables, switching circuits, and sources of electromagnetic noise. Verify field contact polarity, 24 VDC supply reference, and input loop continuity before commissioning. Confirm module diagnostics, channel status indicators, and system voting status after installation.
