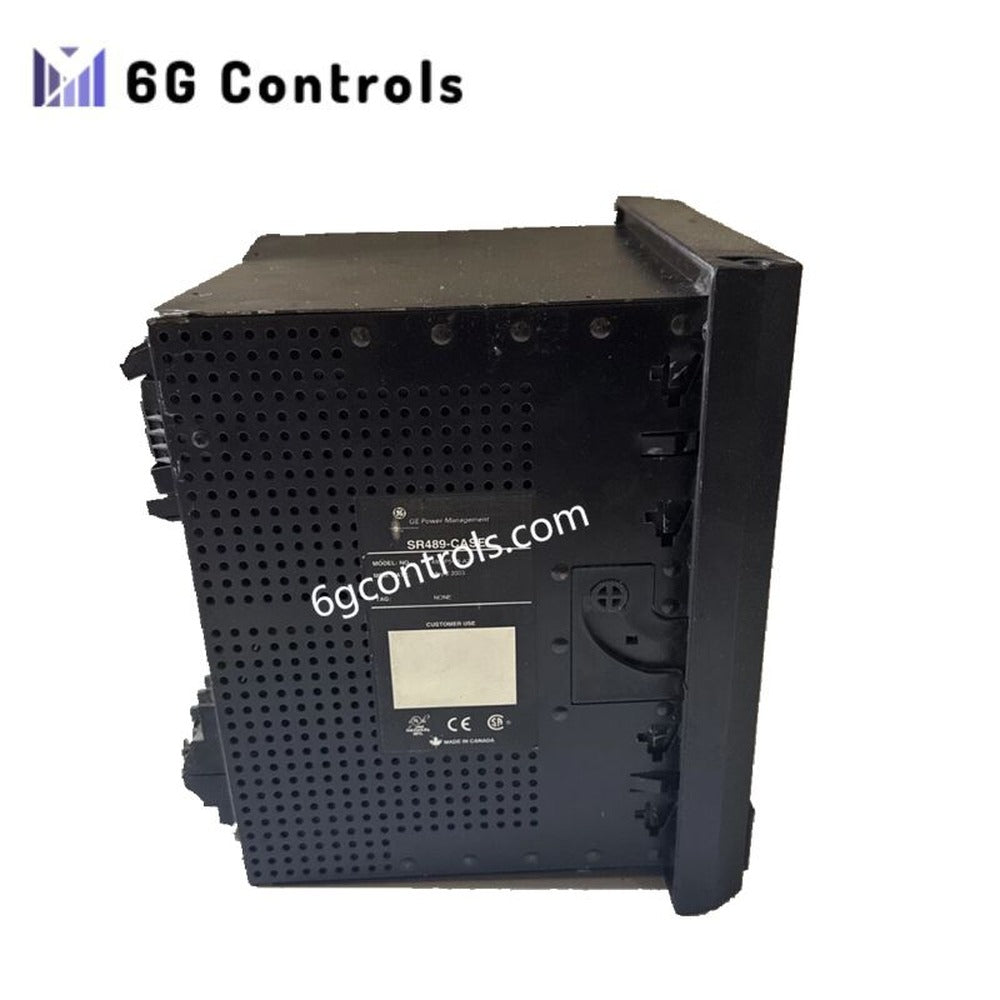

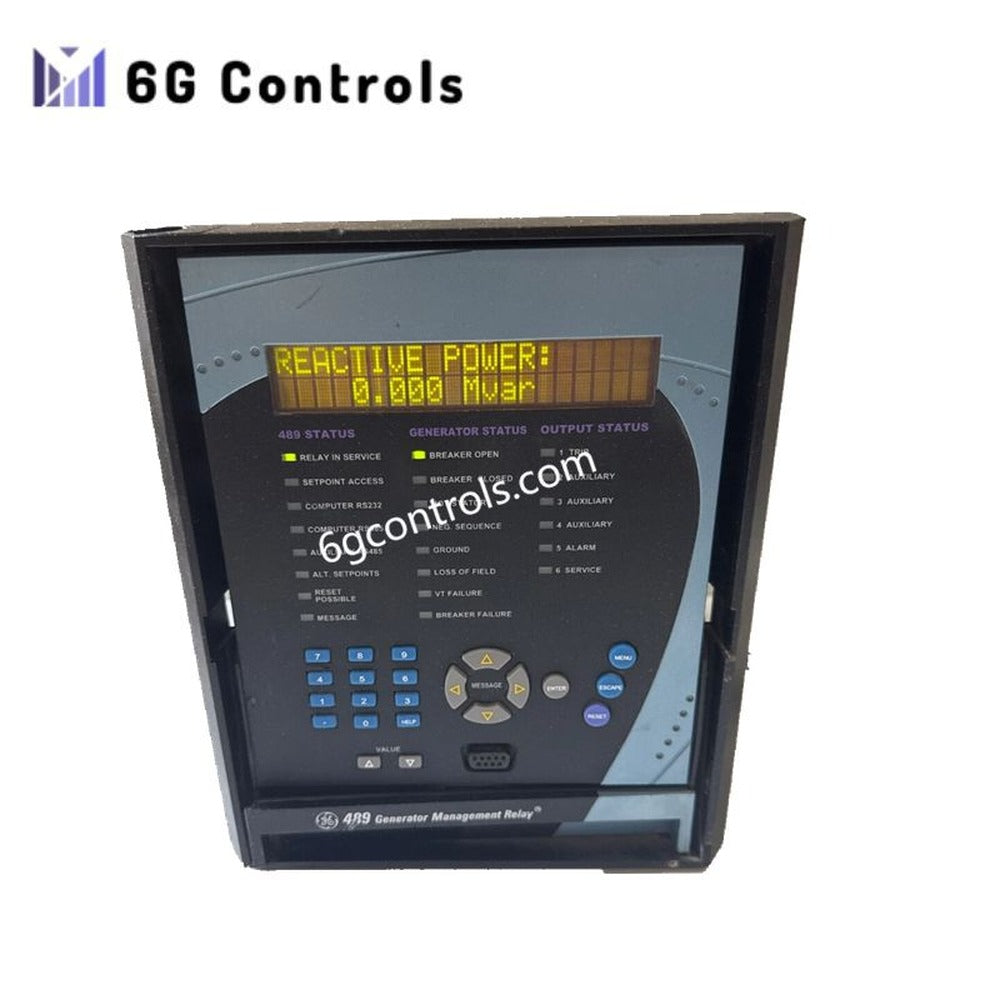

GE Multilin 489-P5-HI-A20 Generator Management Relay

Product Description

The GE Multilin 489-P5-HI-A20 is a state-of-the-art Generator Management Relay designed for comprehensive protection, control, and monitoring of medium to large generators. It combines advanced microprocessor-based algorithms with modular design to ensure reliable operation in demanding industrial environments. Moreover, it provides precise real-time measurement, fault detection, and event recording, enabling operators to maintain safe and efficient generator performance.

This relay safeguards generators against overcurrent, ground faults, loss of excitation, over/under voltage, and frequency anomalies. In addition, its high-accuracy 4–20 mA analog outputs and multiple communication protocols ensure seamless integration into SCADA and DCS systems. Engineers benefit from its rugged design, wide control power range, and intuitive LCD interface for straightforward configuration and monitoring.

​Key Features

• Comprehensive protection functions in a single device, reducing the need for multiple relays.
• Wide control power range (90–300 VDC / 70–265 VAC) suitable for diverse industrial setups.
• High-accuracy current measurement with ±1% of full-scale precision for dependable monitoring.
• Multiple communication protocols: Modbus, DNP 3.0, IEC 61850, and Ethernet for flexible system integration.
• Event recording and trip signaling outputs for effective fault analysis and preventive maintenance.
• Rugged industrial design ensures consistent operation across extreme environmental conditions.

Technical Specifications

Electrical Characteristics

• Control Power: 90–300 VDC, 70–265 VAC (48–62 Hz)
• Phase Current Inputs: 5 A CT secondaries (P5)
• Analog Outputs: 4–20 mA (A20)
• Fuse Type: 5×20 mm HRC SLO-BLO, Littelfuse 215-02.5
• Impulse Voltage Withstand: 5 kV
• EFT Standard: IEEE/ANSI C37.90.1
• RS485 Baud Rates: 300, 1200, 2400, 4800, 9600, 19200

Protection Functions

• Overcurrent and Ground Fault Protection
• Loss of Excitation Detection
• Over/Under Voltage Protection
• Over/Under Frequency Protection
• Reverse Power and Unbalanced Load Protection
• Event Recording and Trip Signaling

Mechanical & Environmental

• Ingress Protection: IP20–IP40 (depending on configuration)
• Operating Temperature: –20 °C to +70 °C
• Dimensions: 22 × 23 × 25 cm
• Weight: 7.34 kg

Typical Applications

• Power generation plants requiring reliable generator protection.
• Industrial facilities with large-scale motors and generators.
• Utility substations and distributed energy resources for grid stability.
• Integration with SCADA/DCS systems for real-time monitoring and control.

Support & Reliability

The 489-P5-HI-A20 comes factory-packaged and ready for installation. Moreover, it is backed by a standard three-year warranty and supports preventive maintenance strategies. Its robust design ensures continuous operation even in harsh industrial environments, reducing unplanned downtime and maintenance costs.

FAQ

Q: What types of generators can this relay protect? A: It is suitable for medium to large synchronous generators in power plants, industrial, and utility applications.

Q: Which communication protocols are supported? A: Modbus, DNP 3.0, IEC 61850, and Ethernet are supported for SCADA/DCS integration.

Q: Can it measure both voltage and current parameters? A: Yes, it measures phase currents (5 A CT input) and voltage for comprehensive protection.

Q: What environmental conditions can it operate under? A: The relay operates in –20 °C to +70 °C environments with IP20–IP40 protection, depending on configuration.
