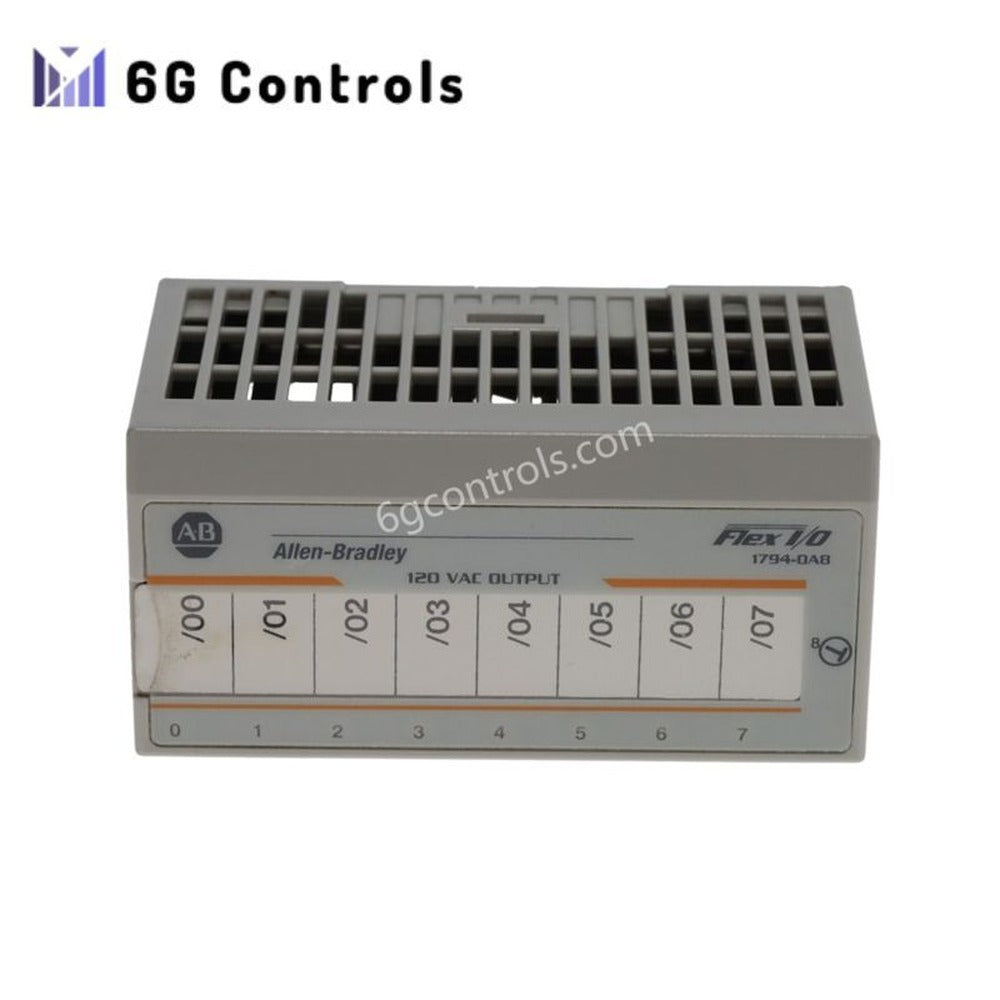

Allen Bradley 1794-OA8 Digital Output Module In Stock

12 in stock

Manufacturer: Allen Bradley
Product No.: 1794-OA8
Country of origin: USA
Product Type: Digital Output Module
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.109 kg
Dimensions: 27.9 cm x 2.5 cm x 17.8 cm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Overview

The Allen-Bradley 1794-OA8 is a digital output module designed for industrial automation. It features 8 non-isolated outputs and operates at 120V AC. This module is part of the Flex I/O product line by Rockwell Automation and is suitable for use in non-hazardous and Class 1, Division 2 hazardous environments. It provides excellent diagnostic capabilities, reducing start-up time and troubleshooting efforts. The 1794-OA8 is installed directly onto various terminal base units and can handle significant power and thermal dissipation.

Technical Specifications

Manufacturer: Rockwell Automation
Brand: Allen-Bradley
Part Number: 1794-OA8
Product Type: Flex I/O Digital Output Module
Outputs: 8 non-isolated digital outputs
Output Voltage: 120V AC (Nominal)
Output Current Rating: 4.0A (Maximum)
On-state Current (Min.): 5mA per output
On-state Voltage Drop: Max 1.0V @ 0.5A
Off-state Leakage Current: Max 2.25mA
FlexBus Current: 80mA @ 5V DC
Power Dissipation: Max 4.1W @ 0.5A, 6.3W @ 0.75A, 6.3W @ 1A
Thermal Dissipation: Max 14.0 BTU/hr @ 0.5A, 21.2 BTU/hr @ 0.75A, 21.4 BTU/hr @ 1A
Surge Current: 7 Amps for 40 milliseconds, repeatable every 8 seconds
Output Signal Delay: Max 1/2 cycle for both ON to OFF and OFF to ON states
Output Voltage Range: 85 to 132 Volts AC
Operating Temperature: Max 55°C for 500mA output, Max 35°C for 750mA output
Isolation Voltage: 120V Continuous
Weight: 0.24 lbs
