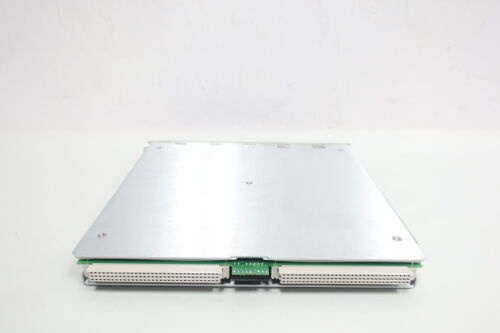

Bently Nevada 176449-04 3500/45 Position Monitor Brand new in Stock

16 in stock

Manufacturer: Bently Nevada
Product No.: 176449-04 3500/45
Country of origin: United States
Product Type: Position Monitor
Condition: Brand New
Payment: T/T, Western Union
Weight: 1.36 kg
Dimensions: 19.05 x 12.7 x 8.89 cm (7.5 x 5 x 3.5 in)
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Description

The Bently Nevada 176449-04 3500/45 Position Monitor is a 4-channel instrument that accepts input from proximity transducers, Rotary Position Transducers (RPTs), DC Linear Variable Differential Transformers (DC LVDTs), AC Linear Variable Differential Transformers (AC LVDTs), and rotary potentiometers. The monitor conditions the input and compares the conditioned signals with user-programmable alarms. You can program each channel using the 3500 Rack Configuration Software to perform the following functions:

Axial (thrust) Position
Differential Expansion
Standard Single Ramp Differential Expansion
Non-standard Single Ramp Differential Expansion
Dual Ramp Differential Expansion
Complementary Differential Expansion
Case Expansion
Valve Position

The monitor channels are programmed in pairs and can perform up to two of these functions at a time. For example, Channels 1 and 2 can perform one function while channels 3 and 4 may perform the same or a different function. The primary purpose of the 3500/45 Position Monitor is to provide the following:

Machinery protection by continuously comparing monitored parameters against configured alarm setpoints to drive alarms.
Essential machine information for operations and maintenance personnel.

Each channel, depending on configuration, typically conditions its input signal to generate various parameters called measured variables. You can establish alert setpoints for each active measured variable and danger setpoints for any two of the active measured variables.

Technical Specifications

Vibration measurement range: 0.01 to 1000 Hz
Accuracy: ±0.25% of reading
Temperature range: -40 to 85°C
Power supply: 12 to 36 VDC
Dimensions: 100 x 70 x 40 mm
Weight: 0.2 kg
