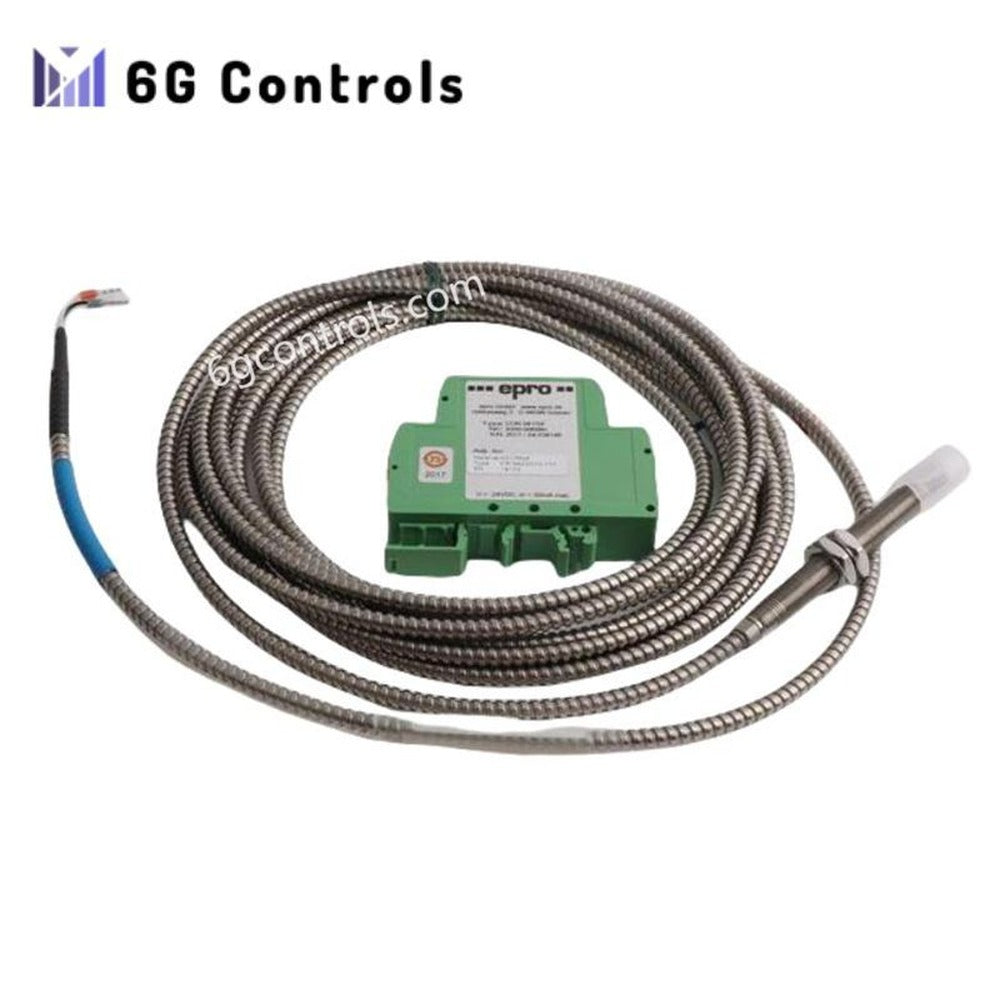

EPRO CON021+PR6423/13R-010 Eddy Current Sensor System

Overview

The EPRO CON021 + PR6423/13R-010 system delivers reliable, non-contact measurement in industrial machinery monitoring. It commonly monitors vibration, shaft displacement, and position in critical machines like turbines, compressors, and industrial pumps.

CON021 Signal Converter Specifications

The CON021 processes real-time signals from the PR6423 sensor for monitoring and diagnostics.

• Frequency Range: Operates from 0 to 20,000 Hz efficiently.

• Rise Time: Achieves less than 15 microseconds rise time quickly.

• Operating Temperature: Supports -30°C to +100°C for wide applications.

• Protection Class: Provides IP20 protection for indoor use.

• Power Supply: Requires -23V to -32V DC for stable operation.

• Output Range: Offers -4V to -20V or -2V to -18V signals.

• Housing Material: Uses LMgSi 0.5 F22 for lightweight durability.

• Mounting: Installs easily with 4 x M5x20 screws.

• Transducer Port: Features a self-locking Lemo plug for secure connection.

• Power/Output Connection: Utilizes a screw terminal supporting 1.5mm² wire.

PR6423/13R-010 Displacement Sensor Specifications

The PR6423/13R-010 provides high-resolution, non-contact displacement measurements accurately.

• Measurement Range: Measures up to 2 mm precisely.

• Initial Air Gap: Starts at a 0.5 mm gap reliably.

• Sensitivity: Delivers 8 V/mm ±5% sensitivity consistently.

• Sensor Temperature: Handles -35°C to +180°C environments robustly.

• Cable & Connector Temperature: Endures up to 150°C steadily.

• Protection Class: Ensures IP66 protection against dust and water.

• Sensor Tip Material: Utilizes PEEK for chemical and temperature resistance.

• Sensor Case Material: Employs stainless steel for enhanced durability.

• Cable Sheath Material: Protects with PTFE for flexibility and strength.

• Cable Length: Includes a typical 5-meter cable based on code "13R-010".
