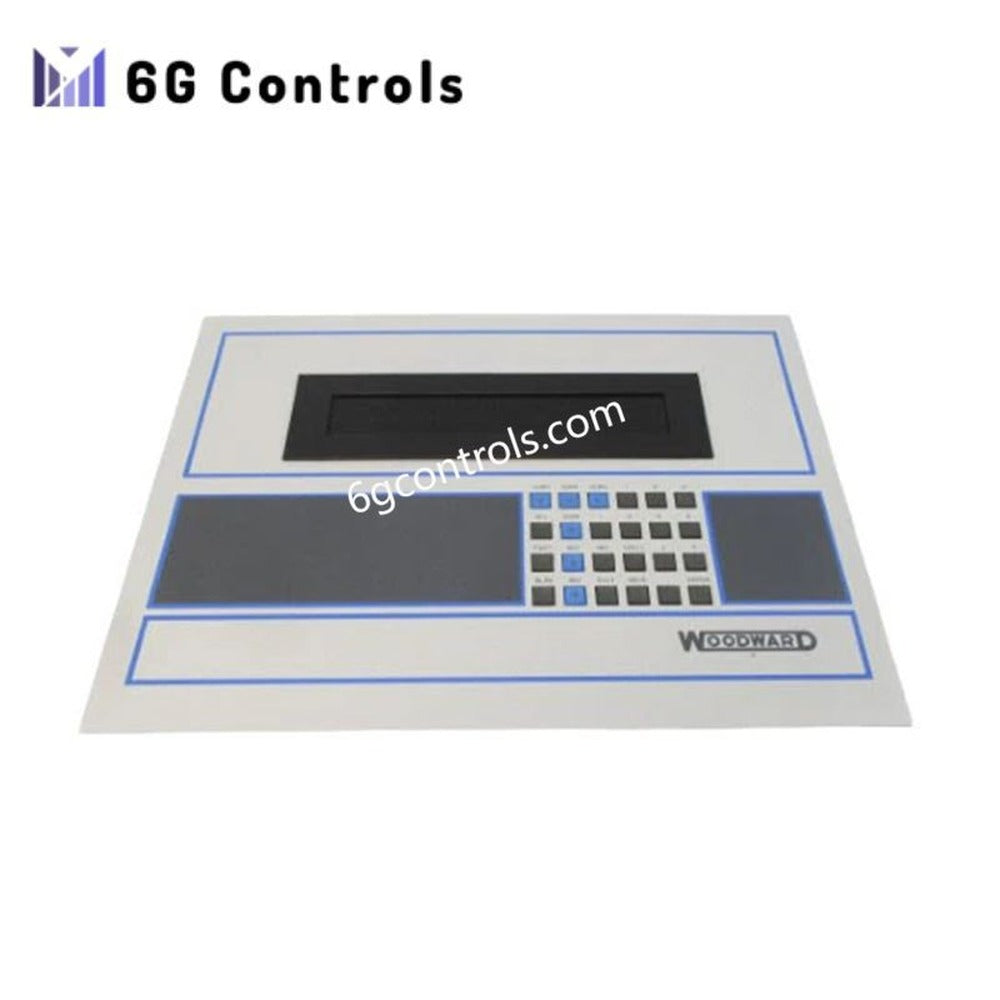

Woodward 5453-203 MicroNet Operator Interface Display Panel

Product Description

The Woodward 5453-203 is a compact operator interface panel engineered for direct interaction with Woodward MicroNet digital control platforms. It functions as a local human–machine interface, allowing operators and maintenance personnel to observe system conditions, acknowledge alarms, and issue basic commands without the need for a full supervisory workstation.

Designed for continuous operation in demanding industrial environments, this panel combines a simple two-line alphanumeric display with tactile navigation keys, providing reliable on-site access to turbine and machinery control data.

Display and Operator Interface

The 5453-203 uses a two-row alphanumeric LCD optimized for clear readability under varying lighting conditions. The display presents controller status, alarm messages, and selected operating parameters in real time.

Operator interaction is handled through an integrated keypad, enabling menu navigation, command confirmation, and alarm acknowledgment directly at the control cabinet or field enclosure.

Communication and System Integration

This operator panel connects directly to compatible MicroNet controllers using standard serial interfaces. Communication options depend on controller configuration and firmware but typically include:

• RS-232 serial communication
• RS-422 differential serial communication
• DB9 connector interface

Supported protocols may include Modbus and CAN-based communications, depending on the MicroNet system architecture and application requirements.

Electrical Specifications

The Woodward 5453-203 is primarily designed for low-voltage DC operation when installed as part of a MicroNet control system.

• Nominal supply voltage: 12 VDC
• Typical current consumption: approximately 650 mA

Certain enclosure or panel-mount variants listed by distributors may support AC input power. These versions use internal power conditioning and should be verified by exact variant or enclosure configuration before installation.

Environmental and Reliability Characteristics

Built for industrial duty, the panel is rated for extended temperature operation and resistance to harsh control-room and field conditions.

• Operating temperature range (MicroNet specification): −40 °C to +70 °C
• Alternate industrial enclosure rating: −20 °C to +60 °C
• Designed for high-humidity industrial environments in accordance with manufacturer guidelines

Mechanical and Mounting Information

Published dimensional data for the 5453-203 varies across manufacturer documentation and third-party listings. These differences reflect alternative enclosure designs, mounting styles, or front-panel assemblies rather than changes in core electronics.

Typical configurations include compact panel-mount housings as well as deeper industrial enclosures intended for cabinet installation. Weight and depth may vary accordingly.

Functional Role and Applications

The Woodward 5453-203 serves as a local control and monitoring interface in systems such as:

• Gas turbine control packages
• Industrial engine management systems
• Generator and compressor control panels
• Distributed MicroNet-based automation architectures

It is commonly used where immediate, on-site access to controller information is required without deploying a full graphical HMI.

Frequently Asked Questions

Is the 5453-203 a programmable HMI? No. This unit is an operator interface and display panel. Configuration and logic remain within the MicroNet controller.

Can this panel replace a touchscreen HMI? It is intended for basic monitoring and command entry. For advanced visualization or trending, a graphical HMI is typically used alongside this panel.

Are all versions powered by 12 VDC? The standard MicroNet version is 12 VDC. AC-powered variants are enclosure-specific and should be confirmed before ordering.
