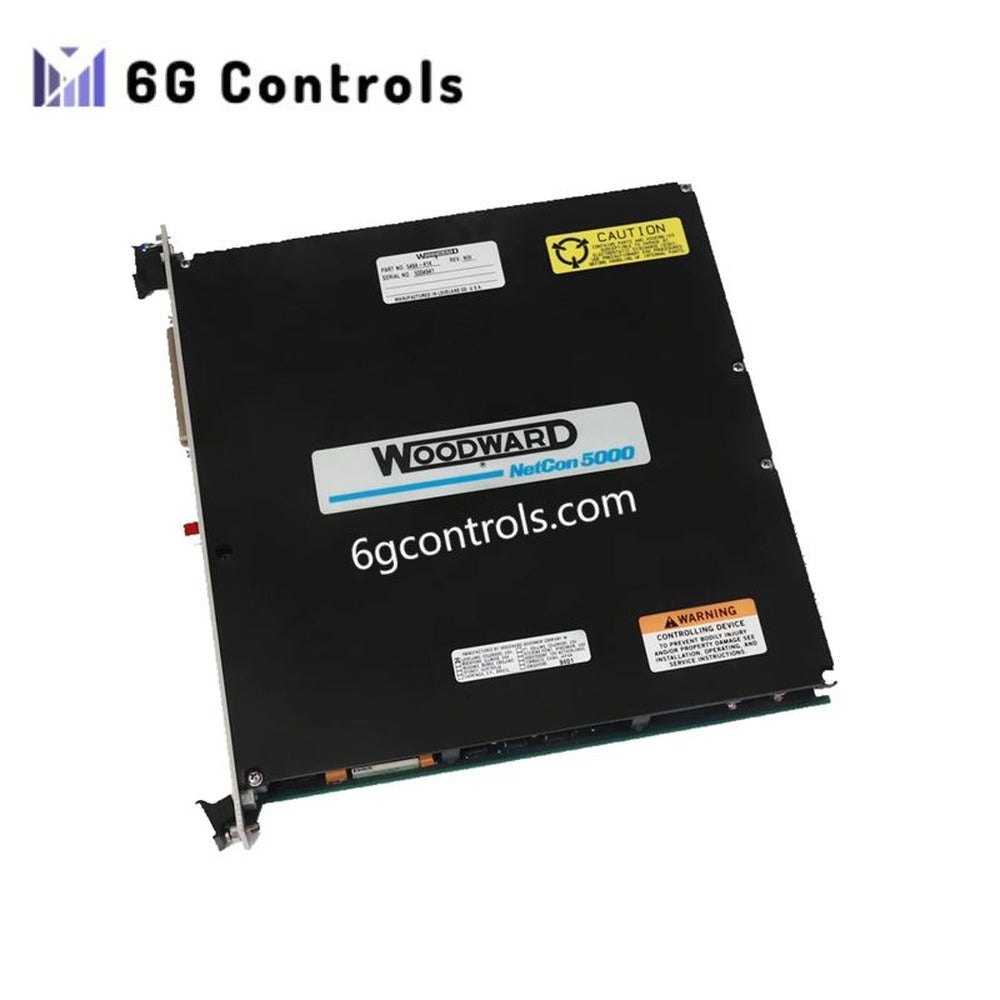

Woodward 5466-1050 High-Density Discrete Input/Output Module

Product Overview

The 5466-1050 High-Density Discrete Input/Output module is a Smart-Plus generation I/O card developed by Woodward Inc for MicroNet and MicroNet Plus digital control platforms. This module is engineered to replace earlier HDD discrete I/O cards while significantly improving diagnostic depth, signal density, and long-term system reliability.

Designed for both new installations and system modernization projects, the 5466-1050 integrates seamlessly into existing MicroNet architectures without requiring changes to field wiring or termination assemblies.

System Compatibility and Architecture

The 5466-1050 operates within MicroNet simplex and redundant control environments and is fully compatible with CPU5200 and P1020-based controllers. It leverages the Smart-Plus kernel, which enhances internal memory management, startup verification, and continuous self-monitoring during runtime.

The module supports direct reuse of installed MicroNet Field Termination Modules, allowing legacy HDD modules to be replaced without rewiring or cabinet modification.

Discrete I/O Capability

This HDDIO module provides high channel density for discrete signal acquisition and actuation, supporting multiple FTM configurations depending on the system layout.

Supported configurations include 48 input / 24 output or 24 input / 12 output discrete arrangements when paired with the appropriate termination hardware.

Typical discrete input characteristics include 24 VDC field operation with defined ON/OFF thresholds optimized for industrial control environments.

Electrical and Signal Characteristics

The 5466-1050 is designed for electrically noisy environments and includes robust isolation to protect both the controller backplane and field devices.

Discrete input channels are galvanically isolated to earth ground and between channels, minimizing cross-talk and improving fault containment during abnormal field conditions.

Mechanical and Environmental Specifications

The module is available in both full-size and narrow chassis formats, supporting flexible cabinet layouts and dense controller installations.

It is manufactured to operate across extended temperature ranges commonly encountered in turbine enclosures and industrial machinery rooms.

Technical Specifications

• Product Type: High-Density Discrete Input/Output Module
• Part Number: 5466-1050
• Control Platform: Woodward MicroNet / MicroNet Plus
• Controller Support: CPU5200, P1020
• Architecture: Smart-Plus kernel
• Discrete Input Voltage: 24 VDC nominal
• OFF State Threshold: < 8 VDC at 1.5 mA
• Isolation:
  • 500 VDC to earth ground
  • 1000 VDC channel-to-channel
• Operating Configuration: Simplex or redundant
• Chassis Options: Full-Size or Narrow
• Storage Temperature: –40 °C to +105 °C
• Pollution Degree: 2
• Dimensions: 22.2 cm × 8.0 cm × 26.6 cm
• Weight: 2.16 kg

Typical Applications

The 5466-1050 is commonly deployed in systems requiring dense discrete signal processing, including gas and steam turbine control, compressor management, reciprocating engine protection, and high-availability industrial automation platforms.

Its backward compatibility makes it particularly well suited for upgrade projects where aging HDD modules must be replaced without disrupting validated control logic.

Replacement and Interchangeability

This module is designed as a direct functional replacement for legacy MicroNet HDD discrete I/O cards, including earlier 5466-series HDD variants. No application software changes are typically required when upgrading to the 5466-1050, provided system firmware meets the minimum revision level.

FAQ

Can the 5466-1050 be installed in existing MicroNet cabinets? Yes. The module supports existing chassis formats and connects to standard MicroNet FTMs without wiring changes.

Is firmware or application modification required? In most cases, no. Systems running supported Coder versions can recognize the module automatically.

Does this module support redundant systems? Yes. The 5466-1050 is qualified for use in redundant MicroNet architectures.
