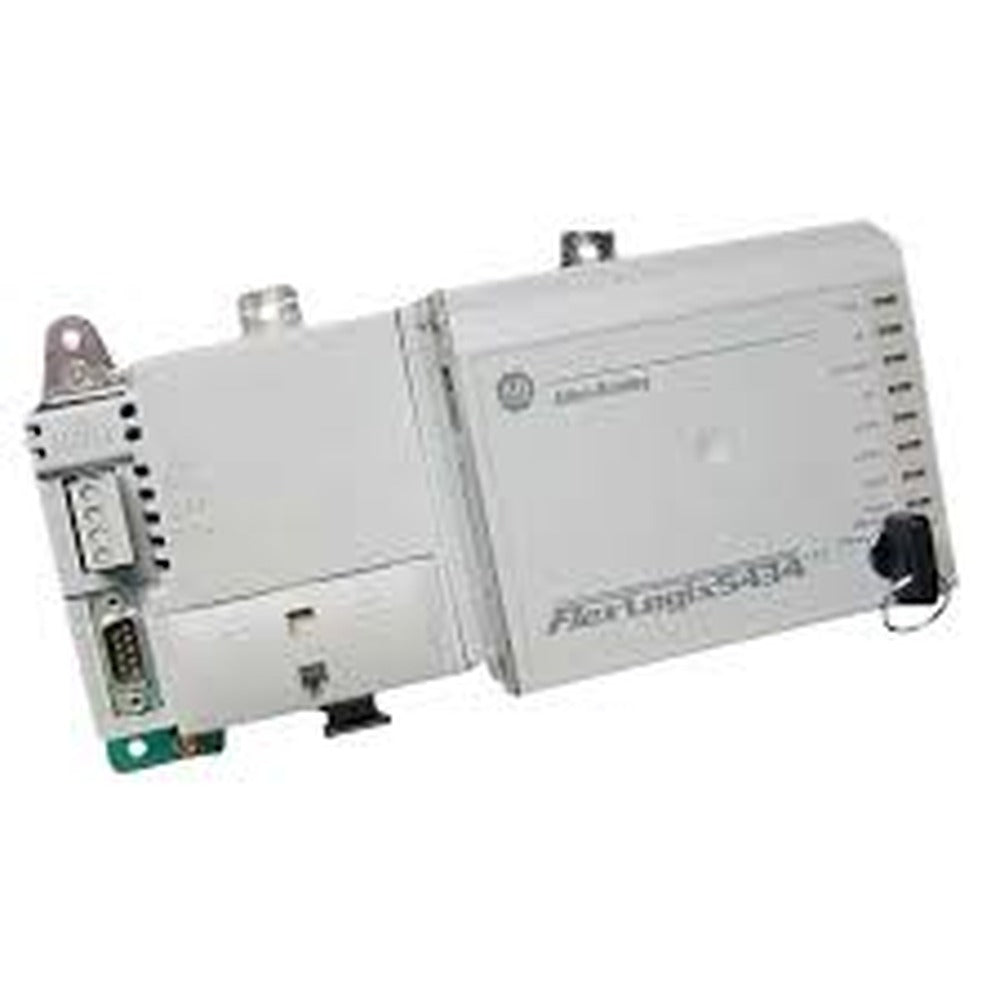

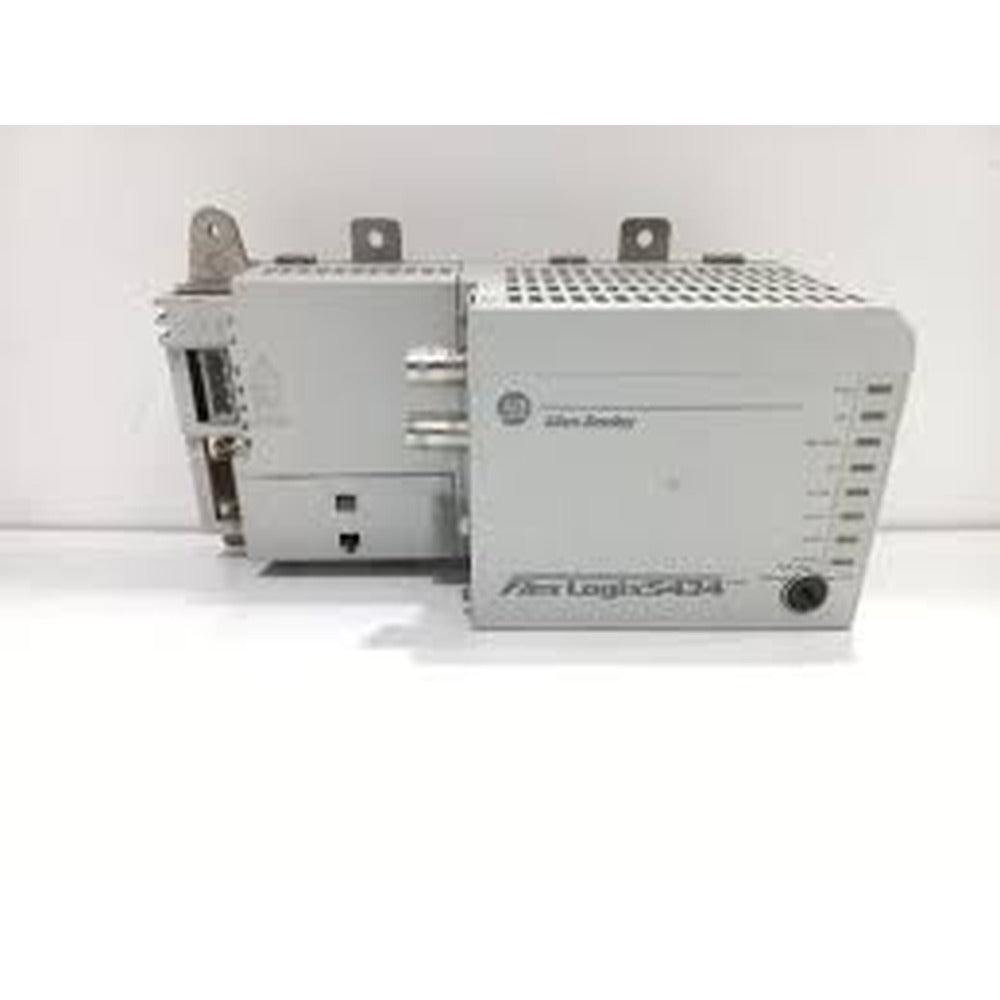

Allen-Bradley 1794-L34 FLEX I/O Modules in Stock

19 in stock

Manufacturer: Allen Bradley
Product No.: 1794-L34
Country of origin: USA
Product Type: FLEX I/O Module
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.75 kg
Dimensions: 220 x 120 x 60 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Overview

The Allen-Bradley 1794-L34 is a 16-channel FLEX I/O Module for use with the ControlLogix system. It is a high-performance module that can be used in a variety of applications, including motion control, machine control, and process control.

Features

16 channels of digital input
High-speed data capture
On-board signal conditioning
Fault detection and isolation
Easy installation and maintenance

Technical Specifications

User Memory: 512 KBytes
Input Voltage Rating: 24V dc
Input Voltage Range: 19.2V to 31.2V dc (includes 5% ac ripple)
Isolation Voltage: 30V dc
Input Current (1): 1.33A maximum at 19.2V dc
0.85A maximum at 24V dc
0.39A maximum at 19.2V dc
0.25A maximum at 24V dc
Power Dissipation (2): 25.5W maximum at 19.2V
20.4W maximum at 24V dc
7.5W maximum at 19.2V
6.0W maximum at 24V dc
Backplane (FLEXBUS) Current Output: 653mA maximum @ 5.1V dc
Thermal Dissipation: 87BTU/hour @ 19.2V
25.6BTU/hour @ 19.2V
Processor: 32-bit 100 MHz RISC
Instruction Set: Allen-Bradley SLC 500 PLC instruction set
Memory: 512 KBytes user memory
Inputs: 24 digital inputs, 16 analog inputs
Outputs: 24 digital outputs, 16 analog outputs
Communications: Modbus RTU, Modbus TCP/IP, Ethernet/IP, DeviceNet, CIP

For more information, please read online or download the PDF: 1794-in002_-en-p
