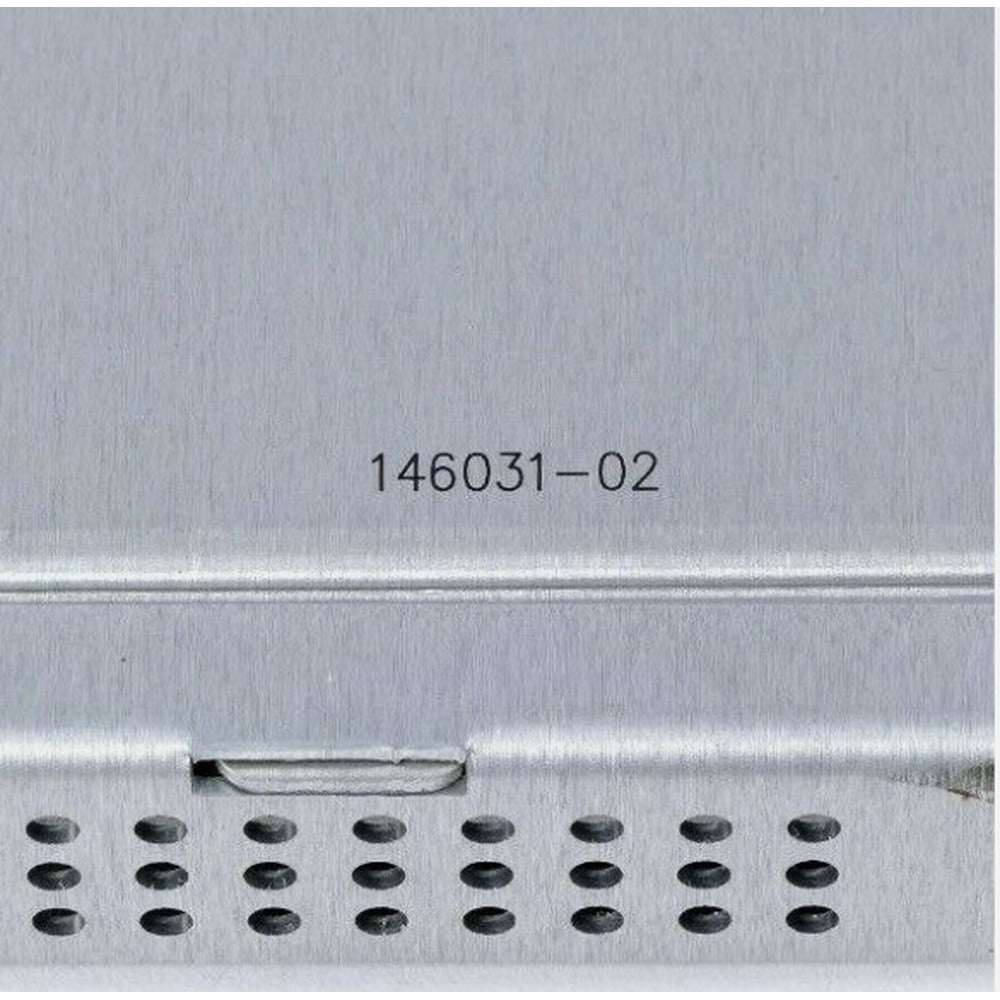

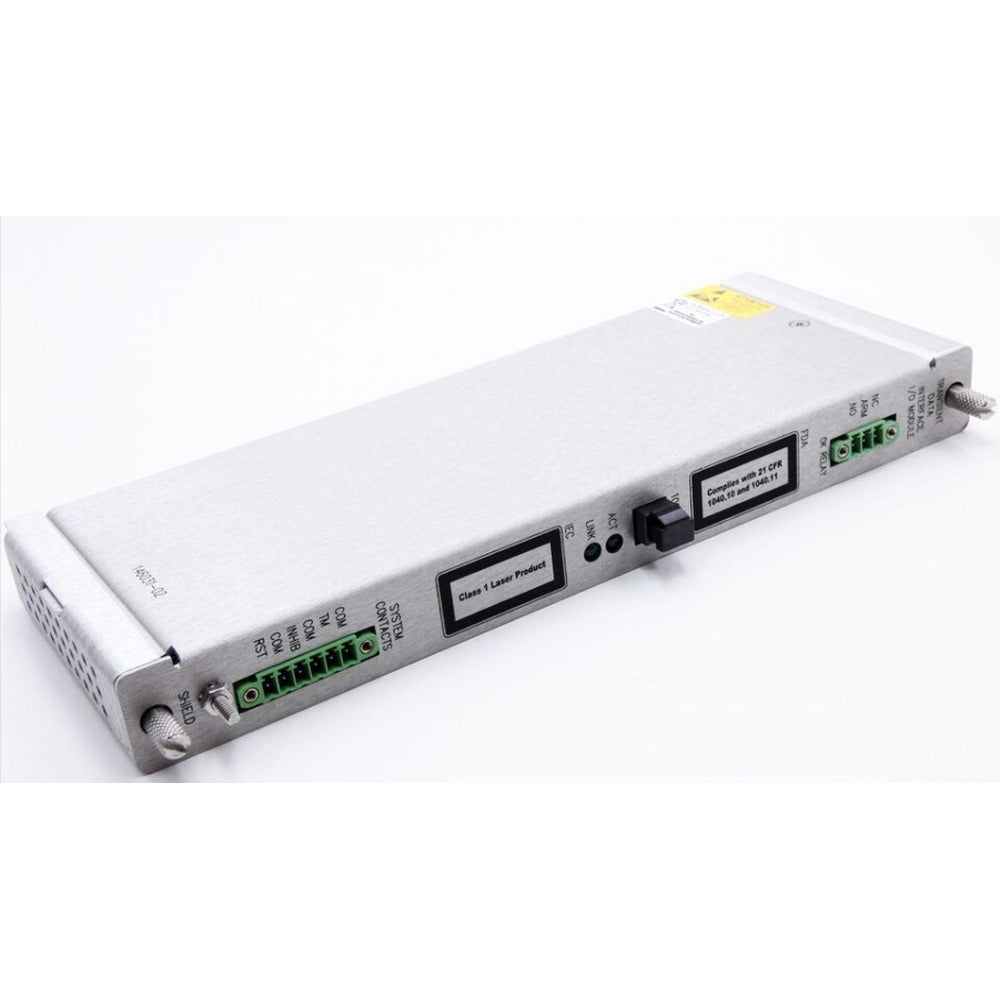

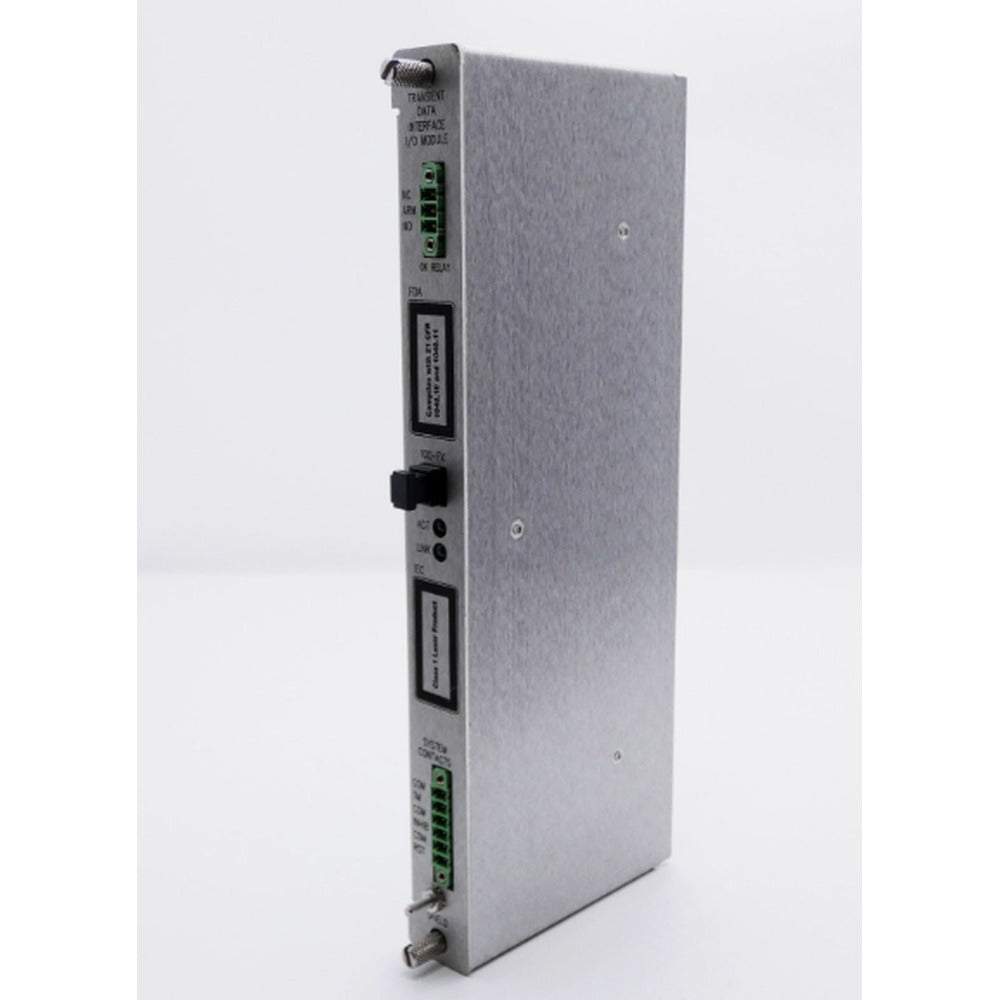

BENTLY NEVADA 146031-02 100Base-FX (Fiber Optic) I/O Module

13 in stock

Manufacturer: Bently Nevada
Product No.: 146031-02
Country of origin: USA
Product Type: (Fiber Optic) I/O Module
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.2 kg
Dimensions: 241.3 mm x 24.4 mm x 99.1 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Ethernet I/O - 100 Base-FX

Communications: Ethernet, 100Base-FX Fiber Optic, full duplex multimode. Conforms to IEEE802.3u.

Protocol Supported: BN Host Protocol and BN TDI Protocol using Ethernet TCP/IP.

Connection: MT-RJ Male Fiber Optic connector for 100 Base-FX cabling.

Cable Length: 2000 meters (6560 feet) maximum, multimode fiber optic cable.

Note: The 3500/22M has an MT-RJ Male connector on the unit for Fiber Optic 100 Base-FX cabling, so you MUST use an MT-RJ Female connector on the fiber optic cable for proper connectivity.

Environmental Limits

TDI Module, 10Base-T / 100Base-TX I/O, and 100Base-FX I/O

Operating Temperature: -30°C to +65°C (-22°F to +149°F)

Storage Temperature: -40°C to +85°C (-40°F to +185°F)

Humidity: 95%, non-condensing

Battery Life

Powered TDI: 38 years @ 50°C (122°F)

Un-powered TDI: 12 years @ 50°C (122°F)

Specifications

Inputs

Power Consumption: 10.5 Watts

Data

Front panel: 115.2 kbaud maximum RS232 serial communications

100Base-FX I/O: 100Base-FX Fiber-Optic Ethernet

OK Relay: Rated to 5A @ 24 Vdc/120 Vac, 120 Watts/600 VA Switched Power.

Normally closed contacts: Arc suppressors are provided.

Learn more and download the PDF file: 3500-22-01-01-CN
