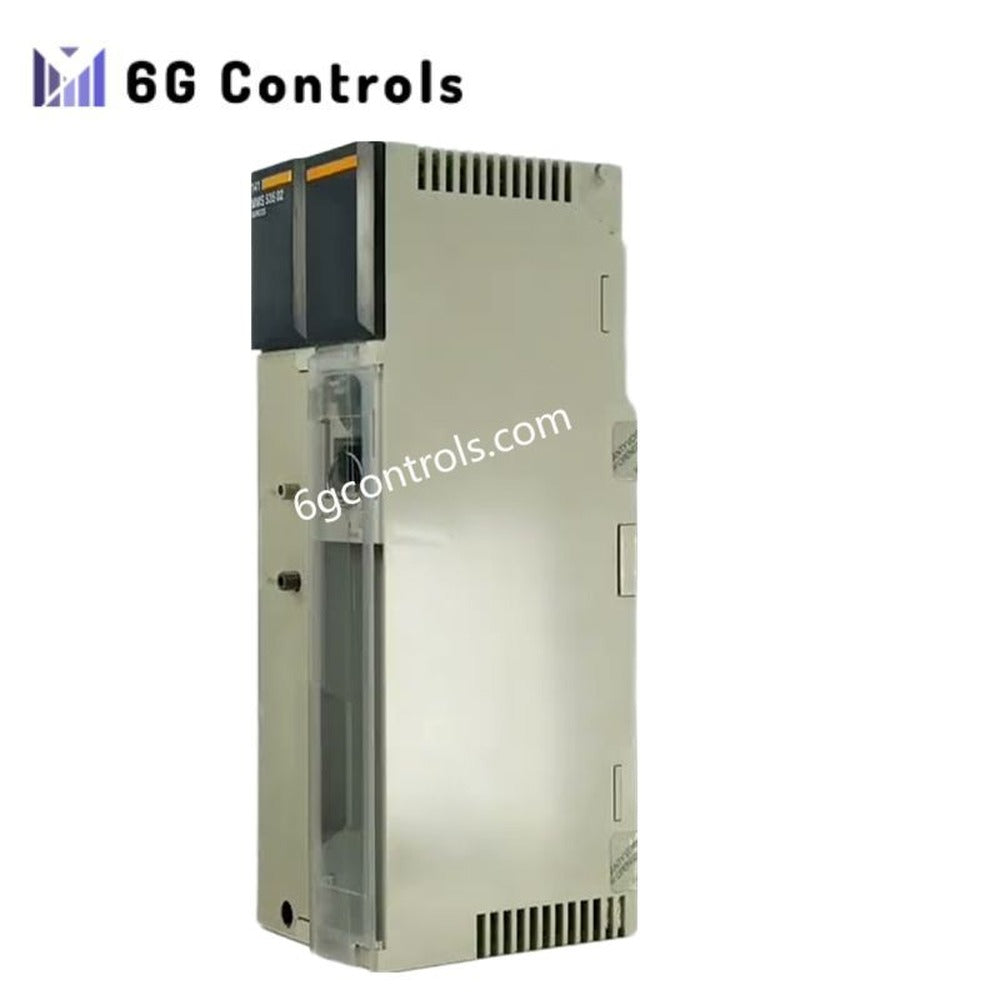

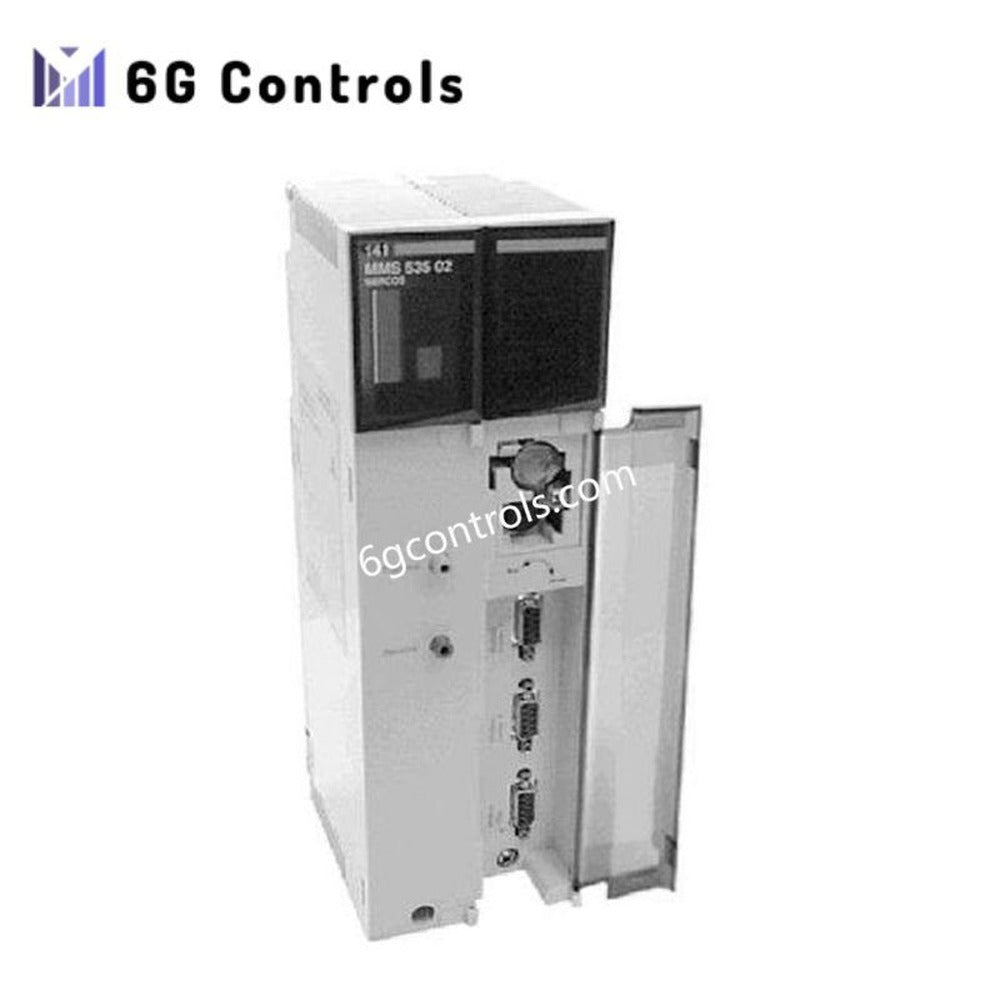

Schneider Electric 141MMS53502 SERCOS Multi-Axis Motion Controller

Overview

The Schneider Electric 141MMS53502 is a dedicated SERCOS motion control module developed for the Modicon Quantum PLC platform. It is engineered to execute deterministic, real-time coordination of multiple servo axes through fiber-optic SERCOS communication. By combining an embedded PC architecture with a high-speed DX5 processor, this module supports complex motion tasks where precision, synchronization, and cycle determinism are critical.

This controller functions as a Network Option Module (NOM) and integrates directly into the Quantum backplane, extending the PLC system with advanced multi-axis motion capability without requiring external controllers.

Core Functional Capabilities

• Real-time SERCOS fiber-optic interface for servo drive communication
• Precise synchronization of multiple motion axes with deterministic cycle timing
• Embedded PC-compatible architecture optimized for motion processing
• Designed to handle large motion datasets and high axis counts
• Seamless integration into Modicon Quantum control systems

Processor and System Architecture

The 141MMS53502 is built around an embedded 586 DX5 processor operating at 133 MHz. This architecture enables fast execution of motion algorithms and real-time coordination tasks. The module operates under MS ROM-DOS 5.0, ensuring predictable task scheduling and deterministic response required for industrial motion control.

Expanded onboard memory allows the controller to manage extensive motion programs, interpolation tables, and axis parameters, making it suitable for demanding, data-intensive applications.

Communication and Motion Control

SERCOS (Serial Real-Time Communication System) provides high-speed, noise-resistant fiber-optic communication between the controller and servo drives. This ensures:

• Fixed and repeatable communication cycles
• Accurate position, velocity, and torque synchronization
• Immunity to electrical interference in harsh industrial environments

The deterministic nature of SERCOS allows coordinated motion across multiple axes with minimal jitter and high repeatability.

Mechanical and Installation Characteristics

• Quantum rack Network Option Module
• Occupies two adjacent slots on the Quantum backplane
• Rugged industrial enclosure consistent with Quantum system standards
• ​Weight: 2.05 lb

The module is designed for direct rack installation, eliminating the need for additional cabling or external motion hardware.

Technical Specifications

• Processor: 586 DX5, 133 MHz
• Operating System: MS ROM-DOS 5.0 (ROM-based)
• Motion Interface: SERCOS fiber-optic
• Rack Integration: Modicon Quantum backplane
• Slot Usage: 2 slots
• Memory: Expanded PC-compatible memory architecture
• Deterministic Control: Yes

Typical Application Areas

• High-speed packaging and labeling machinery
• Coordinated robotic motion systems
• CNC and machine tool motion control
• Material handling and automated assembly equipment
• Multi-axis positioning systems requiring tight synchronization

Frequently Asked Questions

Q: Is the 141MMS53502 a standalone motion controller? A: No. It operates as a motion control module within a Modicon Quantum PLC system and relies on the Quantum backplane for integration.

Q: What type of drives are supported? A: Servo drives that support the SERCOS fiber-optic communication protocol.

Q: Can it manage high axis counts? A: Yes. The expanded memory and DX5 processor are specifically intended for large-axis and data-heavy motion applications.
