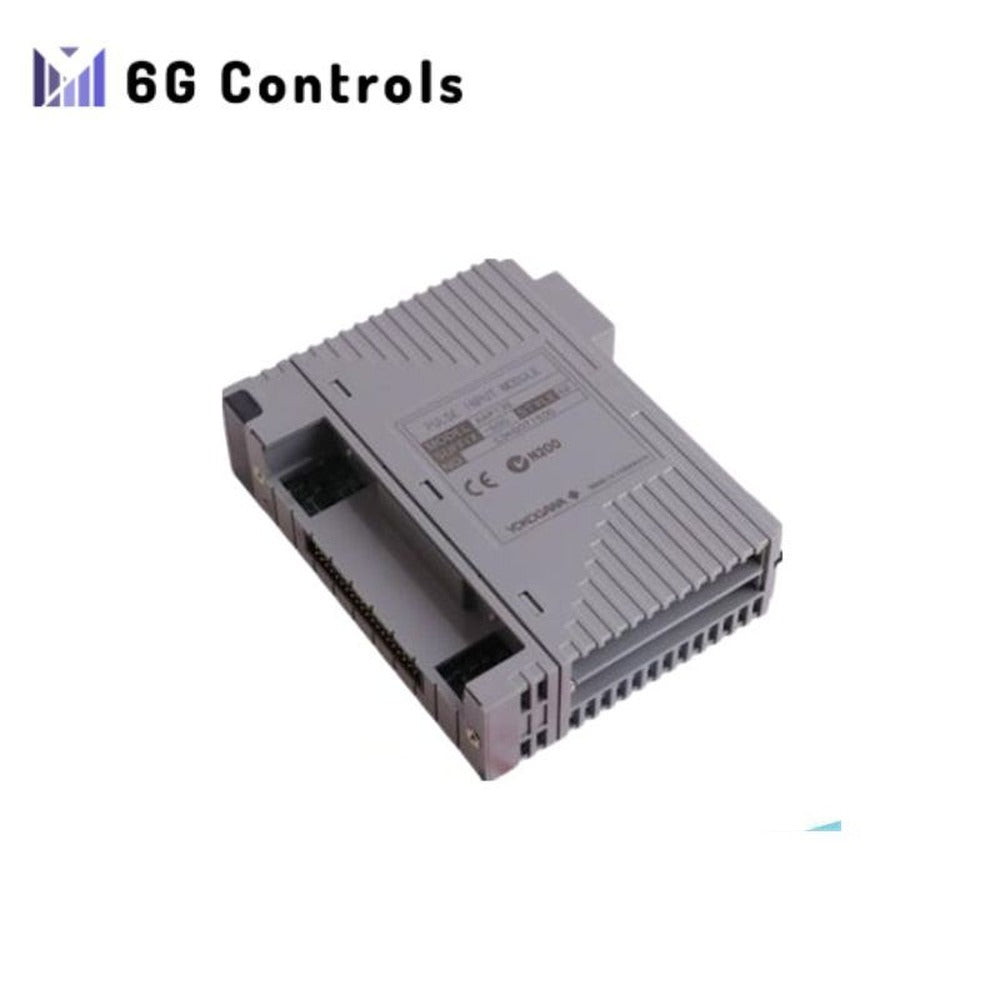

Yokogawa AAV144-S00 Analog Input Module High Quality

Overview

The Yokogawa AAV144-S00 is a specialized 16-channel analog input module designed for use in Yokogawa Distributed Control Systems (DCS). It efficiently interfaces with field instruments, such as pressure transmitters, temperature sensors, and flow meters, to acquire and convert analog signals into a digital format for processing by the control system. The module features isolated channels and is ideal for applications requiring high-accuracy signal conversion with fast data update capabilities.

Technical Specifications

• Number of input channels: 16, isolated
• Input signal range: 1 to 5 V, -10 to +10 V
• Switching input signals: Input signals can be set together for CH1 to CH16
• Allowable input voltage: ±30 V
• Withstanding isolated voltage: 1500 V AC for 1 minute (*1) between input and system
• Input resistance:
  • Power ON: 1 MΩ
  • Power OFF: 200 kΩ
• Accuracy:
  • ±4 mV (typical)
  • ±20 mV (maximum)
• Data update period: 10 ms
• Drift due to ambient temperature change:
  • ±4 mV/10°C (typical)
  • ±20 mV/10°C (maximum)
• Maximum current consumption: 500 mA (5 V DC)
• Weight: 0.2 kg

External Communication

• Pressure clamp terminal
• MIL connector cable
• Dedicated cable (KS1)
